B
DKR-PRO

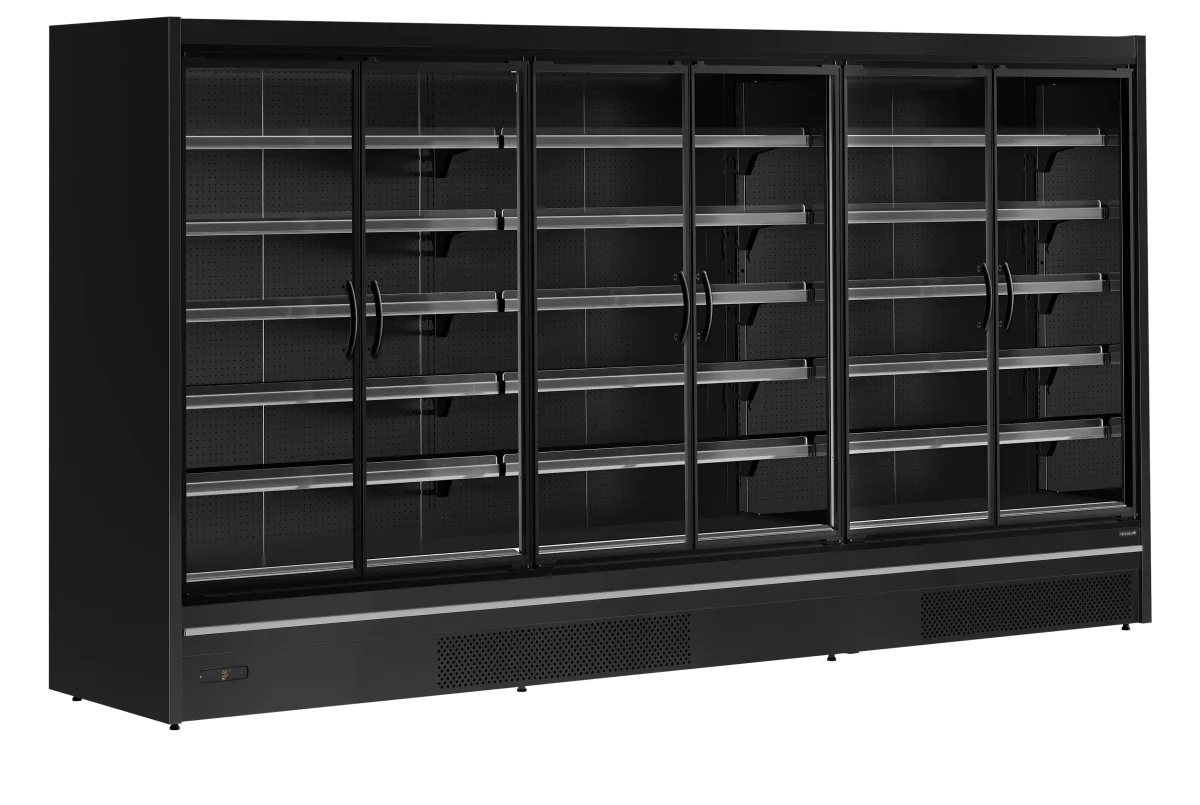

MDCB3750HB
Multideck
Item no. 71870
EAN 5708181762032
- Tilting function for better product display
- Can be multiplexed with kit (POA)
- Internal vertical and horizontal LED light
- Stainless steel bumper bars
- Ticket strip and acrylic front riser as standard
- Temperature Class 3M1
- Can be multiplexed - Create uninterrupted continuous line

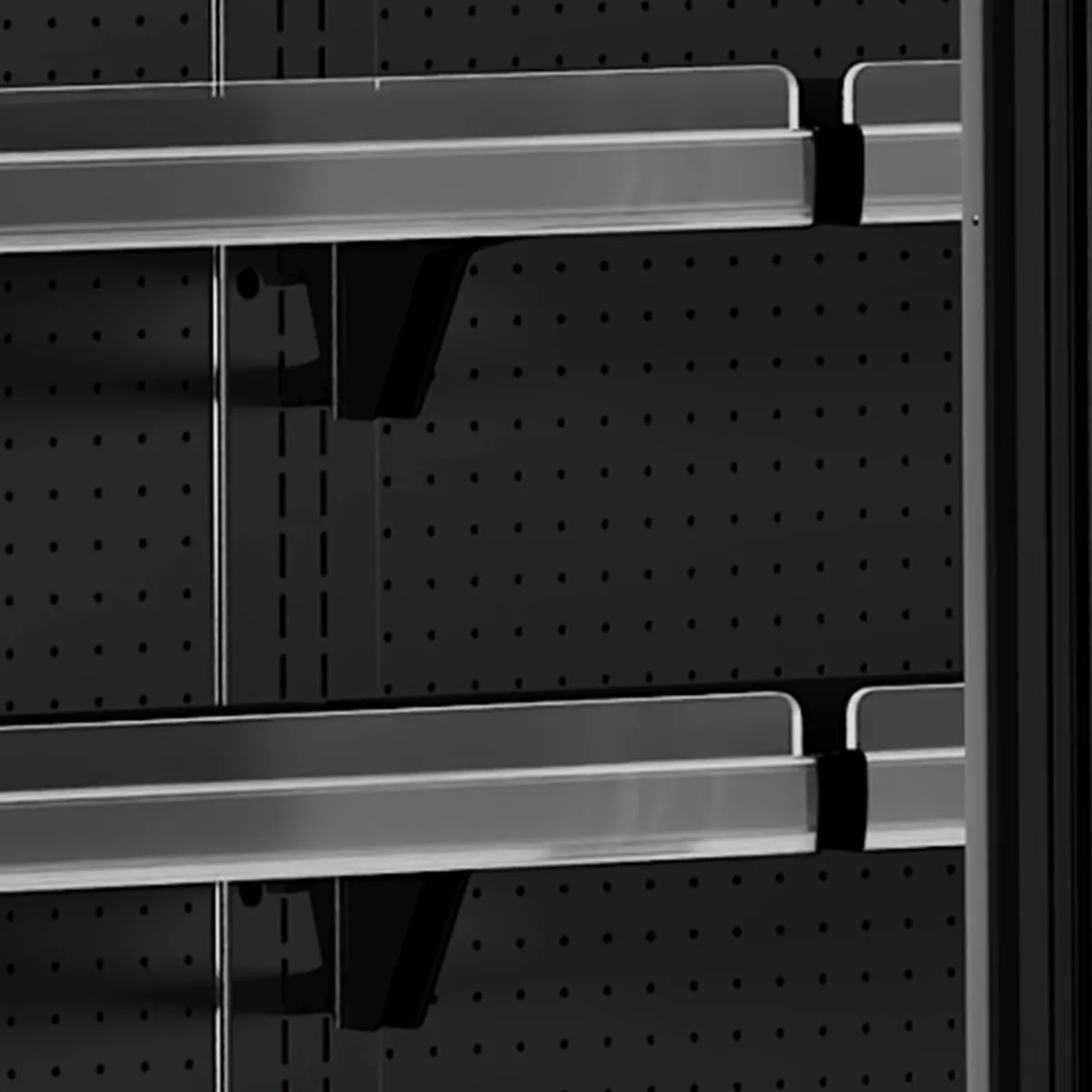

- Adjustable extra deep shelves to maximise capacity
- Energy saving variable speed compressor
- EU Energy Class B
- Solid 40 mm endwalls with mirrored interior

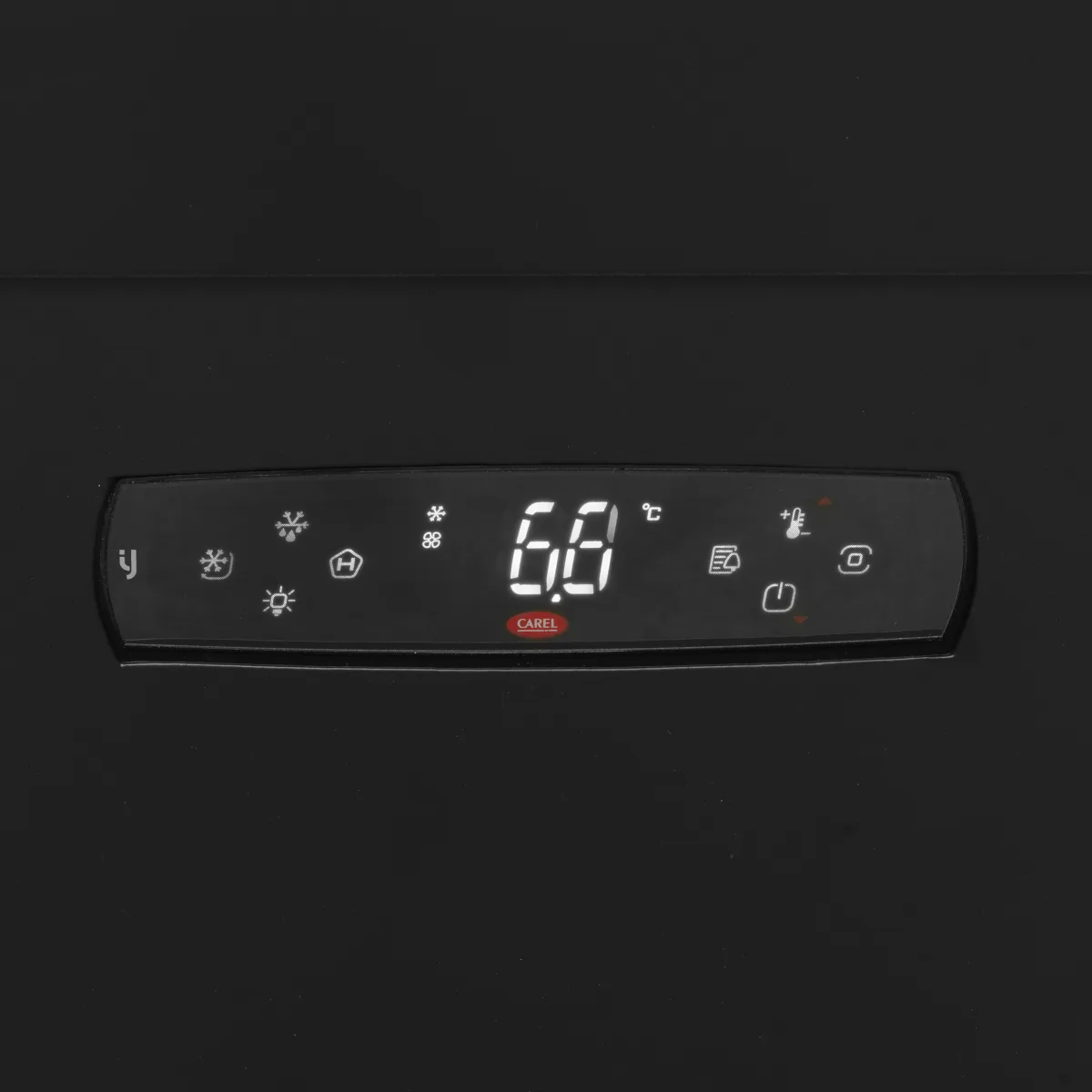

- Controller with Bluetooth and NFC connectivity
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)3830 x 1005 x 2100 mm
Volume gross / net3686 / 3285 l l
Temperature-1 to +5 °C
Weight gross / net800 / 760 kg kg
Energy classB
Specifications
| Gross / Net Weight | 800 / 760 kg |
|---|---|
| 40ft Container Load | 6 pcs |
| GTIN / EAN | 5708181762032 |
| Product Group - Delivery services | Group 3 |
| Gross / Net Volume | 3686 / 3285 l |
| Total Display Area | 5.4 m² |
| Temperature Range | -1 to +5 °C |
| Climate Class | 3 |
| Insulation Density | 40 kg/m³ |
| Exterior Finish | Black RAL9005 |
| Interior Finish | Black (RAL9005) |
| Door Number & Type | 6 hinged glass door |
| Shelves Number & Type | 15 adjustable |
| Shelf Color | Black |
| Shelf Dimensions | 1250x600 |
| Max load on Shelves | 120 kg/m² |
| Feet / Legs | Adjustable Feet |
| Interior Light | Yes |
| Type of Controller | Electronic |
| Type of Defrost | Automatic |
| Refrigerant | R290 |
| Refrigerant Charge | 2x150 g |
| Thermometer | Yes |
| Energy Class | B |
| EPREL No | 2651578 |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 11.61 kWh/24h |
| Annual Energy Consumption | 4237.65 kWh/year |
| EEI | 15.8 % |
| Input Power | 1700 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 59 dB(A) |
| External Dimension (WxDxH) | 3830 x 1005 x 2100 mm |
| Internal Dimension (WxDxH) | 3750 x 650 x 1512 mm |
| Packed Dimension (WxDxH) | 3950 x 1105 x 2400 mm |

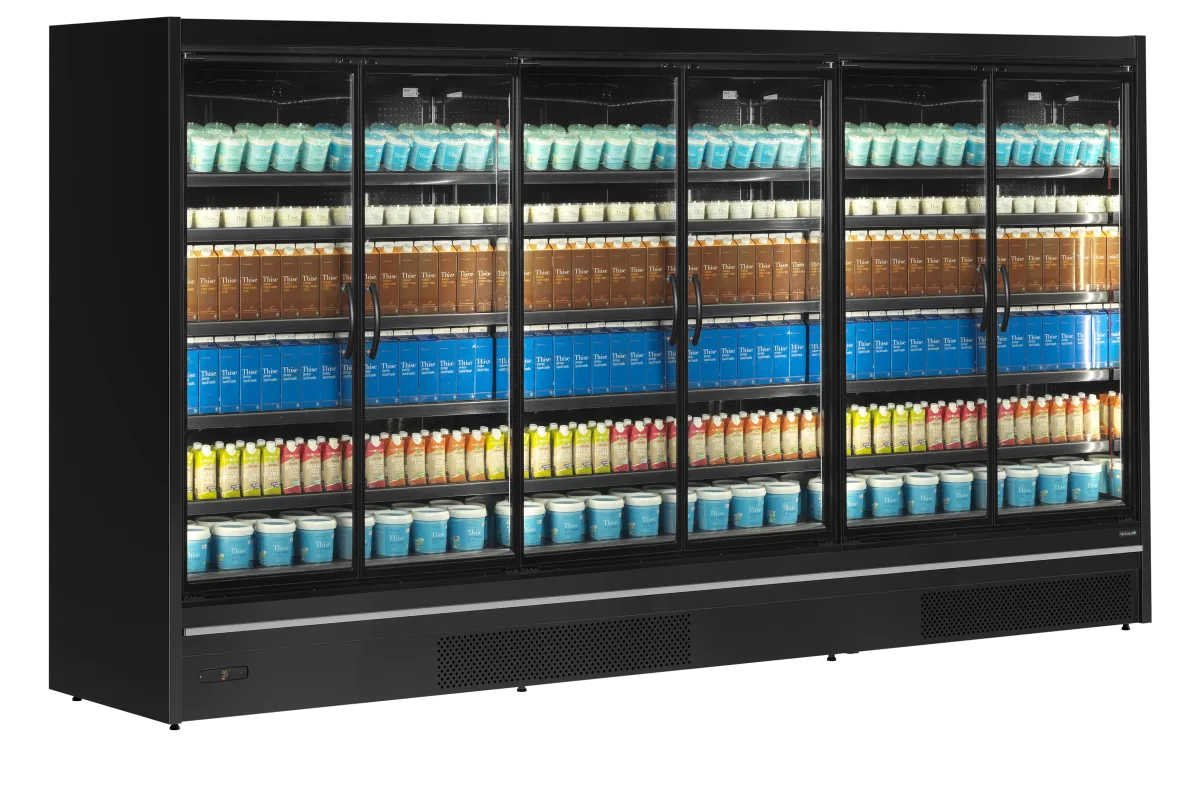

Multideck with deep shelves for maximum capacity
The MDCB range of multideck coolers is designed for retail settings. It has temperature class 3M1, while boasting of a low-energy and low-noise cooling system. It offers great storage and display space with glass doors, adjustable shelves that can be tilted for a better product presentation, as well as vertical and horizontal LED lighting. The MDCB is available in several sizes.
