DKR-PRO
PDA3-CTF120B-1

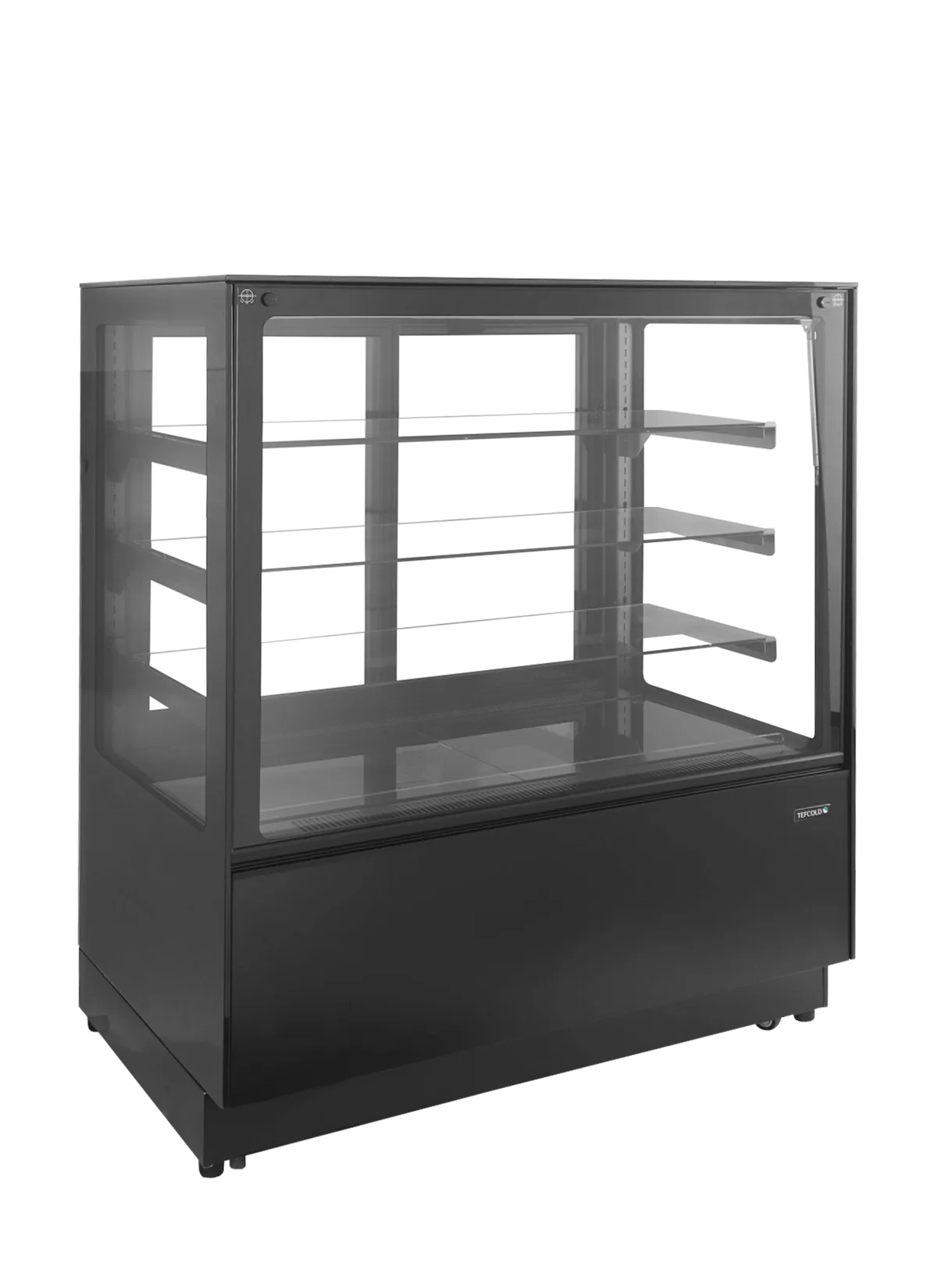

Chilled Display Cabinet
Item no. 69378
EAN 5708181756284
- Flat glass top

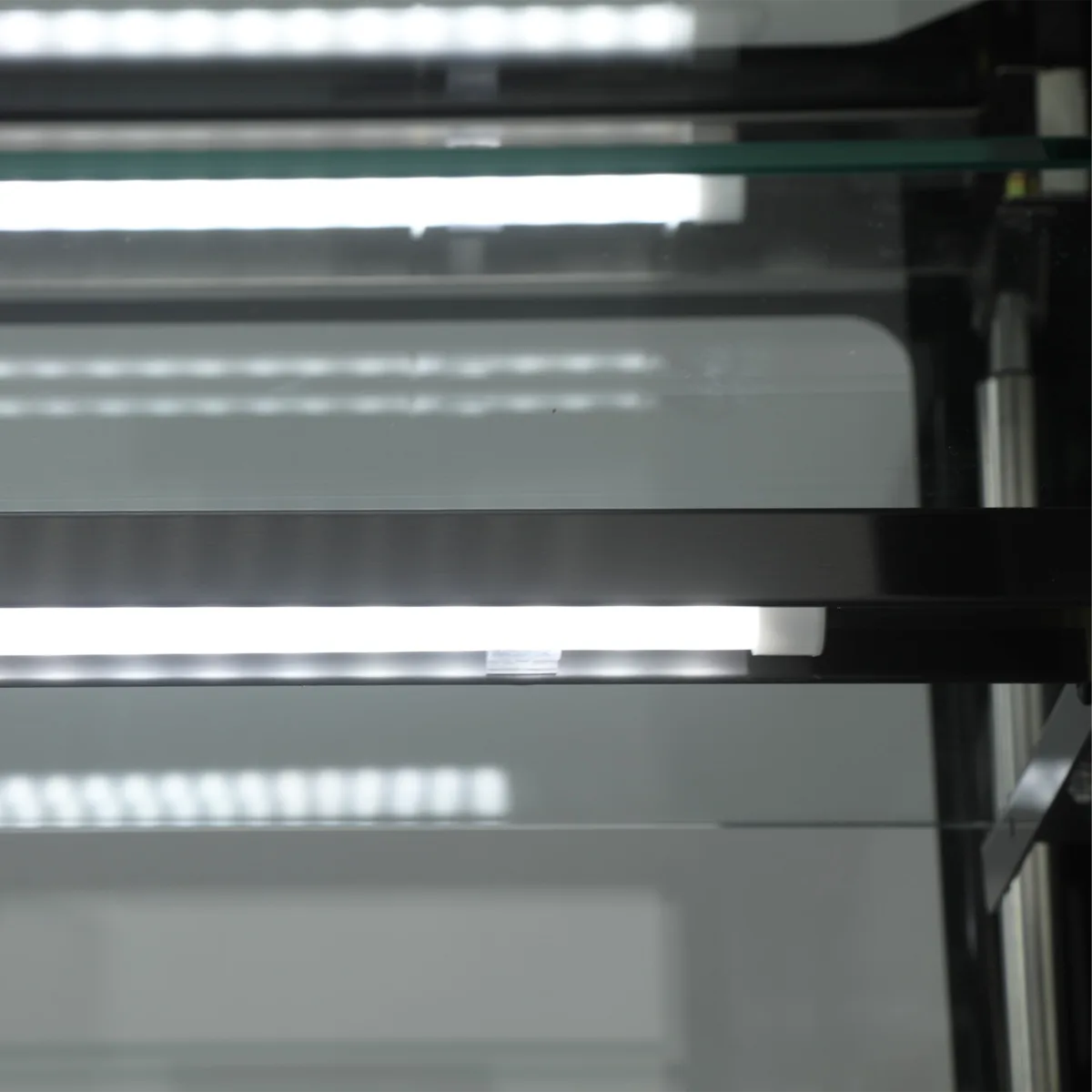

- LED light under each shelf
- Front glass hinges forward if required
- Temperature Class 3M1
- Excellent product visibility
- Glass rear sliding doors
- Digital controller and temperature display

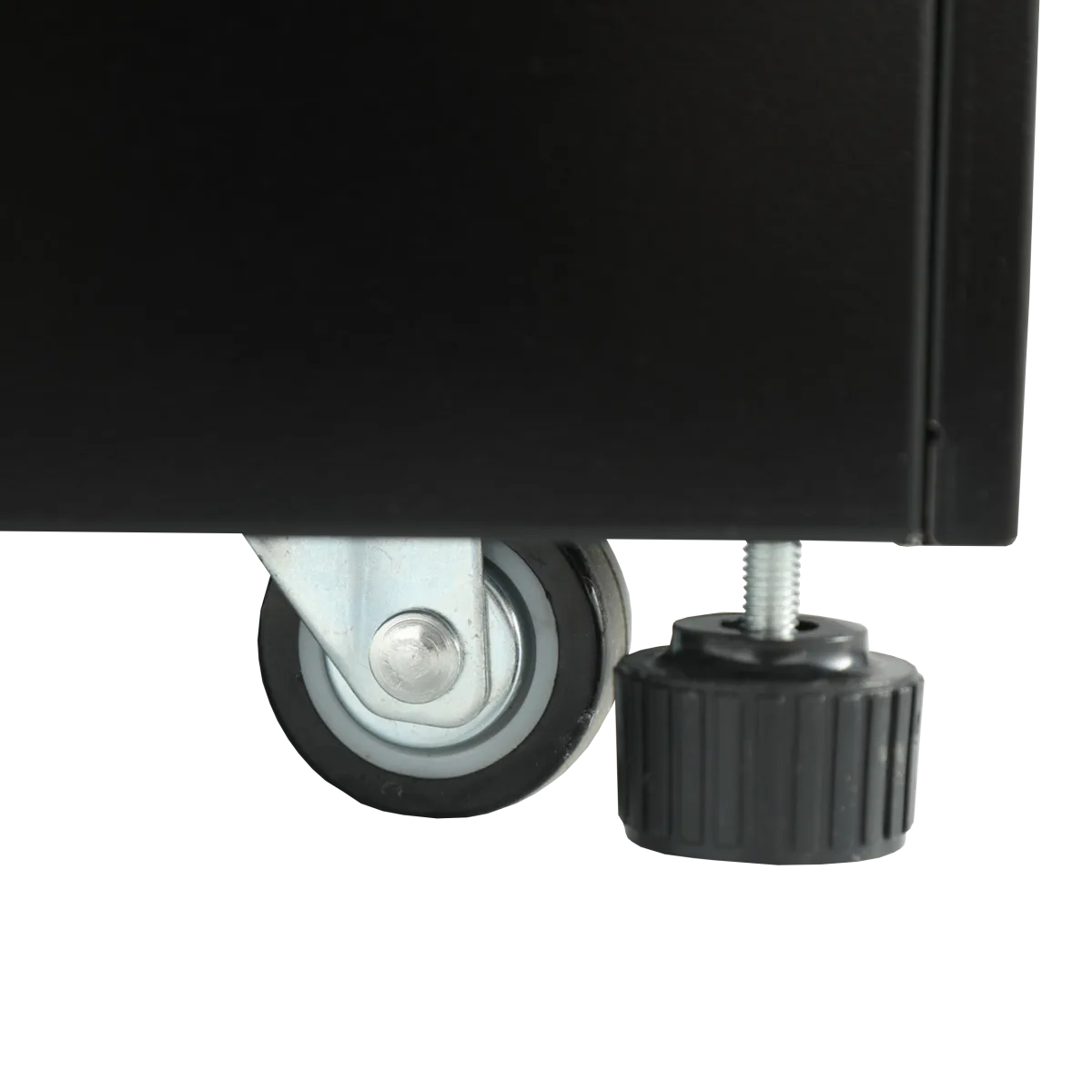

- Castors
- Easy to clean condenser filter
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1200 x 750 x 1360 mm
Volume gross / net530 / 338 l l
Temperature-1 to +5 °C
Weight gross / net285 / 213 kg kg
Energy classB
Specifications
| Gross / Net Weight | 285 / 213 kg |
|---|---|
| 40ft Container Load | 23 pcs |
| GTIN / EAN | 5708181756284 |
| Product Group - Delivery services | Group 4 |
| Gross / Net Volume | 530 / 338 l |
| Total Display Area | 2.43 m² |
| Temperature Range | -1 to +5 °C |
| Climate Class | 3 |
| Exterior Finish | Black/Glass |
| Interior Finish | Stainless steel / Glass |
| Door Number & Type | 2 sliding glass doors |
| Door Reversible | Yes |
| Shelves Number & Type | 3 glass shelves + base |
| Shelf Dimensions | 1116 x 400 mm |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Defrost | Automatic |
| Refrigerant Charge | 115 g |
| Refrigerant | R290 |
| Thermometer | Yes |
| Energy Class | B |
| EPREL No | 2427352 |
| Annual Energy Consumption | 2091 kWh/year |
| Energy Consumption | 5.73 kWh/24h |
| EEI | 14.5 % |
| Input Power | 610 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 65 dB(A) |
| External Dimension (WxDxH) | 1200 x 750 x 1360 mm |
| Internal Dimension (WxDxH) | 1146 x 600 x 808 mm |
| Packed Dimension (WxDxH) | 1280 x 820 x 1475 mm |
| Castors | 4 wheels |

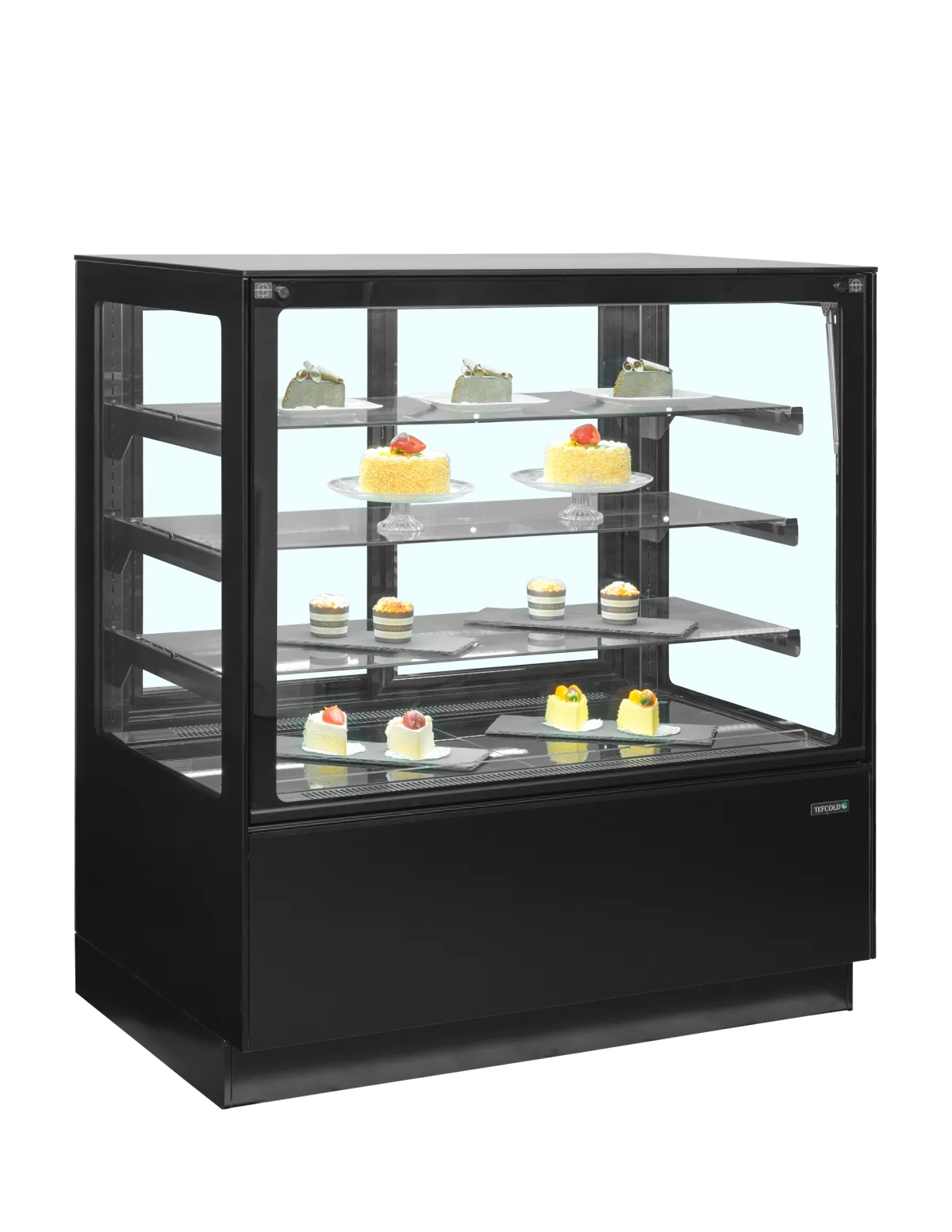

Refrigerated display counter with flat glass structure
The PDA3-CTF range of chilled display counters has a flat glass structure, where the front hinges forward for easy cleaning. The premium design is made with high quality materials and comes in a range of sizes. It offers great features such as glass shelves with LED lighting underneath, anti-mist front glass, and an efficient ventilated cooling system.
