DKR-PRO
UPD200

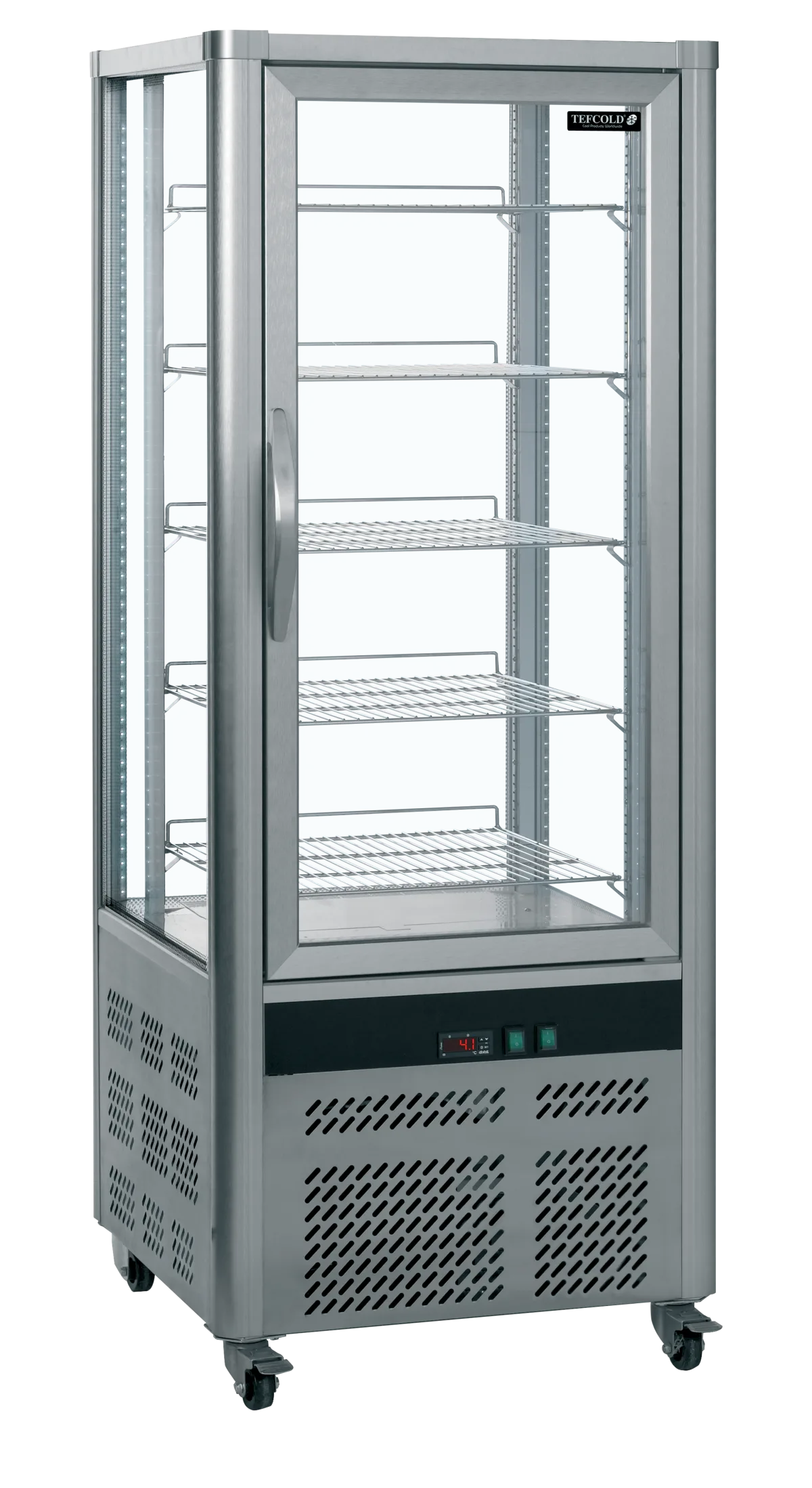

Refrigerated Glass Display
Item no. 20062
EAN 5708181361716
- Fully automatic
- Fan assisted cooling

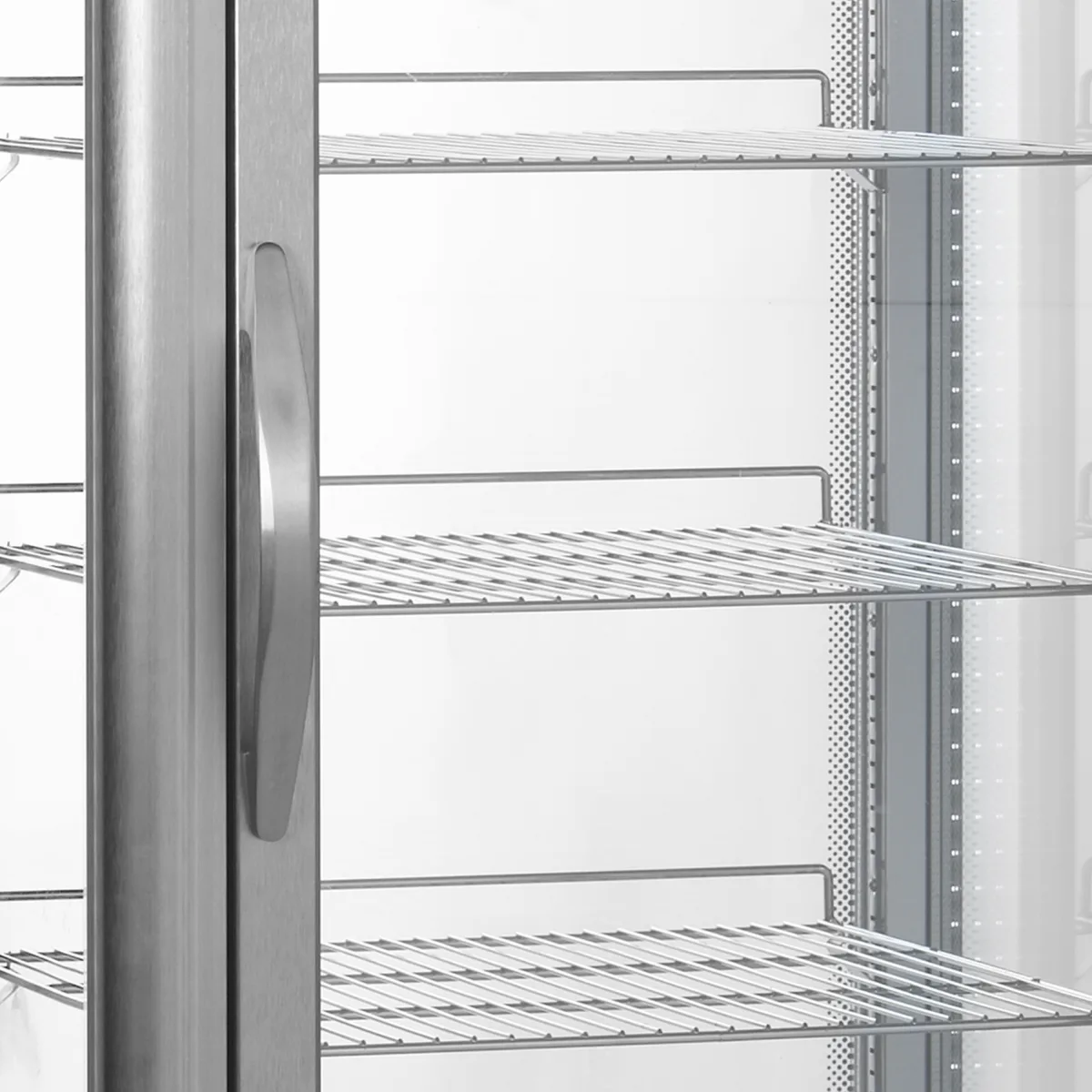

- Adjustable shelves

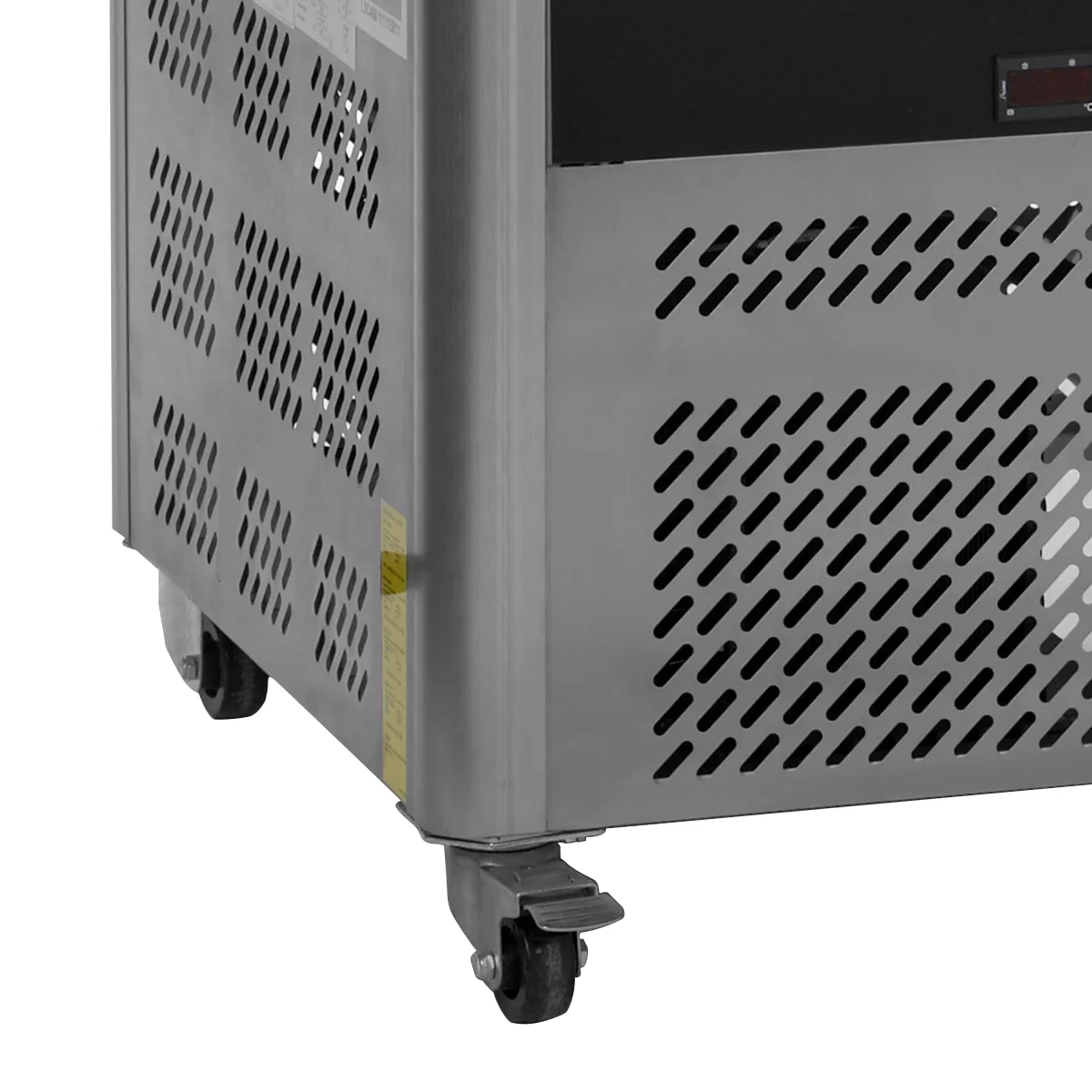

- Castors, 2 lockable
- LED interior light with switch
- Digital controller and temperature display
- Replaceable door gasket
- Double glazed glass
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)706 x 706 x 1800 mm
Volume gross / net468 / 425 l l
Temperature+2 to +12 °C
Weight gross / net160 / 140 kg kg
Energy classB
Specifications
| Gross / Net Weight | 160 / 140 kg |
|---|---|
| Gross / Net Volume | 468 / 425 l |
| Total Display Area | 2.29 m² |
| Temperature Range | +2 to +12 °C |
| Climate Class | 4 |
| Exterior Finish | Anodised Aluminium |
| Door Number & Type | 1 hinged glass door |
| Door Reversible | No |
| Shelves Number & Type | 5 wire shelves white |
| Shelf Color | White |
| Shelf Dimensions | 511*486 |
| Castors | 4 wheels, 2 with brake |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Defrost | Automatic |
| Refrigerant | R290 |
| Refrigerant Charge | 130 g |
| Thermometer | Yes |
| Energy Class | B |
| EPREL No | 494291 |
| Max Ambient | +30°C, 55% RH |
| Energy Consumption | 33 kWh/24h |
| Annual Energy Consumption | 1822 kWh/year |
| EEI | 18.5 % |
| Power | 13 Amp |
| Input Power | 255 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 46 dB(A) |
| External Dimension (WxDxH) | 706 x 706 x 1800 mm |
| Internal Dimension (WxDxH) | 638 x 638 x 1180 mm |
| Packed Dimension (WxDxH) | 760 x 820 x 1930 mm |
| 40ft Container Load | 45 pcs |
| GTIN / EAN | 5708181361716 |
| Product Group - Delivery services | Group 2 |
Vertical refrigerated glass display
The UPD range of refrigerated display cases has a vertical design with double glazed glass on all four sides. It comes with adjustable wire shelves for flexibility. LED lighting illuminates the content, while a ventilated cooling system keeps it cool and fresh. The UPD range comes in several sizes and finishes to meet any need.
