E
DKR-PRO
PDA3-CTF150B-1

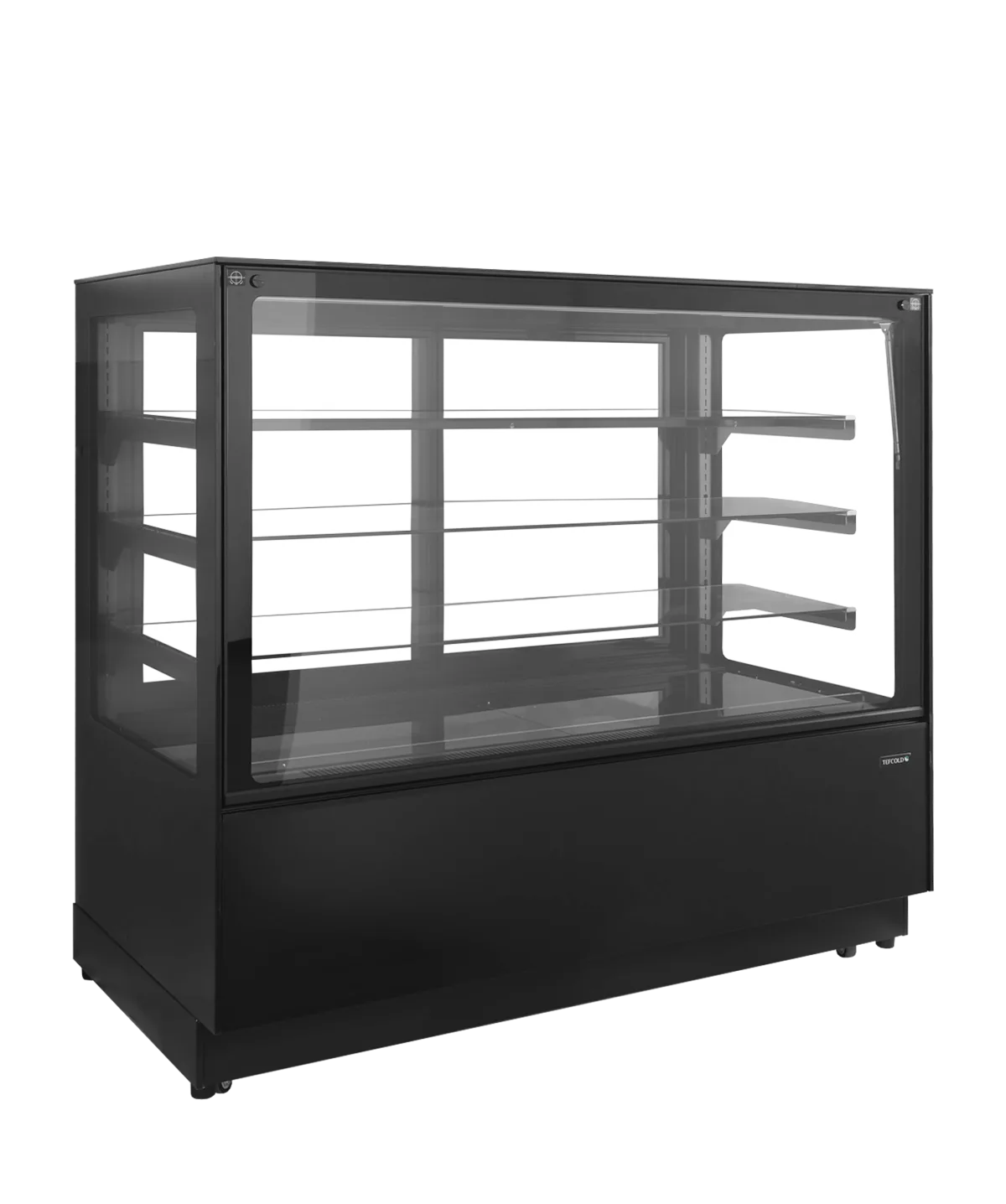

Chilled Display Cabinet
Item no. 69379
EAN 5708181756307
- Flat glass top

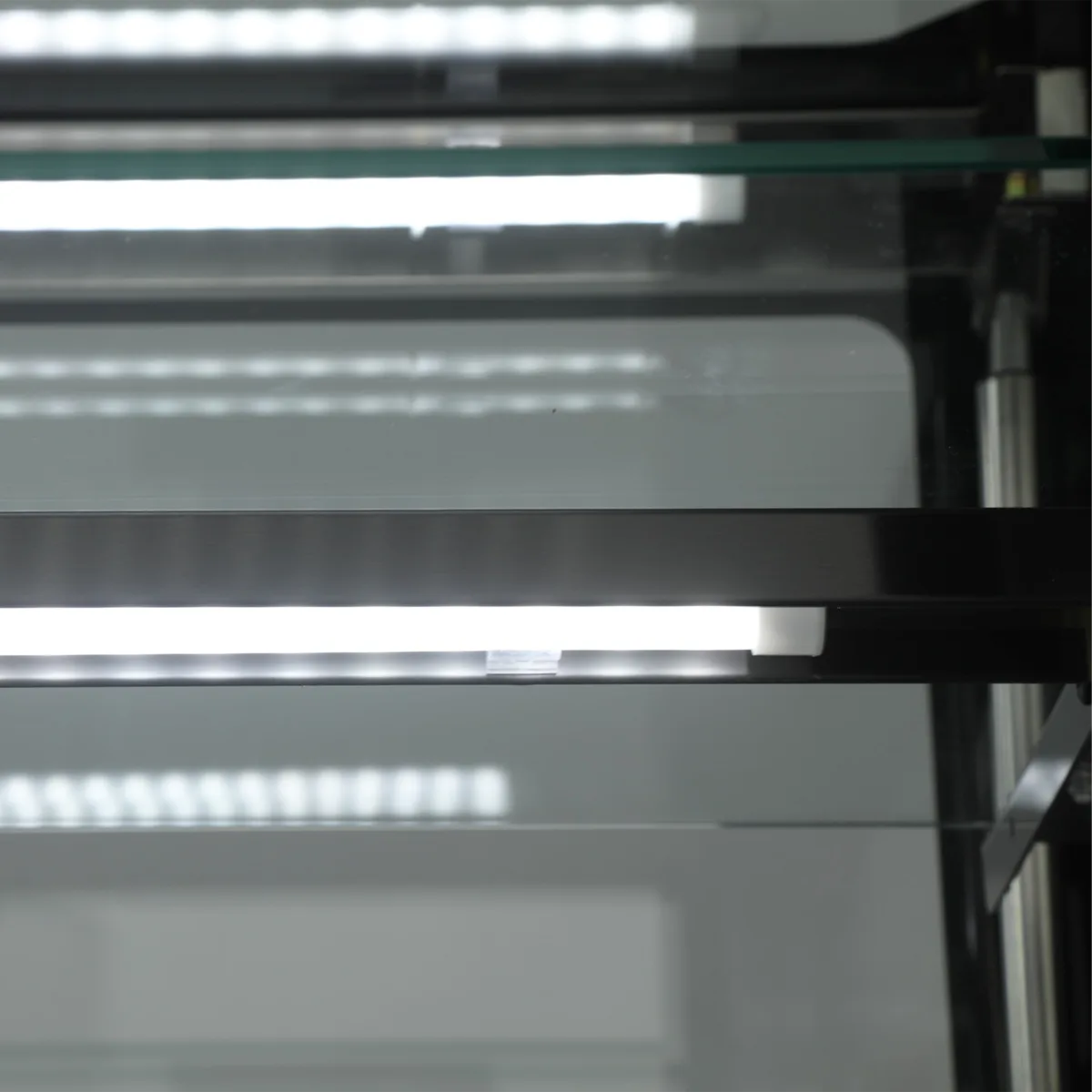

- LED light under each shelf
- Front glass hinges forward if required
- Temperature Class 3M1
- Excellent product visibility
- Glass rear sliding doors

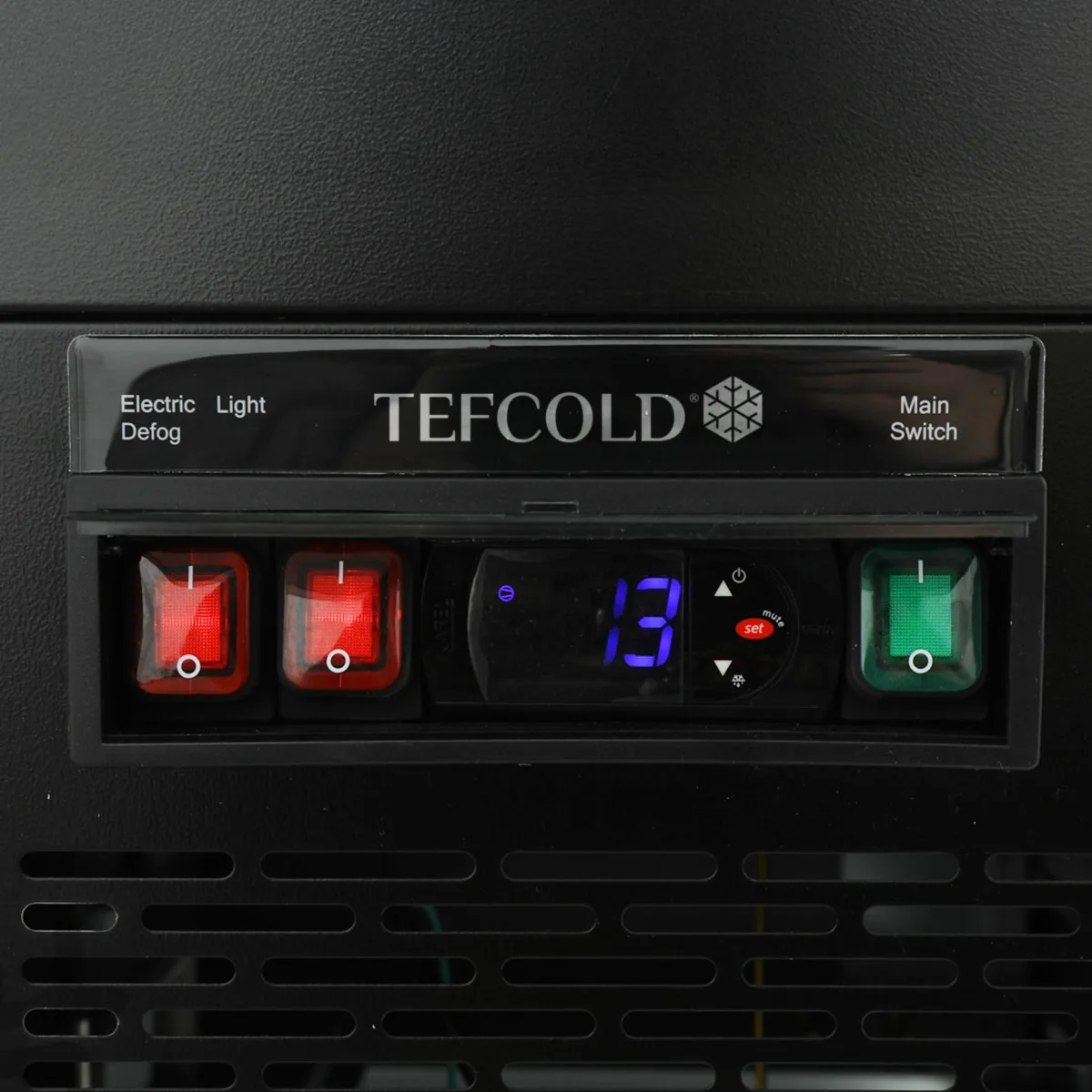

- Digital controller and temperature display
- Castors
- Easy to clean condenser filter
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1500 x 750 x 1360 mm
Volume gross / net680 / 432 l l
Temperature-1 to +5 °C
Weight gross / net320 / 253 kg kg
Energy classB
Specifications
| Gross / Net Weight | 320 / 253 kg |
|---|---|
| 40ft Container Load | 15 pcs |
| GTIN / EAN | 5708181756307 |
| Product Group - Delivery services | Group 4 |
| Input Power | 790 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| External Dimension (WxDxH) | 1500 x 750 x 1360 mm |
| Packed Dimension (WxDxH) | 1580 x 820 x 1475 mm |
| Gross / Net Volume | 680 / 432 l |
| Total Display Area | 2.98 m² |
| Temperature Range | -1 to +5 °C |
| Climate Class | 3 |
| Exterior Finish | Black/Glass |
| Interior Finish | Stainless steel / Glass |
| Door Number & Type | 2 sliding glass doors |
| Door Reversible | Yes |
| Shelves Number & Type | 3 glass shelves + base |
| Shelf Dimensions | 1416 x 400 mm |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Defrost | Automatic |
| Refrigerant Charge | 145 g |
| Refrigerant | R290 |
| Thermometer | Yes |
| Energy Class | B |
| EPREL No | 2427384 |
| Annual Energy Consumption | 2825 kWh/year |
| Energy Consumption | 7.74 kWh/24h |
| EEI | 16.9 % |
| Noise Level | 65 dB(A) |
| Internal Dimension (WxDxH) | 1446 x 600 x 808 mm |
| Castors | 4 wheels |
Refrigerated display counter with flat glass structure
The PDA3-CTF range of chilled display counters has a flat glass structure, where the front hinges forward for easy cleaning. This premium design is made with high quality materials and comes in several sizes. It offers features such as glass shelves with LED lighting underneath, anti-mist front glass, and an efficient ventilated cooling system.
