D
DKR-PRO

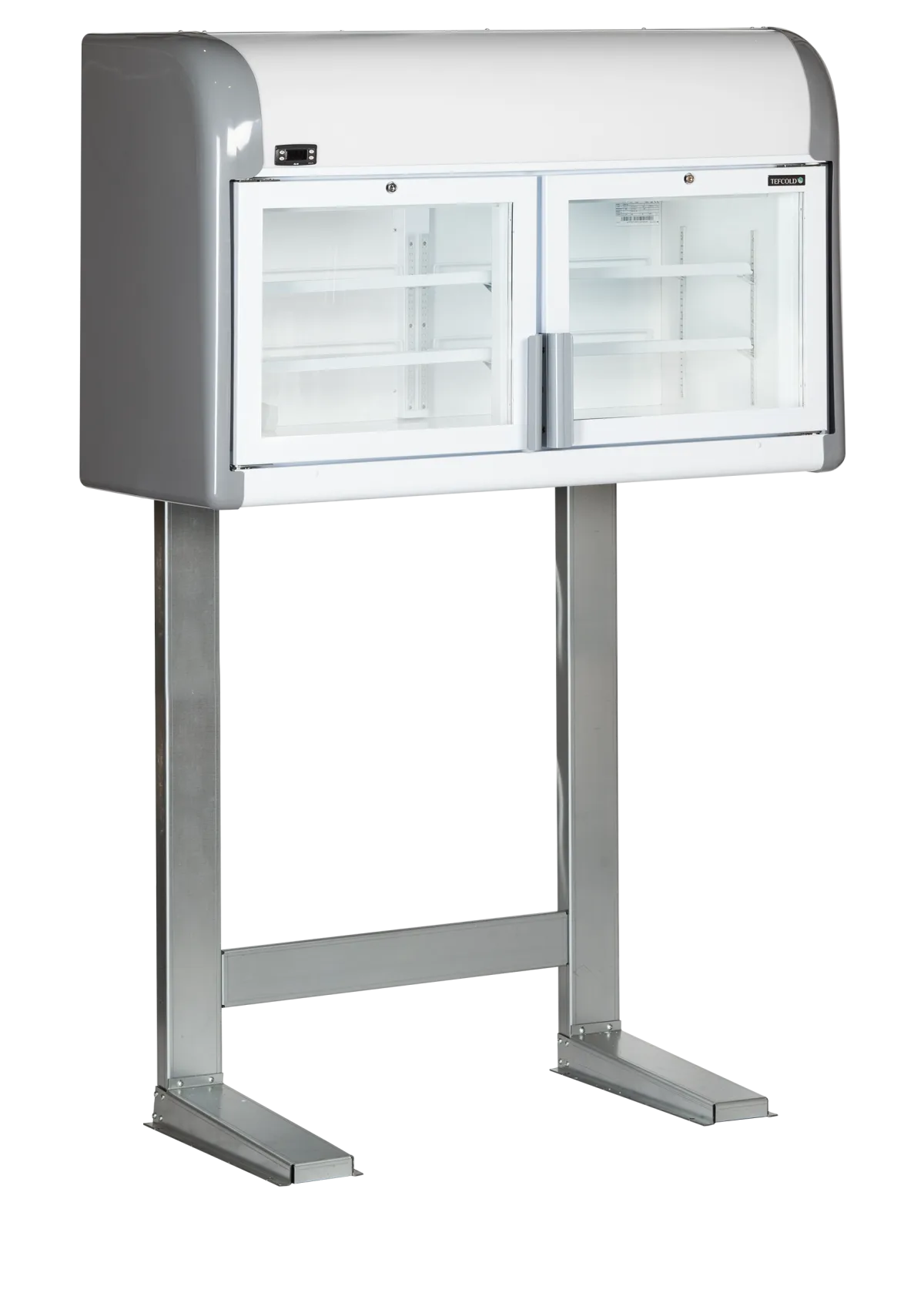

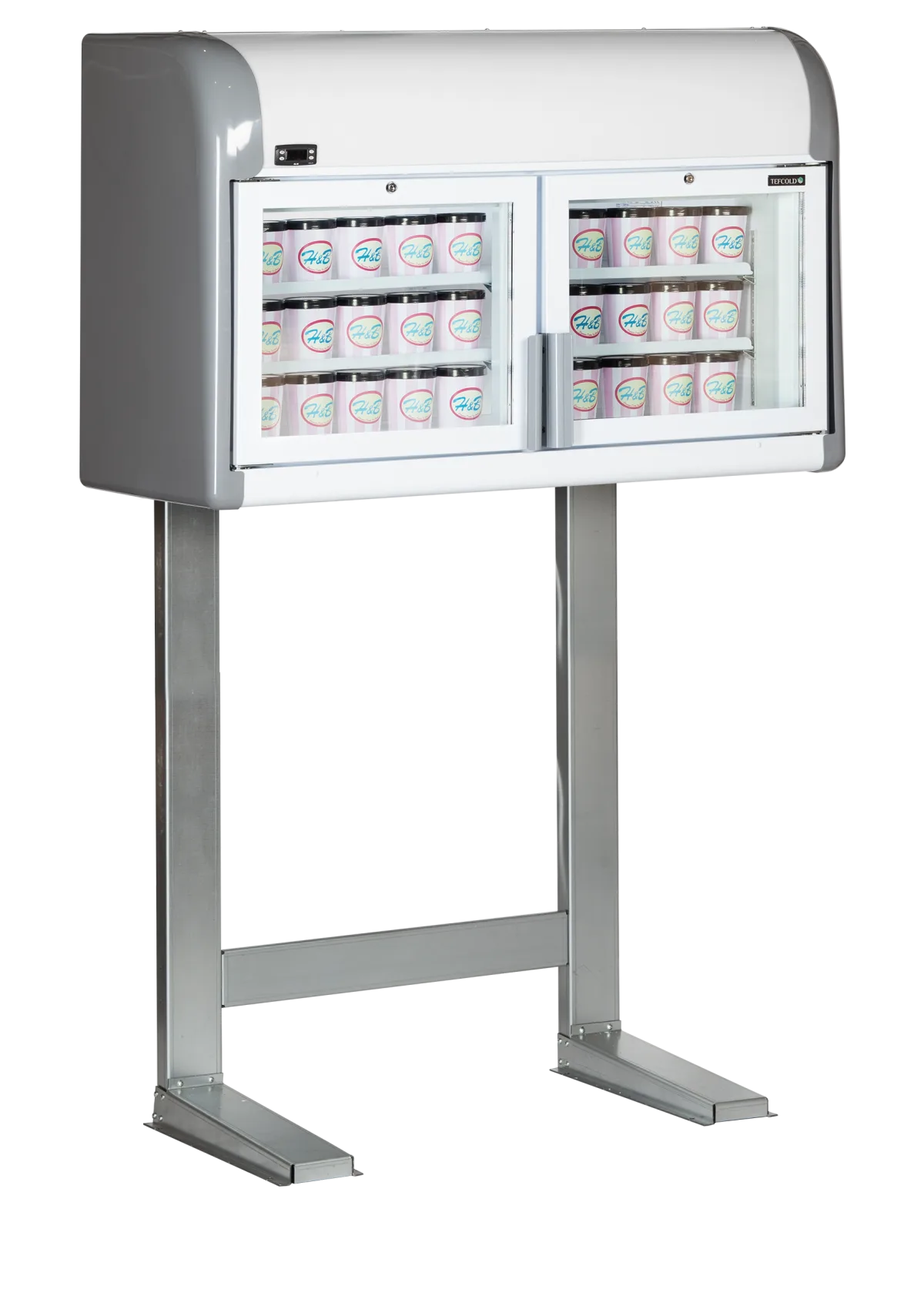

MTF Mini
Top Case Freezer
Item no. 45313
EAN 5708181720407
- Adjustable shelves
- Vertical LED interior light with switch

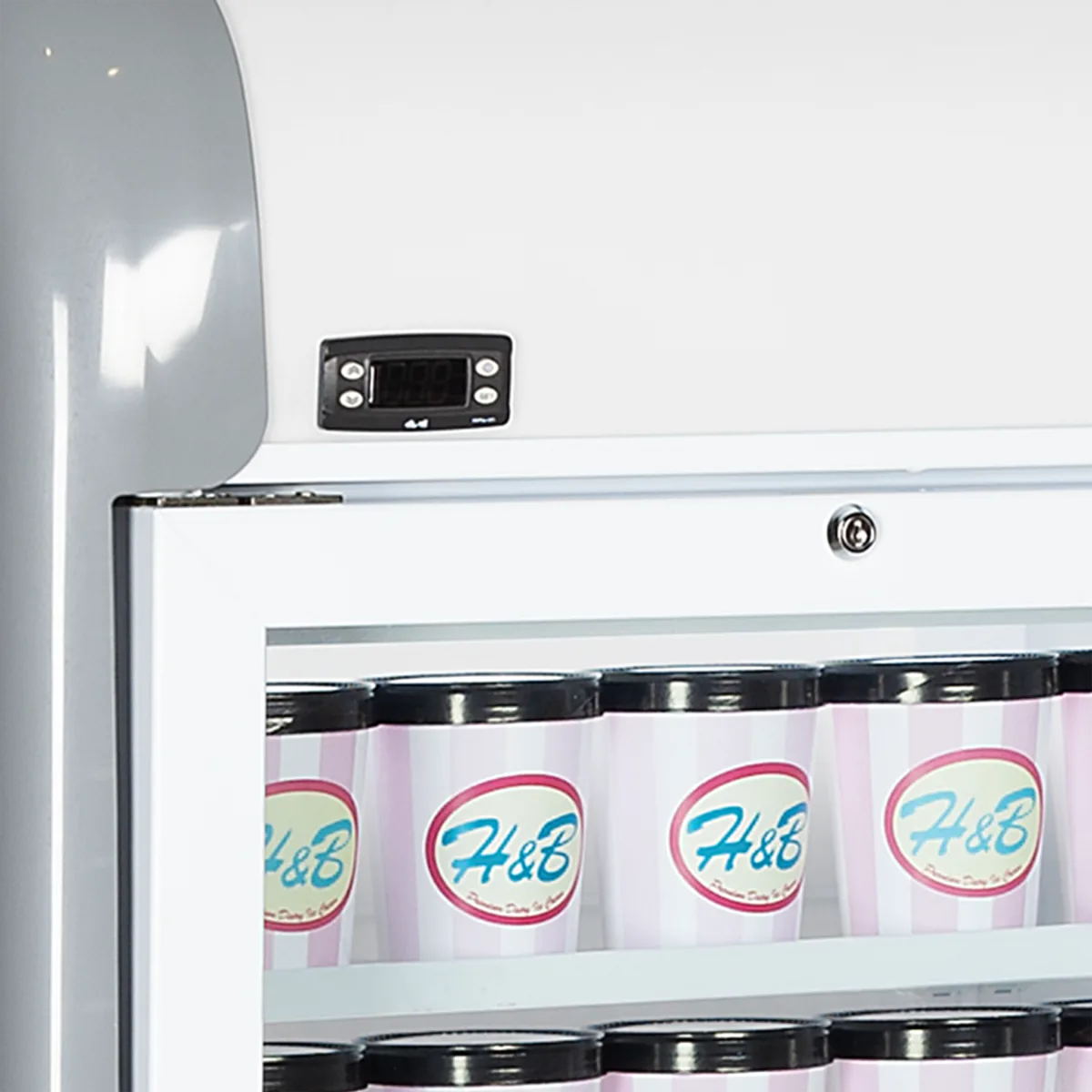

- Digital controller and temperature display
- Ticket strip and acrylic front riser as standard
- Heated Self-closing glass doors
- Requires display chiller/freezer to sit underneath
- Requires stand building and cabinet lifting onto stand
- Static cooling
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1275 x 636 x 1965 mm
Volume gross / net200 / 170 l l
Temperature-23 to -18 °C
Weight gross / net170.1 / 113.6 kg kg
Energy classC
Specifications
| Gross / Net Weight | 170.1 / 113.6 kg |
|---|---|
| 40ft Container Load | 48 pcs |
| GTIN / EAN | 5708181720407 |
| Product Group - Delivery services | Group 3 |
| Gross / Net Volume | 200 / 170 l |
| Total Display Area | 0.38 m² |
| Temperature Range | -23 to -18 °C |
| Climate Class | 4 |
| Exterior Finish | White |
| Interior Finish | White painted steel |
| Door Number & Type | 2 hinged self-closing glass doors |
| Shelves Number & Type | 4 adjustable wire shelves, white |
| Shelf Dimensions | 530x316mm |
| Max load on Shelves | 196 kg/m² |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Cooling | Static |
| Type of Defrost | Manual |
| Refrigerant | R290 |
| Refrigerant Charge | 65 g |
| Thermometer | Yes |
| Energy Class | C |
| EPREL No | 1426061 |
| Max Ambient | +30°C, 55% RH |
| Energy Consumption | 4.16 kWh/24h |
| Annual Energy Consumption | 1518 kWh/year |
| EEI | 25.5 % |
| Power | 13 Amp |
| Input Power | 212 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 58 dB(A) |
| External Dimension (WxDxH) | 1275 x 636 x 1965 mm |
| Internal Dimension (WxDxH) | 1080 x 438 x 401 mm |
| Packed Dimension (WxDxH) | 1380 x 675 x 1010 mm |

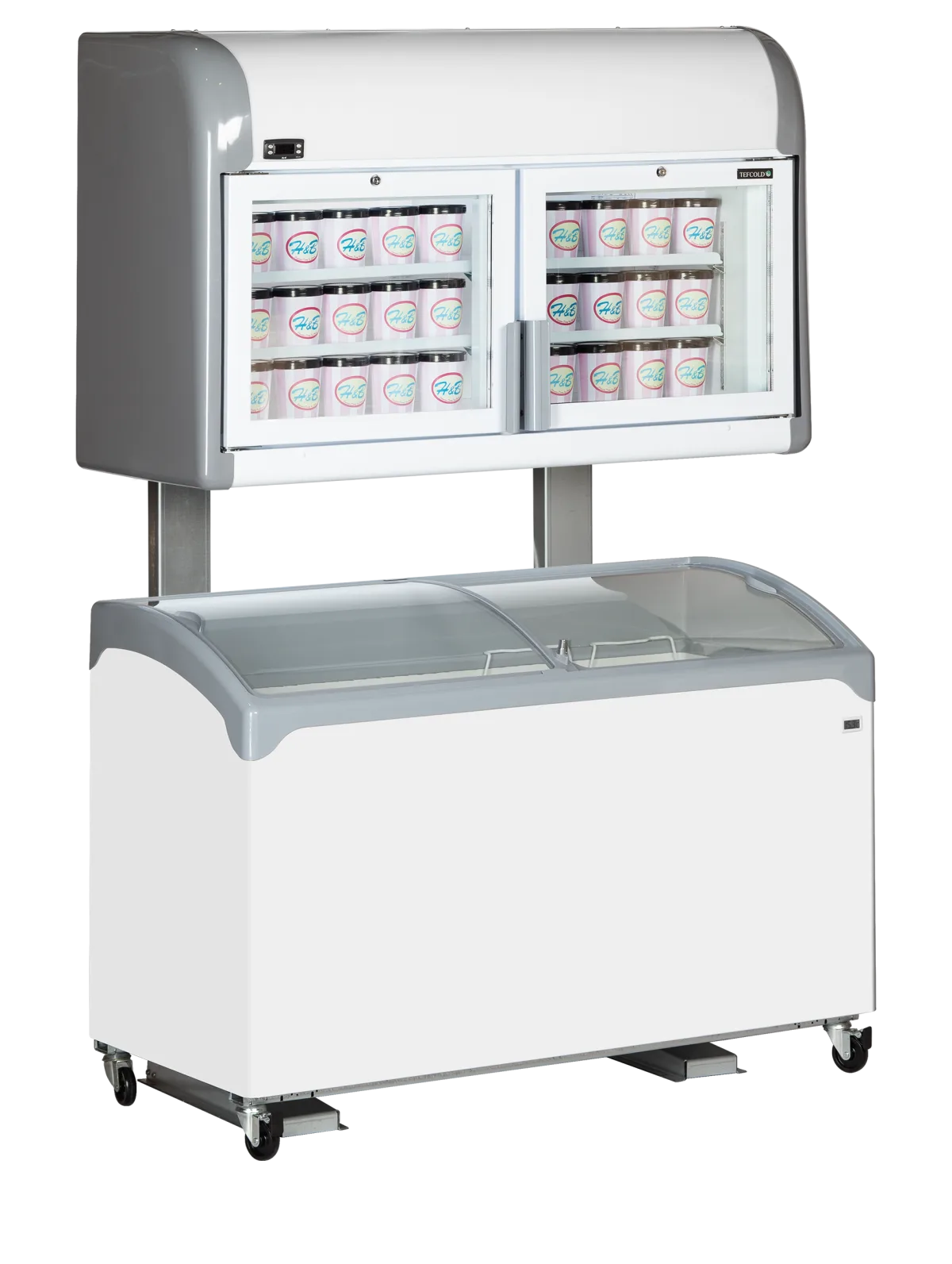

The MTF MINI is designed to create an eye-catching frozen display to draw customers in. With an illuminated top canopy plus areas for side branding and great internal lighting, this is the perfect unit to get your product noticed. The MTF is designed to be used in conjunction with the DKR-PRO NIC402SCEB glass sliding lid chest freezer which sites underneath.
