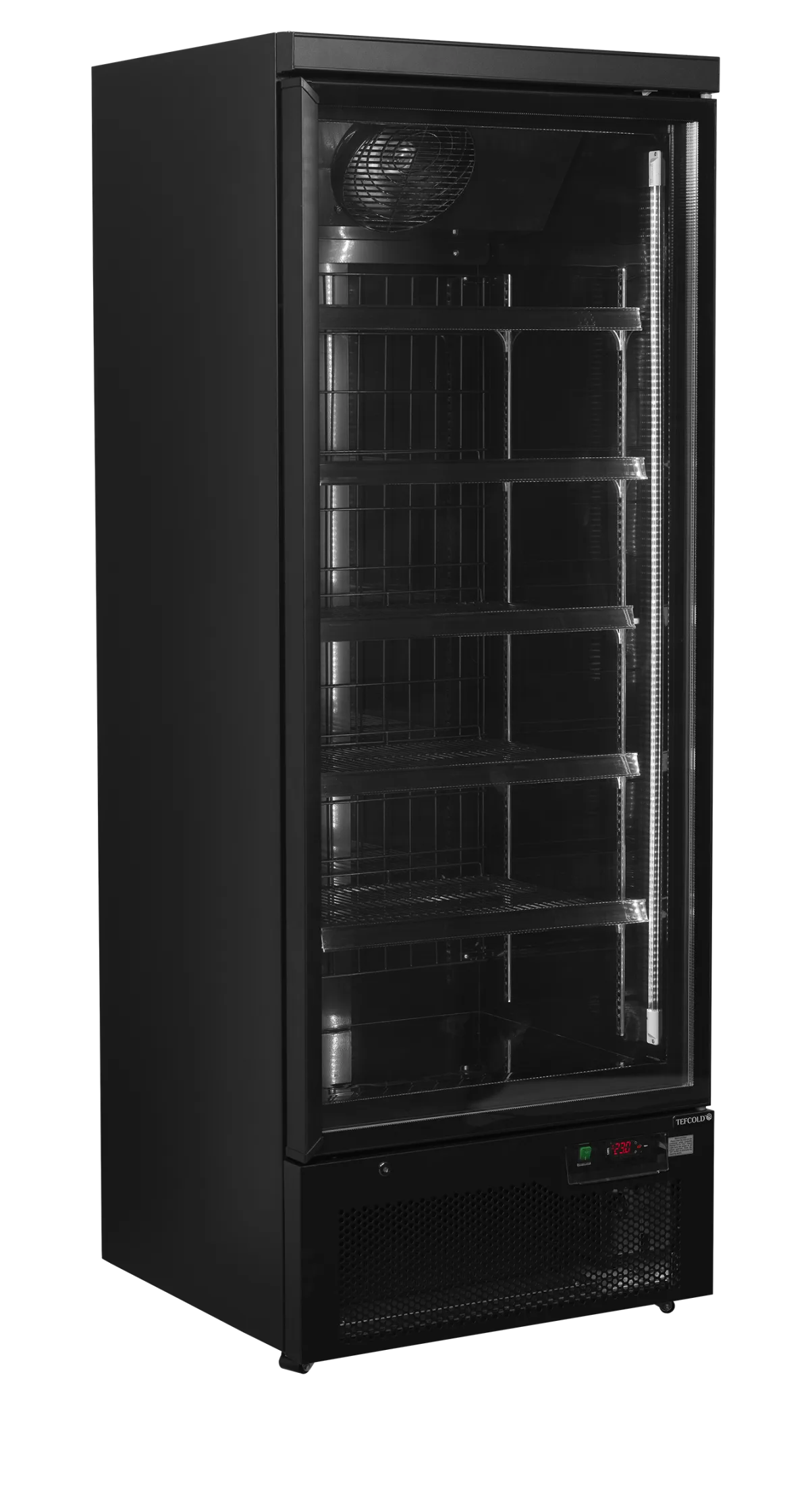

DKR-PRO
Atom Maxi F1DBB
Display Freezer
Item no. 54343
EAN 5708181739515
- Perfect display for frozen foods
- Black interior and exterior
- Low energy consumption
- Self-closing heated glass door
- Triple glazed insulated glass

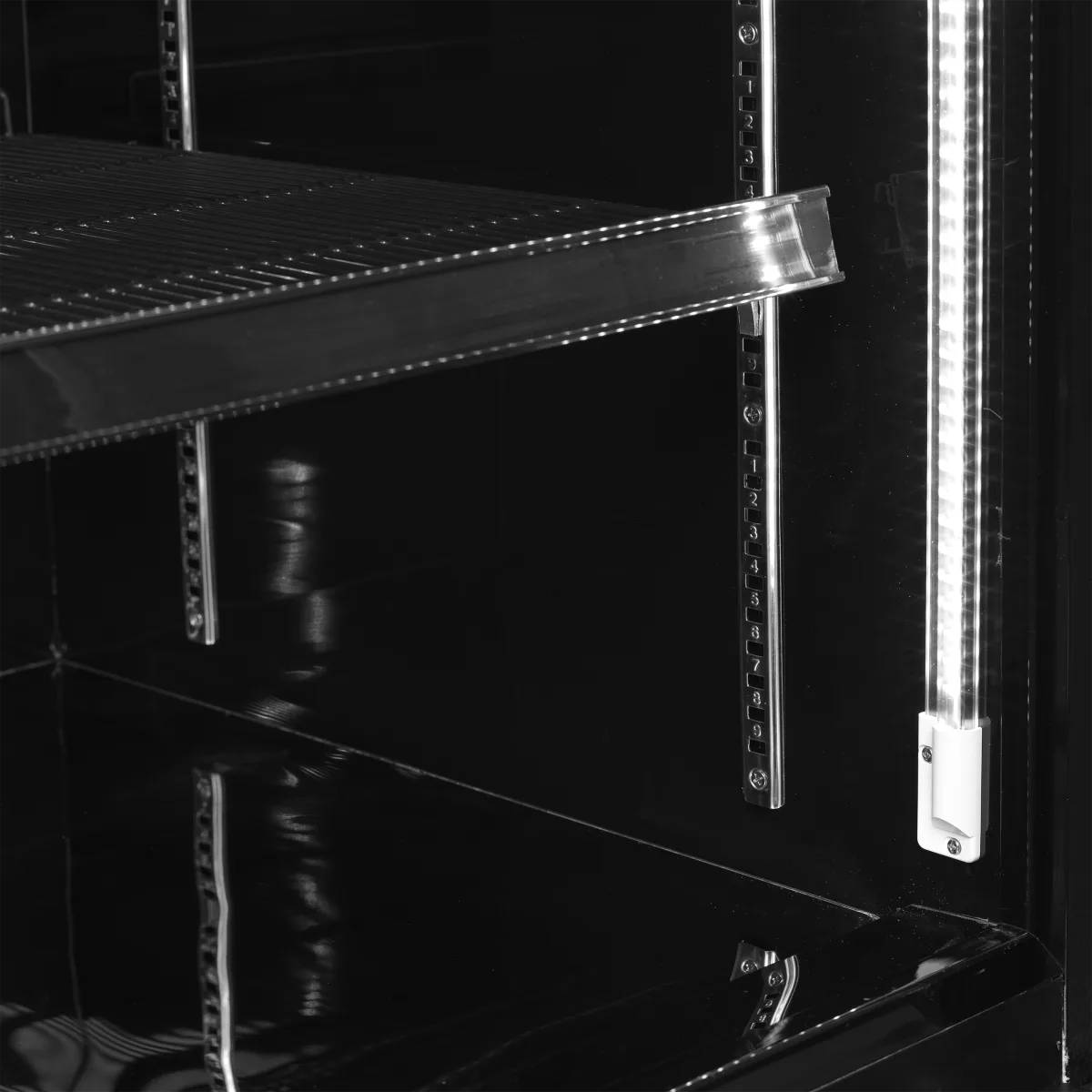

- Adjustable shelves
- Ventilated cooling
- Internal vertical LED light
- Stainless steel base with mirror effect

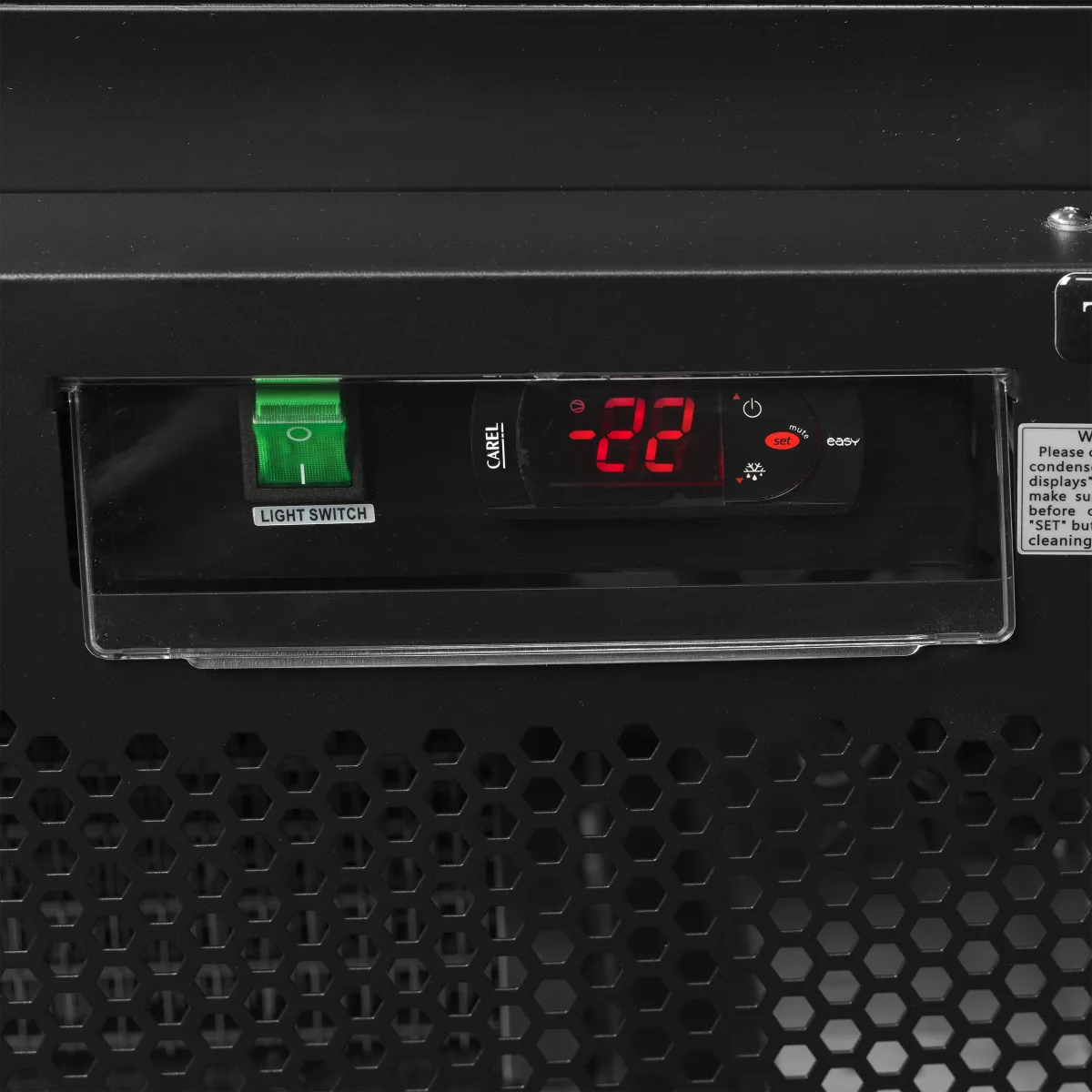

- Digital controller and temperature display
- Chiller Option Available
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)750 x 760 x 2003 mm
Volume gross / net560 / 390 l l
Temperature-18 to -22 °C
Weight gross / net158.5 / 150 kg kg
Energy classC
Specifications
| Gross / Net Weight | 158.5 / 150 kg |
|---|---|
| 40ft Container Load | 45 pcs |
| GTIN / EAN | 5708181739515 |
| Product Group - Delivery services | Group 2 |
| Gross / Net Volume | 560 / 390 l |
| Total Display Area | 0.84 m² |
| Temperature Range | -18 to -22 °C |
| Climate Class | 3 |
| Exterior Finish | Black RAL9005 |
| Interior Finish | Black |
| Door Number & Type | 1 hinged glass door |
| Door Reversible | No |
| Shelves Number & Type | 5 adjustable |
| Shelf Color | Black |
| Shelf Dimensions | 610 x 470 mm |
| Max load on Shelves | 140 kg/m² |
| Castors | 4 castors |
| Lock | Yes |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic |
| Refrigerant | R290 |
| Refrigerant Charge | 85 g |
| Thermometer | Yes |
| Energy Class | C |
| EPREL No | 1786684 |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 9.07 kWh/24h |
| Annual Energy Consumption | 3311 kWh/year |
| EEI | 34.8 % |
| Power | 13 Amp |
| Input Power | 600 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 61 dB(A) |
| External Dimension (WxDxH) | 750 x 760 x 2003 mm |
| Internal Dimension (WxDxH) | 630 x 580 x 1538 mm |
| Packed Dimension (WxDxH) | 775 x 775 x 2090 mm |

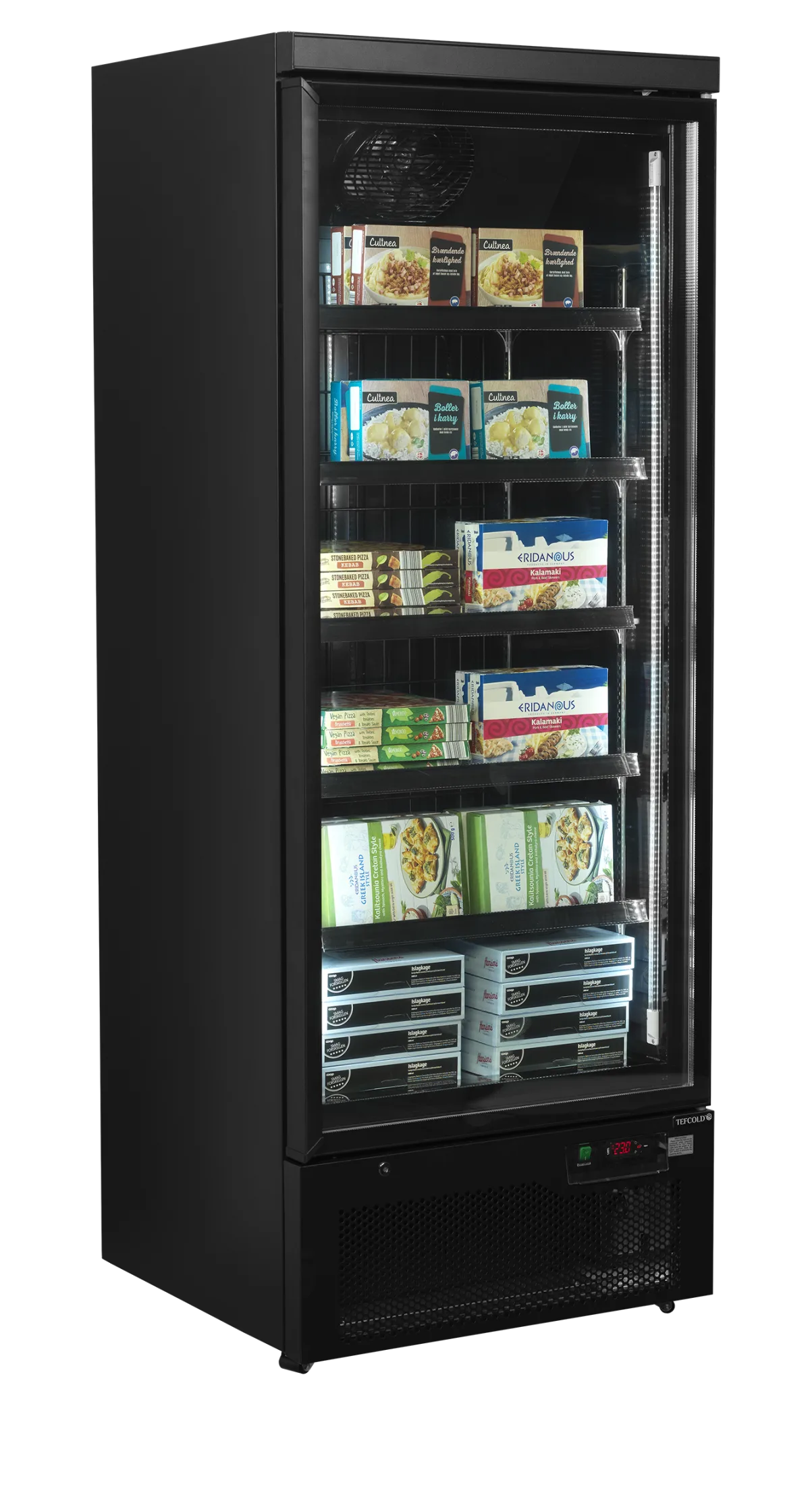

1 door display freezer, black
The Atom Maxi range of glass door freezers is available in 1, 2 or 3 door options. Edge-to-edge "frameless" self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a frozen selection gives customers extra choice.
