B
DKR-PRO
DB301H

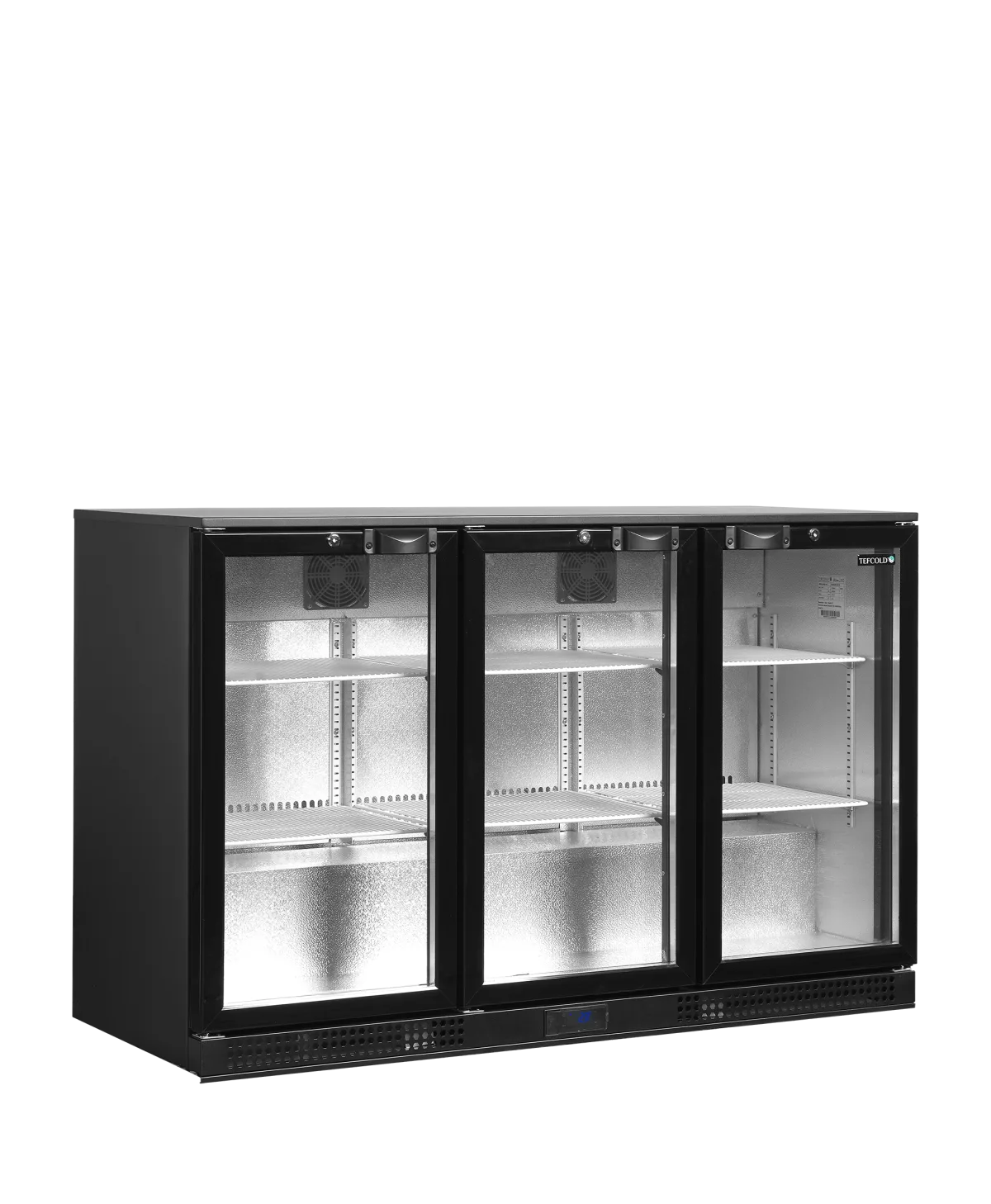

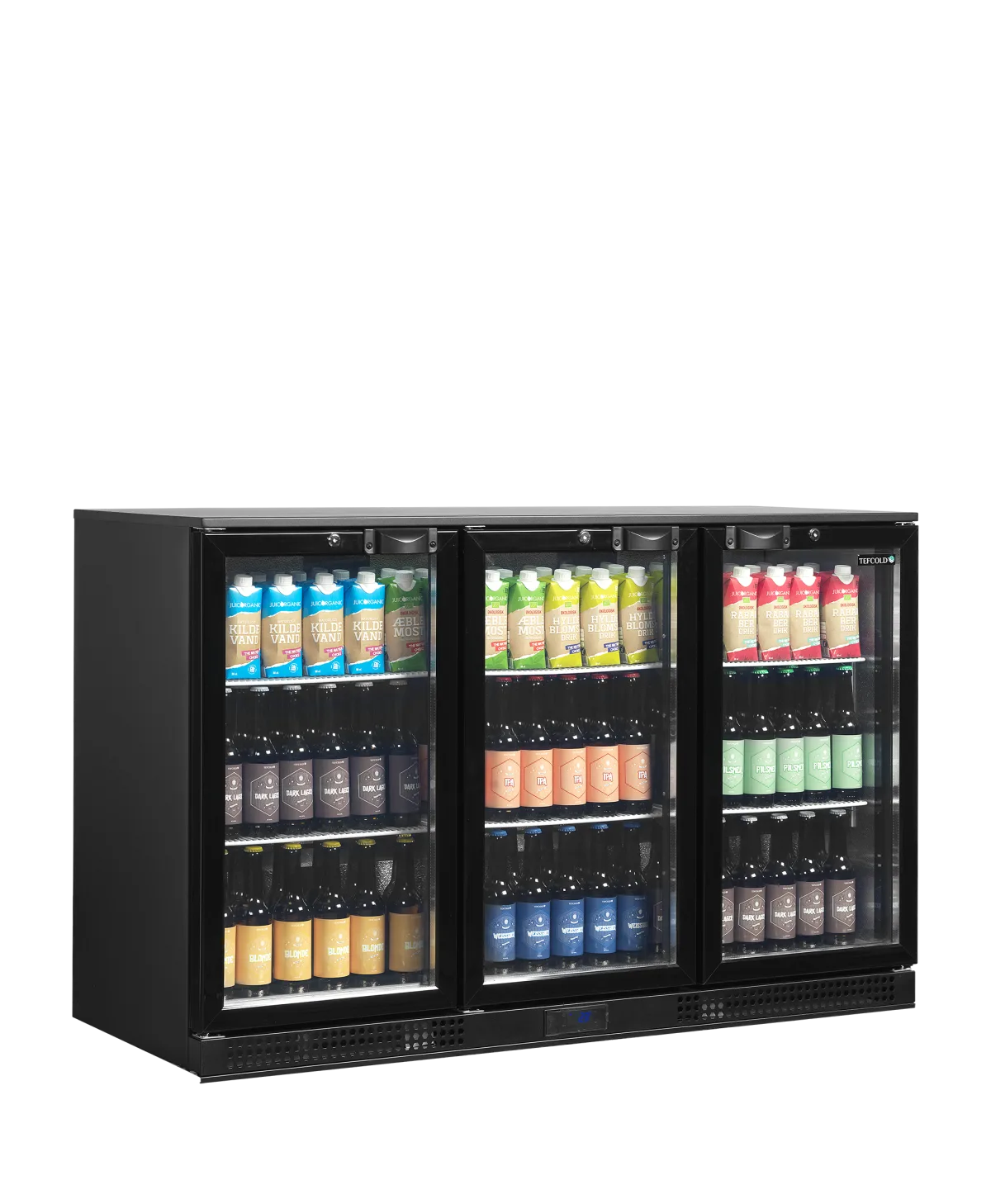

Back Bar Cooler
Item no. 47988
EAN 5708181727970
- Fully automatic
- Double glazed tempered glass
- Hinged glass doors
- Ventilated cooling for fast pull-down and even temperature

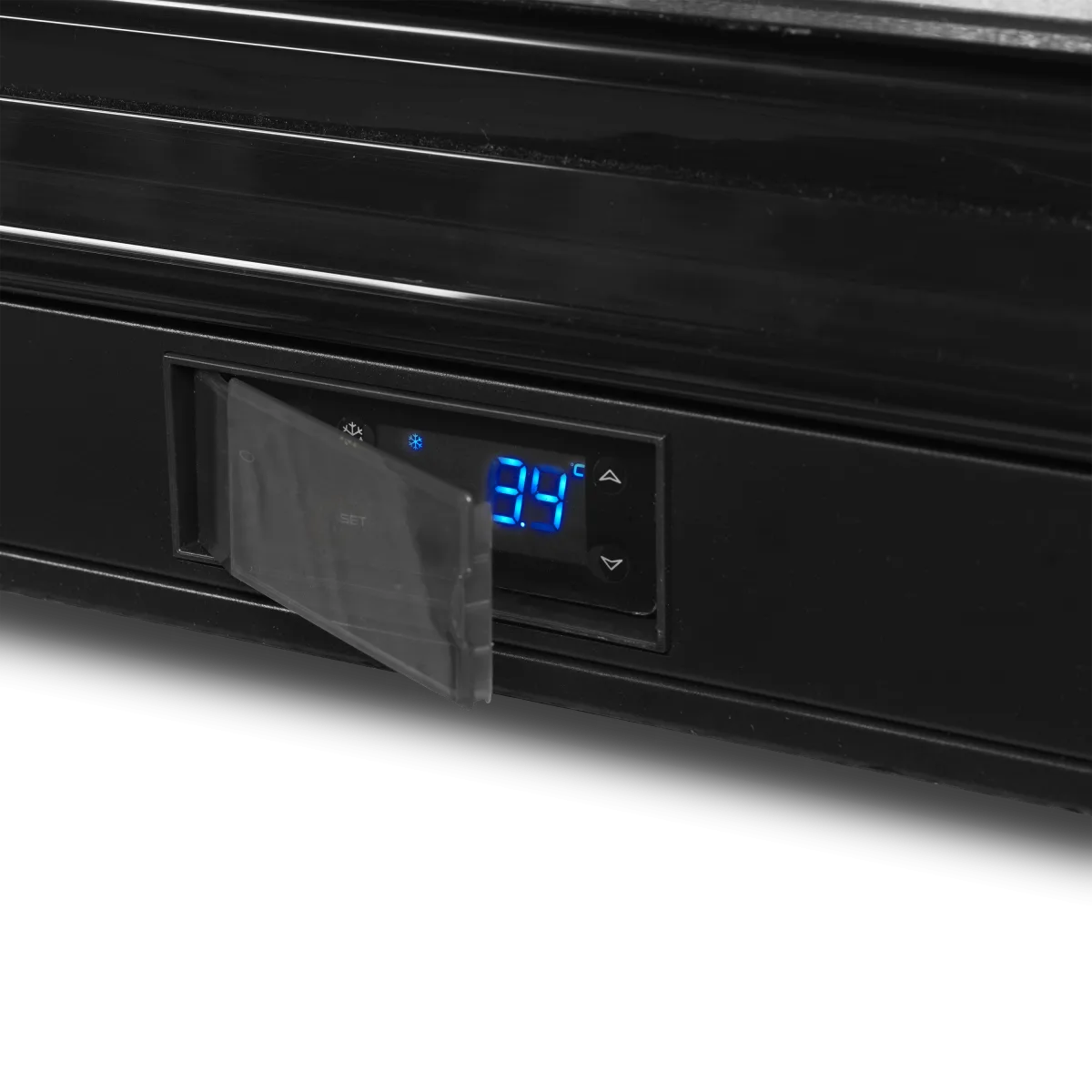

- Easy access electronic thermostat
- Adjustable shelves
- Adjustable feet
- LED interior light

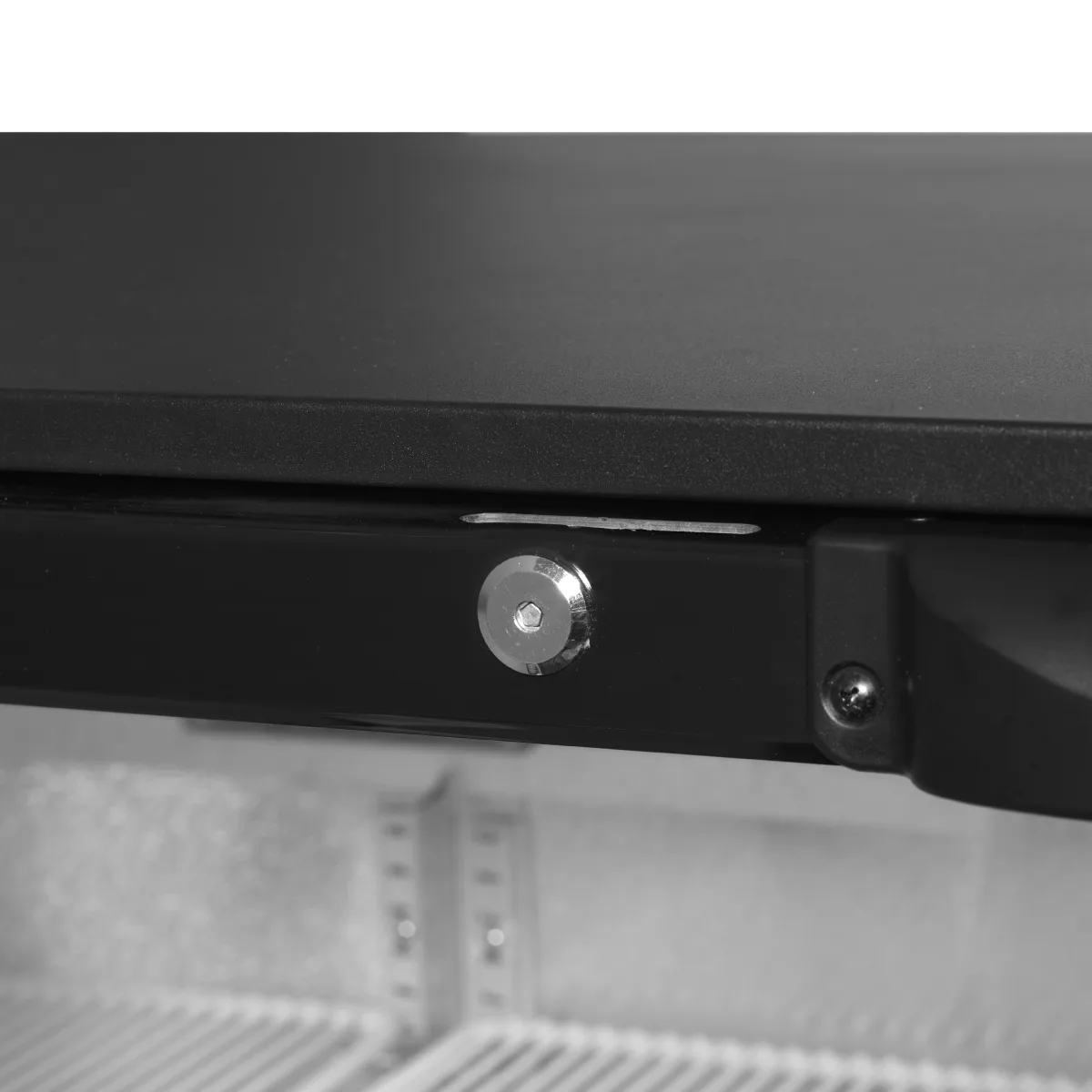

- Lock
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1350 x 545 x 870 mm
Volume gross / net300 / 278 l l
Temperature+2 to +10 °C
Weight gross / net95 / 88 kg kg
Energy classB
Specifications
| Gross / Net Weight | 95 / 88 kg |
|---|---|
| 40ft Container Load | 64 pcs |
| GTIN / EAN | 5708181727970 |
| Product Group - Delivery services | Group 2 |
| Bottles 330 ml | 218 pcs |
| Bottles 500 ml PET | 218 pcs |
| Cans 330 ml | 380 pcs |
| Cans 500 ml | 266 pcs |
| Gross / Net Volume | 300 / 278 l |
| Total Display Area | 0.75 m² |
| Temperature Range | +2 to +10 °C |
| Climate Class | 4 |
| Exterior Finish | Black RAL9005 |
| Interior Finish | Stucco aluminium |
| Door Number & Type | 3 hinged glass doors |
| Door Reversible | No |
| Shelves Number & Type | 6 wire shelves white |
| Shelf Color | White |
| Shelf Dimensions | 395x320 mm / 432x320mm |
| Max load on Shelves | 196 kg/m² |
| Feet / Legs | 4 adjustable feet |
| Lock | Yes |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic |
| Refrigerant Charge | 90 g |
| Refrigerant | R600a |
| Thermometer | Yes |
| Display cabinet family | VC4 |
| Type of refrigeration | Supermarket cabinet |
| Energy Class | B |
| EPREL No | 1431321 |
| Max Ambient | +30°C, 55% RH |
| Annual Energy Consumption | 657 kWh/year |
| Energy Consumption | 1.8 kWh/24h |
| EEI | 13 % |
| Power | 13 Amp |
| Input Power | 125 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 44 dB(A) |
| External Dimension (WxDxH) | 1350 x 545 x 870 mm |
| Internal Dimension (WxDxH) | 1265 x 418 x 720 mm |
| Packed Dimension (WxDxH) | 1435 x 575 x 940 mm |
Triple door back bar cooler
The DKR-PRO DB back bar range offers high-quality and energy-efficient cooling solutions for cafés, bars and pubs. These coolers come in a single, double, and triple door models. The cabinets feature an efficient refrigeration system and fans that deliver powerful cooling with minimal energy consumption. Additionally, the units are equipped with a digital controller and temperature display and come with locks as standard. Customers can choose between hinged or sliding doors (excluding DB126H and DB106H).
