DKR-PRO
Atom Maxi C2DS
Glass Door Merchandiser
Item no. 49821
EAN 5708181733469
- Low energy consumption
- Hinged glass doors
- Self-closing doors
- Double glazed doors

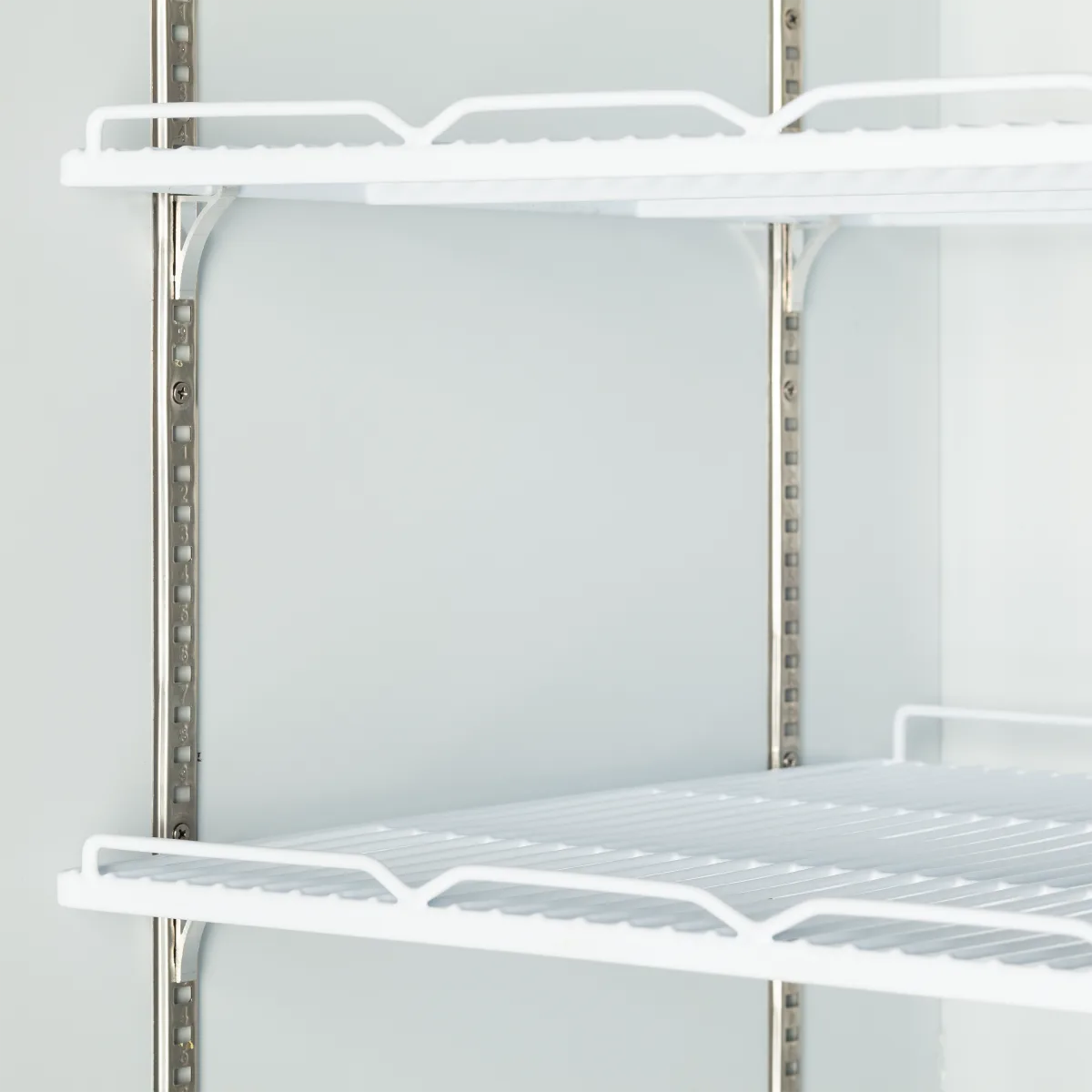

- Adjustable shelves
- Vertical LED interior light with switch
- Ventilated cooling

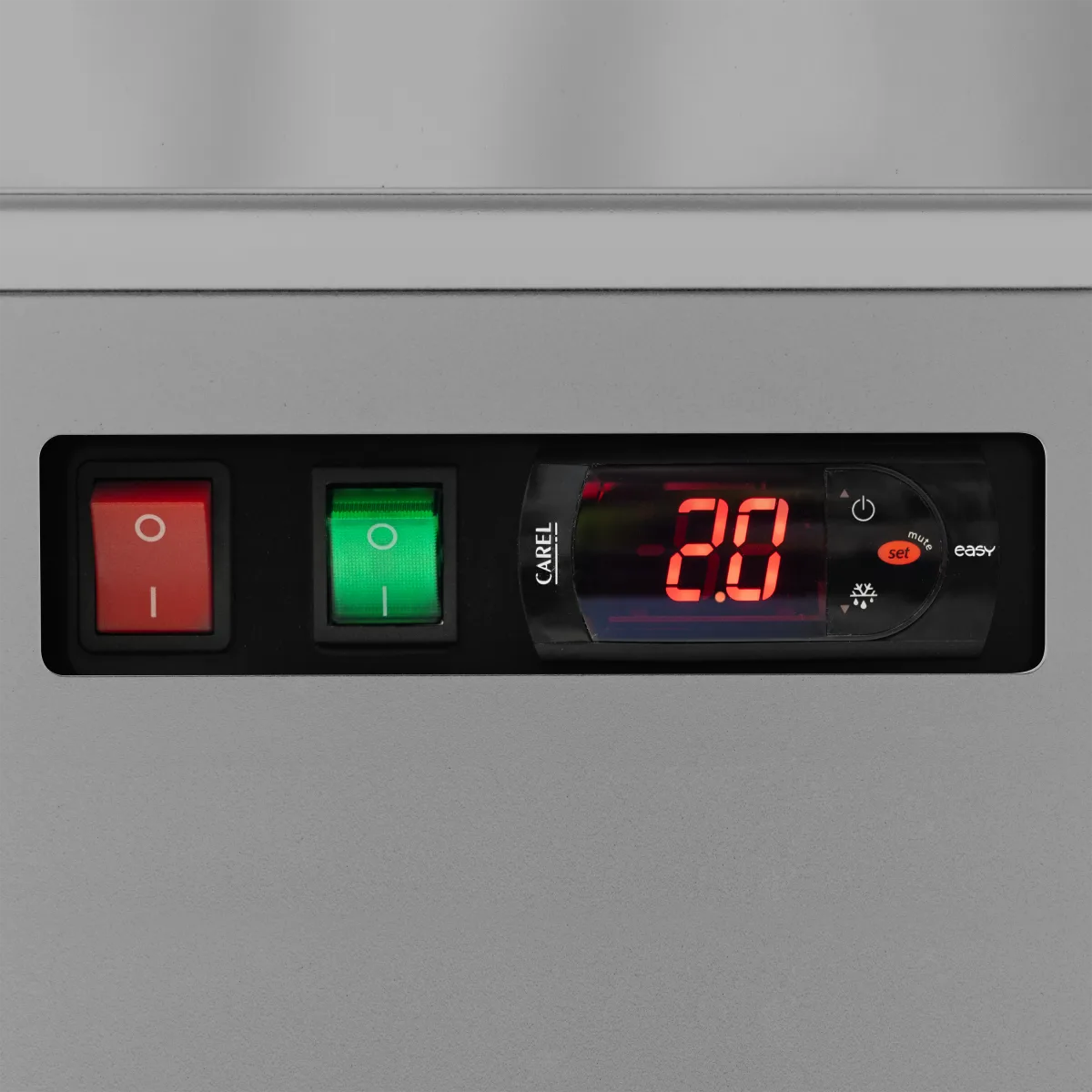

- Digital controller and temperature display
- Castors
- Freezer Option Available
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1253 x 710 x 2003 mm
Volume gross / net1081 / 809 l l
Temperature-1 to +10 °C
Weight gross / net197 / 179 kg kg
Energy classB
Specifications
| Gross / Net Weight | 197 / 179 kg |
|---|---|
| 40ft Container Load | 27 pcs |
| GTIN / EAN | 5708181733469 |
| Product Group - Delivery services | Group 3 |
| Bottles 330 ml | 630 pcs |
| Bottles 500 ml PET | 560 pcs |
| Cans 330 ml | 1120 pcs |
| Cans 500 ml | 672 pcs |
| Gross / Net Volume | 1081 / 809 l |
| Total Display Area | 1.58 m² |
| Temperature Range | -1 to +10 °C |
| Climate Class | 3 |
| Exterior Finish | Silver RAL9006 |
| Interior Finish | White RAL9003 |
| Door Number & Type | 2 hinged glass doors |
| Door Reversible | No |
| Shelves Number & Type | 10 adjustable |
| Shelf Color | White |
| Shelf Dimensions | 566 x 480 mm |
| Max load on Shelves | 135 kg/m² |
| Castors | 4 castors |
| Lock | Yes |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic / Off Cycle |
| Refrigerant | R290 |
| Refrigerant Charge | 110 g |
| Thermometer | Yes |
| Energy Class | B |
| EPREL No | 1556583 |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 4.17 kWh/24h |
| Annual Energy Consumption | 1522 kWh/year |
| EEI | 19.7 % |
| Power | 13 Amp |
| Input Power | 460 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 62 dB(A) |
| External Dimension (WxDxH) | 1253 x 710 x 2003 mm |
| Internal Dimension (WxDxH) | 1163 x 595 x 1568 mm |
| Packed Dimension (WxDxH) | 1278 x 760 x 2090 mm |

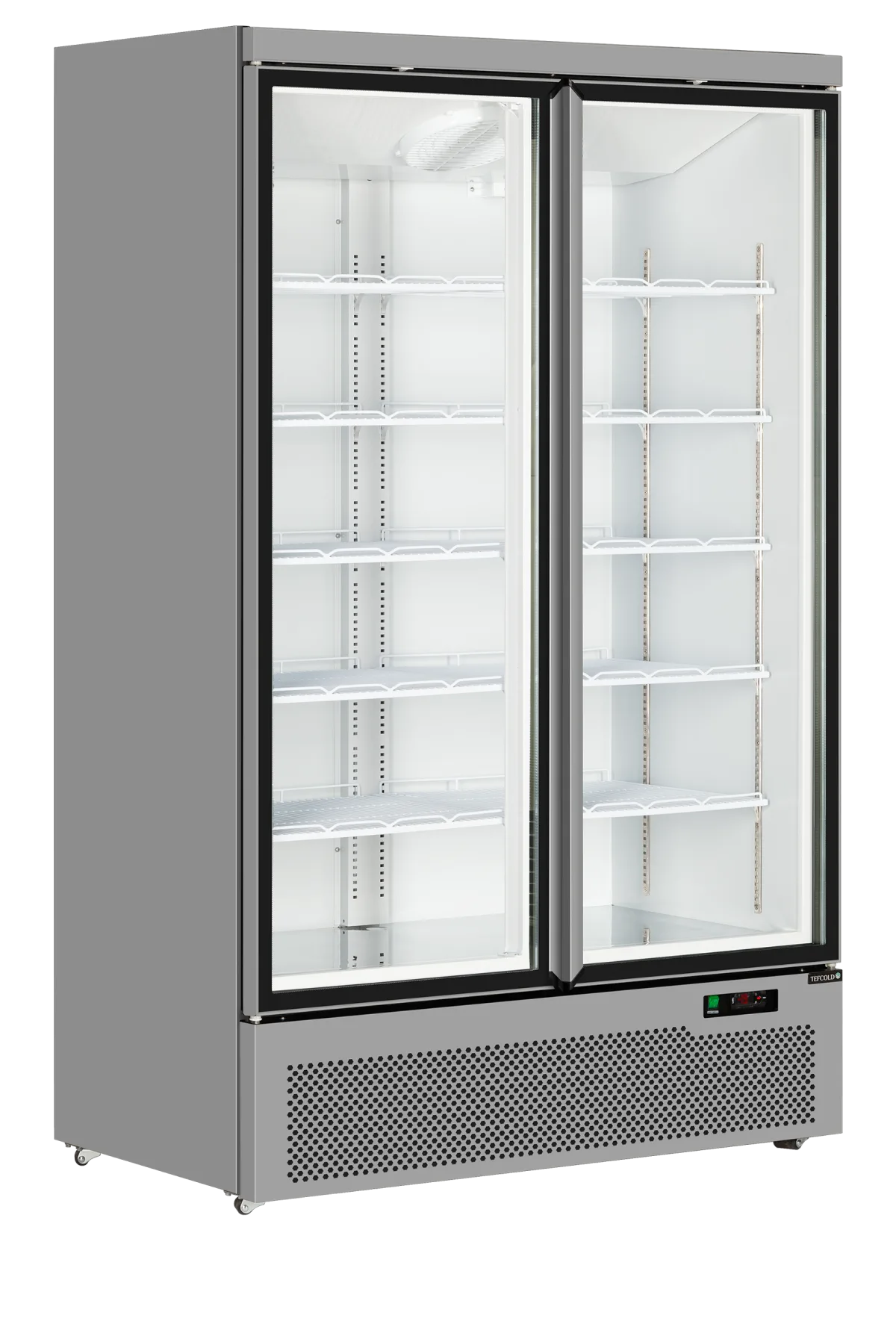

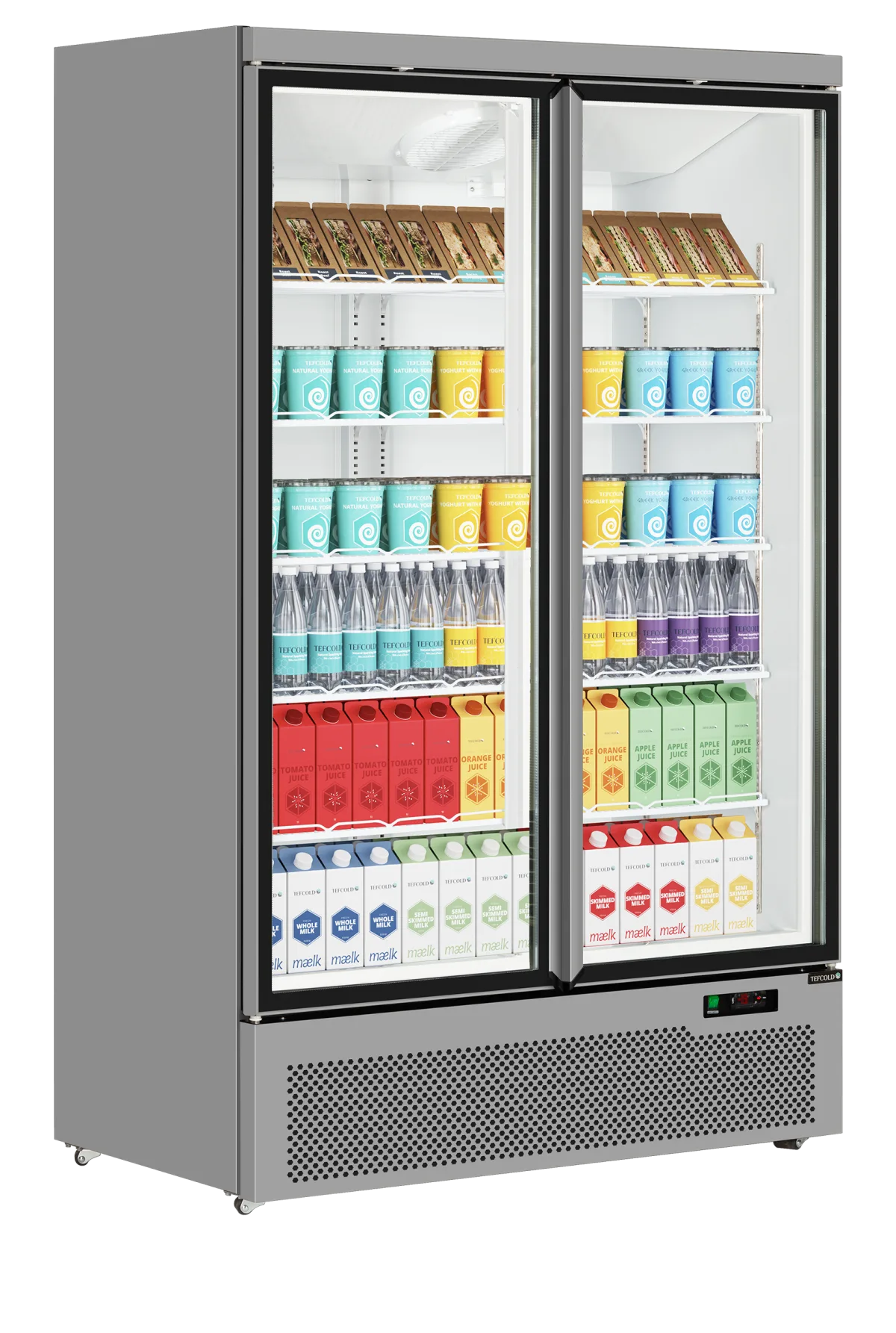

The Atom Maxi range of glass door chillers is available in 1, 2 or 3 door options. Edge to edge "frameless" self-closing glass doors together with excellent storage capacity make it ideal for all types of chilled food and drink displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a chilled food and drink selection enables extra choice. A white interior with vertical LED lighting helps present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce chilled produce to your customers. There is also a matching freezer option available.
