DKR-PRO

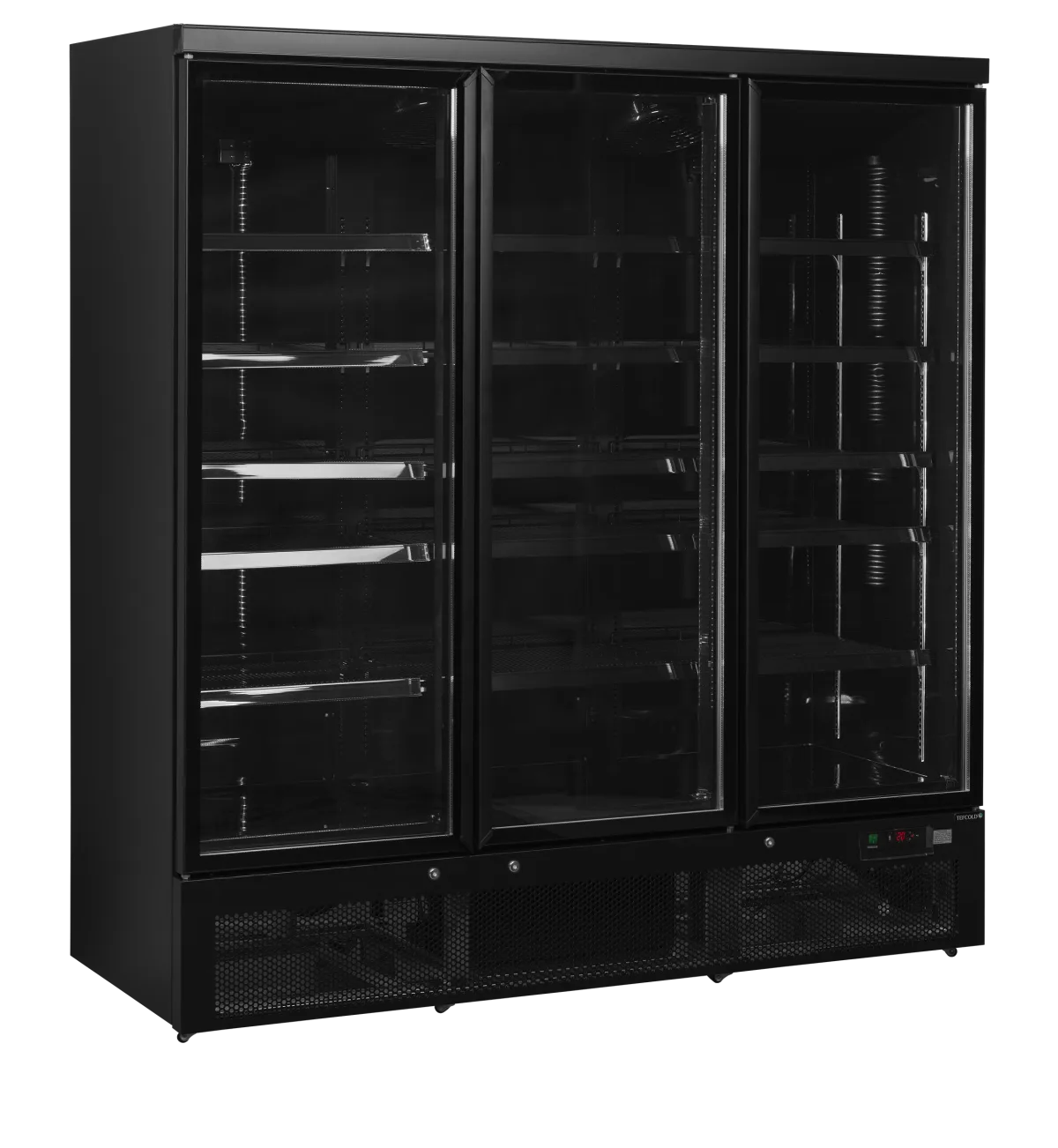

Atom Maxi C3DBB
Glass Door Merchandiser
Item no. 54348
EAN 5708181739560
- Great product presentation
- Black interior and exterior
- Low energy consumption
- Self-closing glass doors
- Double glazed tempered glass

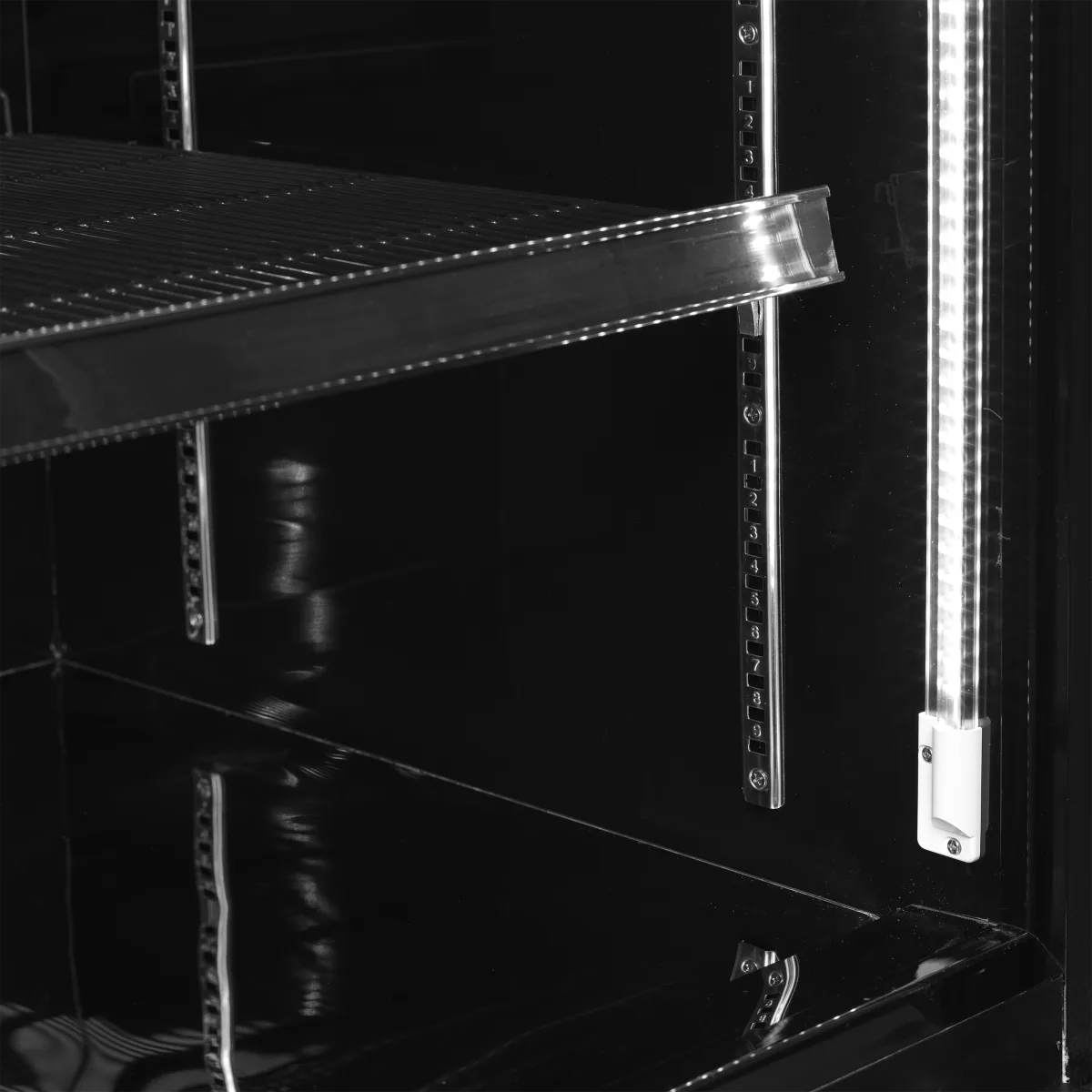

- Internal vertical LED light
- Ventilated cooling
- Adjustable shelves (split level)
- Stainless steel base with mirror effect

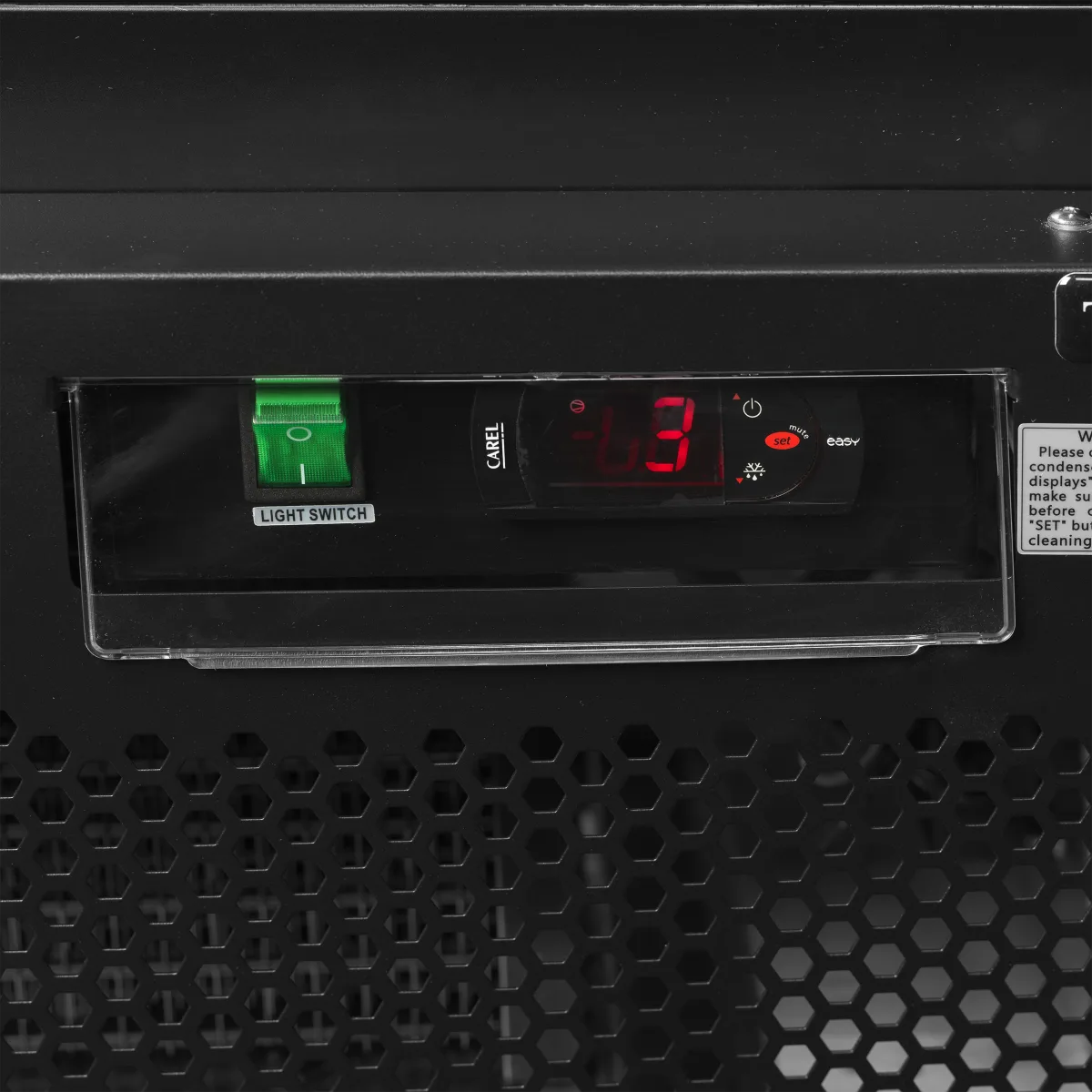

- Digital controller and temperature display
- Freezer Option Available
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1880 x 710 x 2003 mm
Volume gross / net1664 / 1062 l l
Temperature-1 to +10 °C
Weight gross / net235 / 207.5 kg kg
Energy classB
Specifications
| Gross / Net Weight | 235 / 207.5 kg |
|---|---|
| 40ft Container Load | 18 pcs |
| GTIN / EAN | 5708181739560 |
| Product Group - Delivery services | Group 4 |
| Bottles 330 ml | 980 pcs |
| Bottles 500 ml PET | 875 pcs |
| Cans 330 ml | 2100 pcs |
| Cans 500 ml | 1050 pcs |
| Gross / Net Volume | 1664 / 1062 l |
| Total Display Area | 2.38 m² |
| Temperature Range | -1 to +10 °C |
| Climate Class | 3 |
| Exterior Finish | Black RAL9005 |
| Interior Finish | Black |
| Door Number & Type | 3 hinged glass doors |
| Door Reversible | No |
| Shelves Number & Type | 15 adjustable |
| Shelf Color | Black |
| Shelf Dimensions | 566 x 480 mm ; 624 x 480 mm |
| Max load on Shelves | 136 kg/m² |
| Castors | 6 castors |
| Lock | Yes |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic / Off Cycle |
| Refrigerant | R290 |
| Refrigerant Charge | 130 g |
| Thermometer | Yes |
| Energy Class | B |
| EPREL No | 1556596 |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 5.41 kWh/24h |
| Annual Energy Consumption | 1975 kWh/year |
| EEI | 19.5 % |
| Power | 2 x 13 Amp |
| Input Power | 700 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 61 dB(A) |
| External Dimension (WxDxH) | 1880 x 710 x 2003 mm |
| Internal Dimension (WxDxH) | 1790 x 595 x 1568 mm |
| Packed Dimension (WxDxH) | 1920 x 750 x 2090 mm |

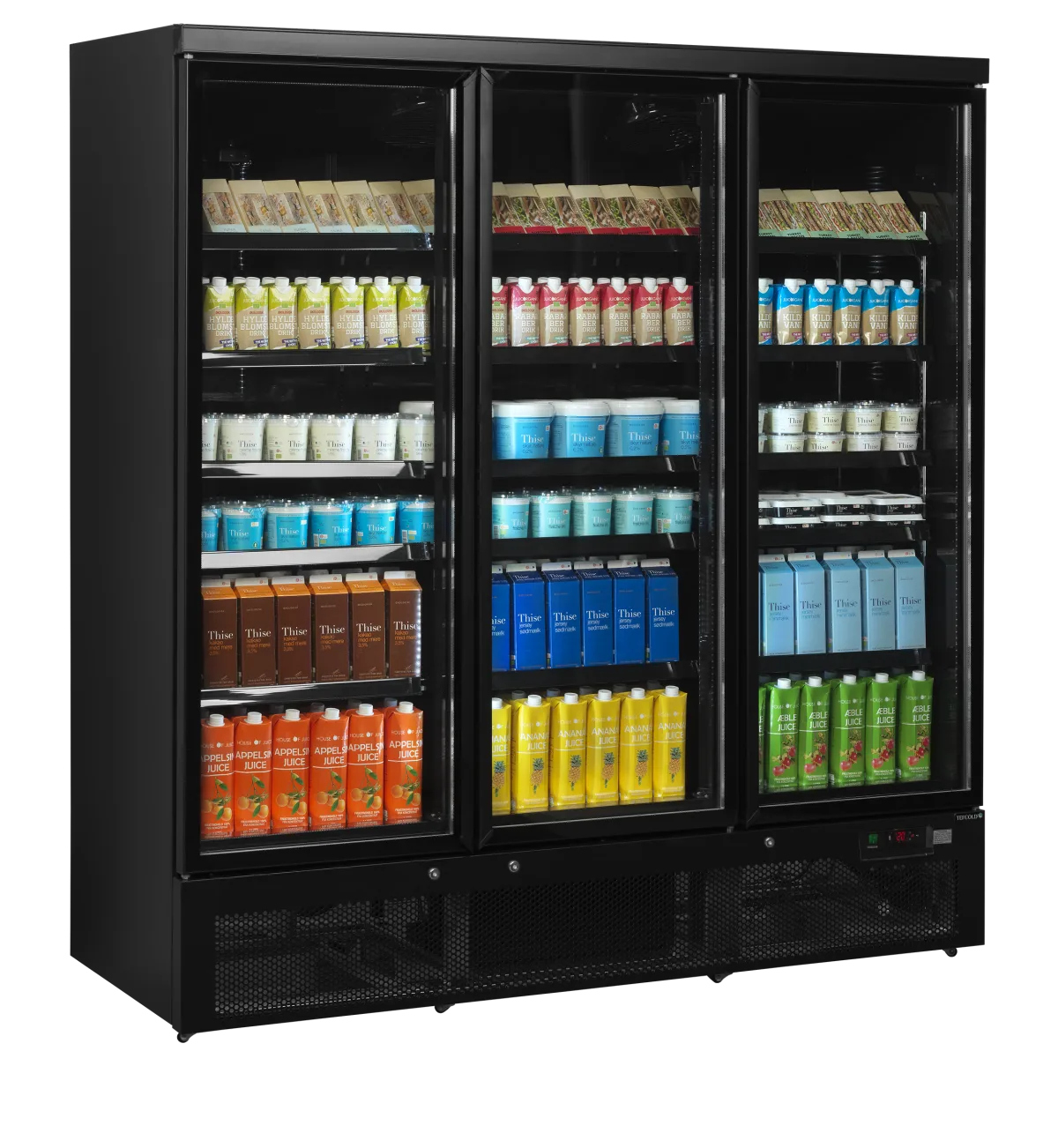

3 door chiller, black
The Atom Maxi range of glass door chillers is available in 1, 2 or 3 door options. Edge-to-edge "frameless" self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a frozen selection gives customers extra choice.
