B
DKR-PRO

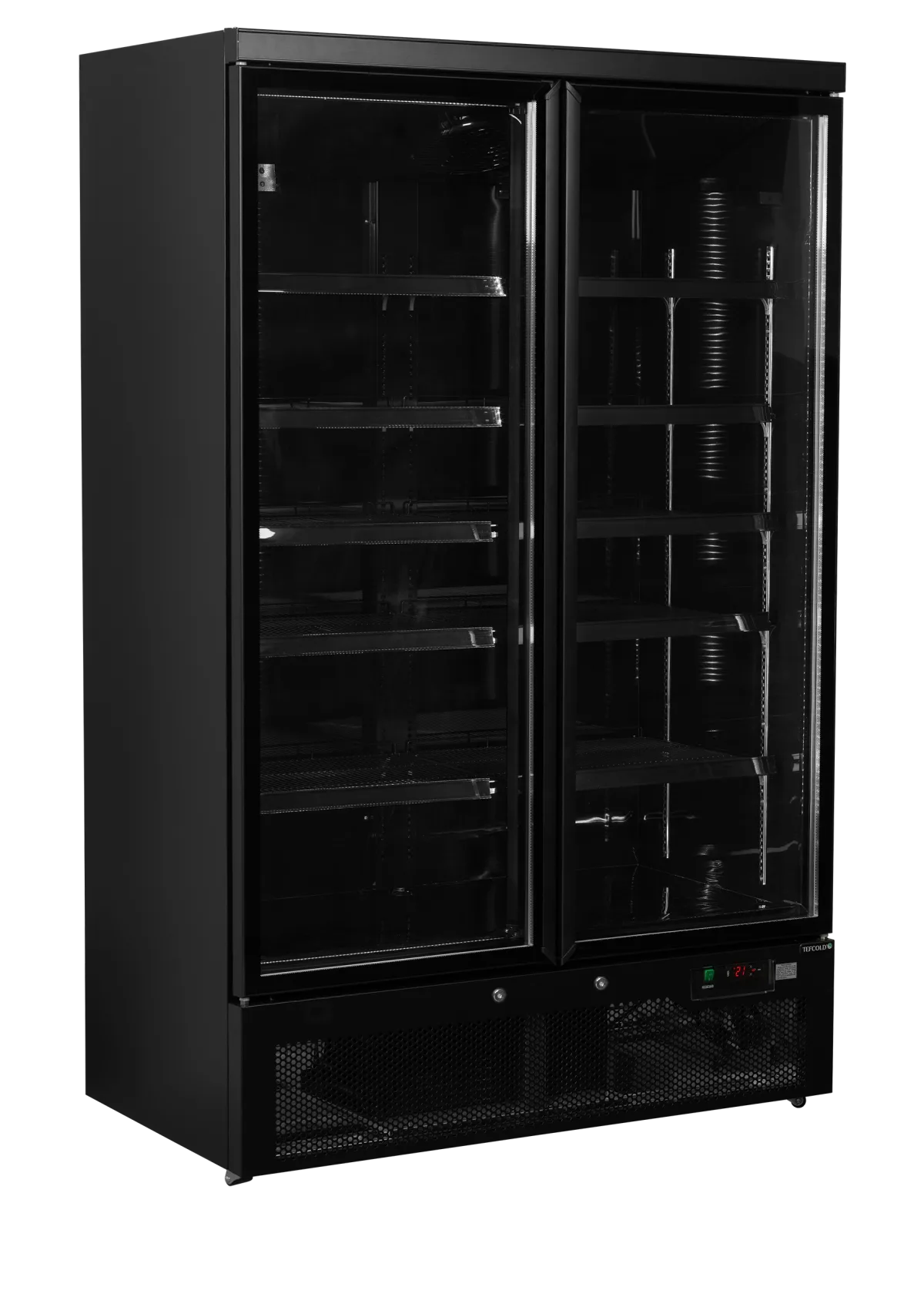

Atom Maxi C2DBB
Glass Door Merchandiser
Item no. 54347
EAN 5708181739553
- Black interior and exterior

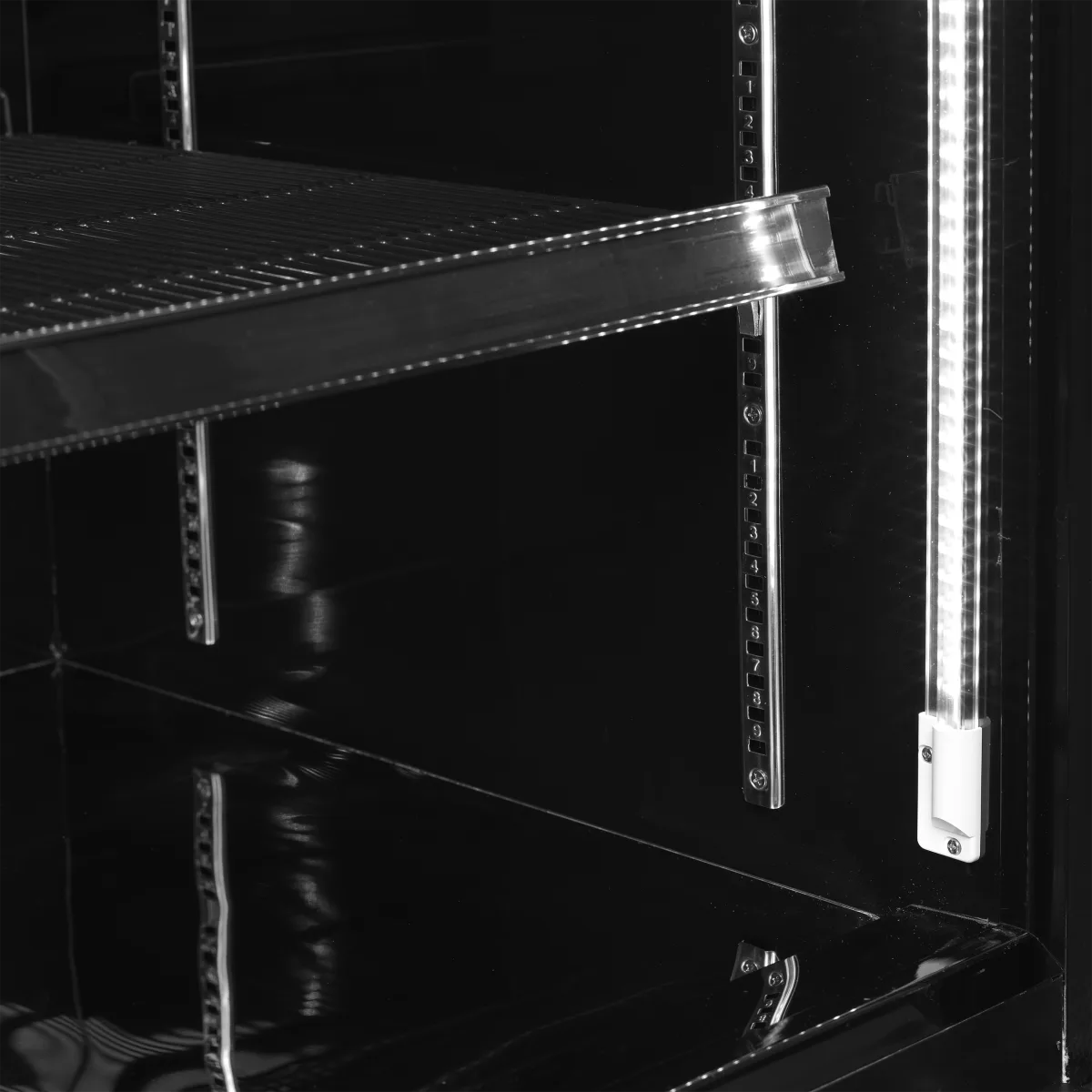

- Internal vertical LED light
- Low energy consumption
- Self-closing glass doors
- Ventilated cooling
- Adjustable shelves (split level)

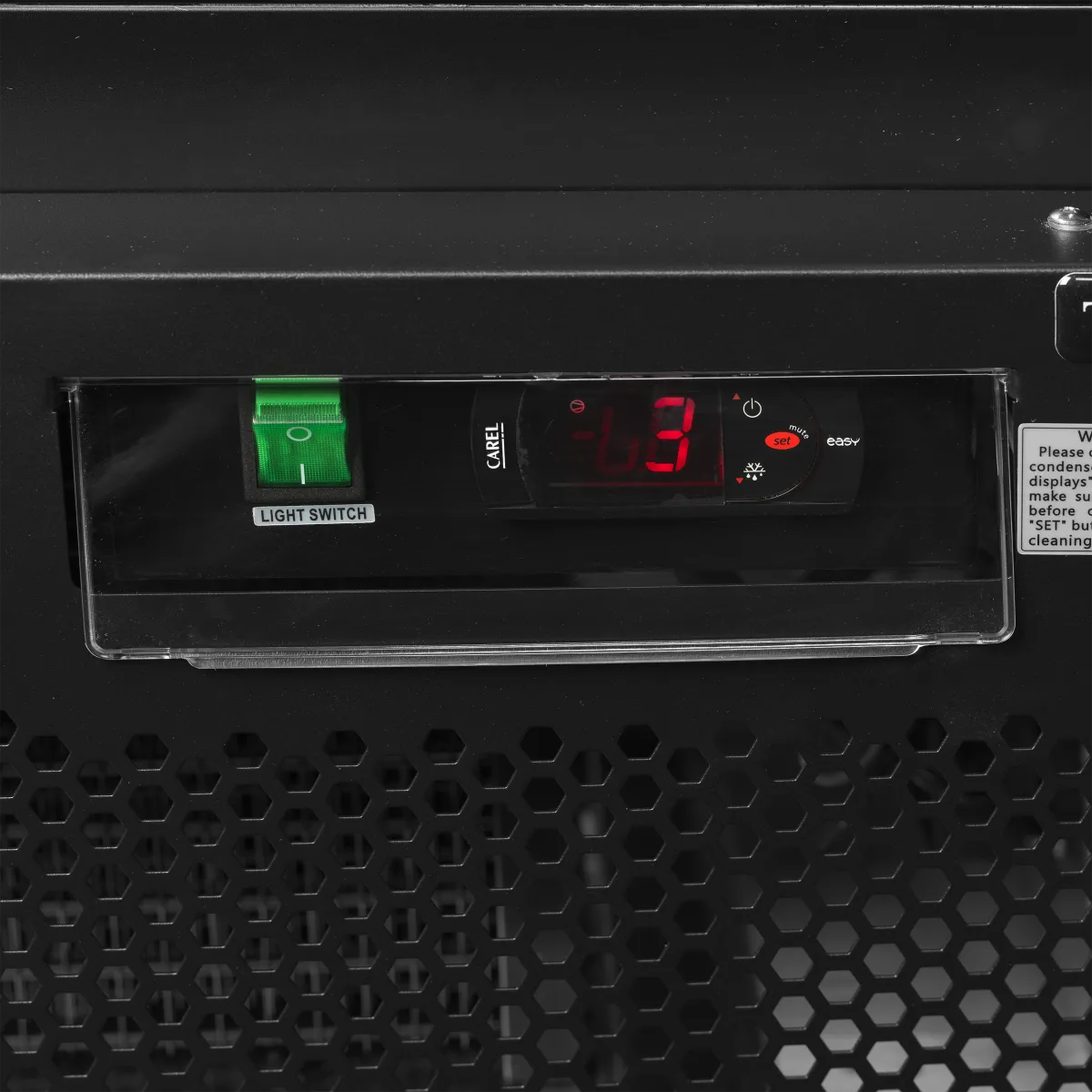

- Digital controller and temperature display
- Great product presentation
- Double glazed tempered glass
- Stainless steel base with mirror effect
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1253 x 710 x 2003 mm
Volume gross / net1081 / 809 l l
Temperature-1 to +10 °C
Weight gross / net197 / 179 kg kg
Energy classB
Specifications
| Gross / Net Weight | 197 / 179 kg |
|---|---|
| 40ft Container Load | 27 pcs |
| GTIN / EAN | 5708181739553 |
| Product Group - Delivery services | Group 3 |
| Bottles 330 ml | 630 pcs |
| Bottles 500 ml PET | 560 pcs |
| Cans 330 ml | 1120 pcs |
| Cans 500 ml | 672 pcs |
| Gross / Net Volume | 1081 / 809 l |
| Total Display Area | 1.58 m² |
| Temperature Range | -1 to +10 °C |
| Climate Class | 3 |
| Exterior Finish | Black RAL9005 |
| Interior Finish | Black |
| Door Number & Type | 2 hinged glass doors |
| Door Reversible | No |
| Shelves Number & Type | 10 adjustable |
| Shelf Color | Black |
| Shelf Dimensions | 566 x 480 mm |
| Max load on Shelves | 135 kg/m² |
| Castors | 4 castors |
| Lock | Yes |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic / Off Cycle |
| Refrigerant | R290 |
| Refrigerant Charge | 110 g |
| Thermometer | Yes |
| Energy Class | B |
| EPREL No | 1556583 |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 4.17 kWh/24h |
| Annual Energy Consumption | 1522 kWh/year |
| EEI | 19.7 % |
| Power | 13 Amp |
| Input Power | 460 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 62 dB(A) |
| External Dimension (WxDxH) | 1253 x 710 x 2003 mm |
| Internal Dimension (WxDxH) | 1163 x 595 x 1568 mm |
| Packed Dimension (WxDxH) | 1278 x 760 x 2090 mm |

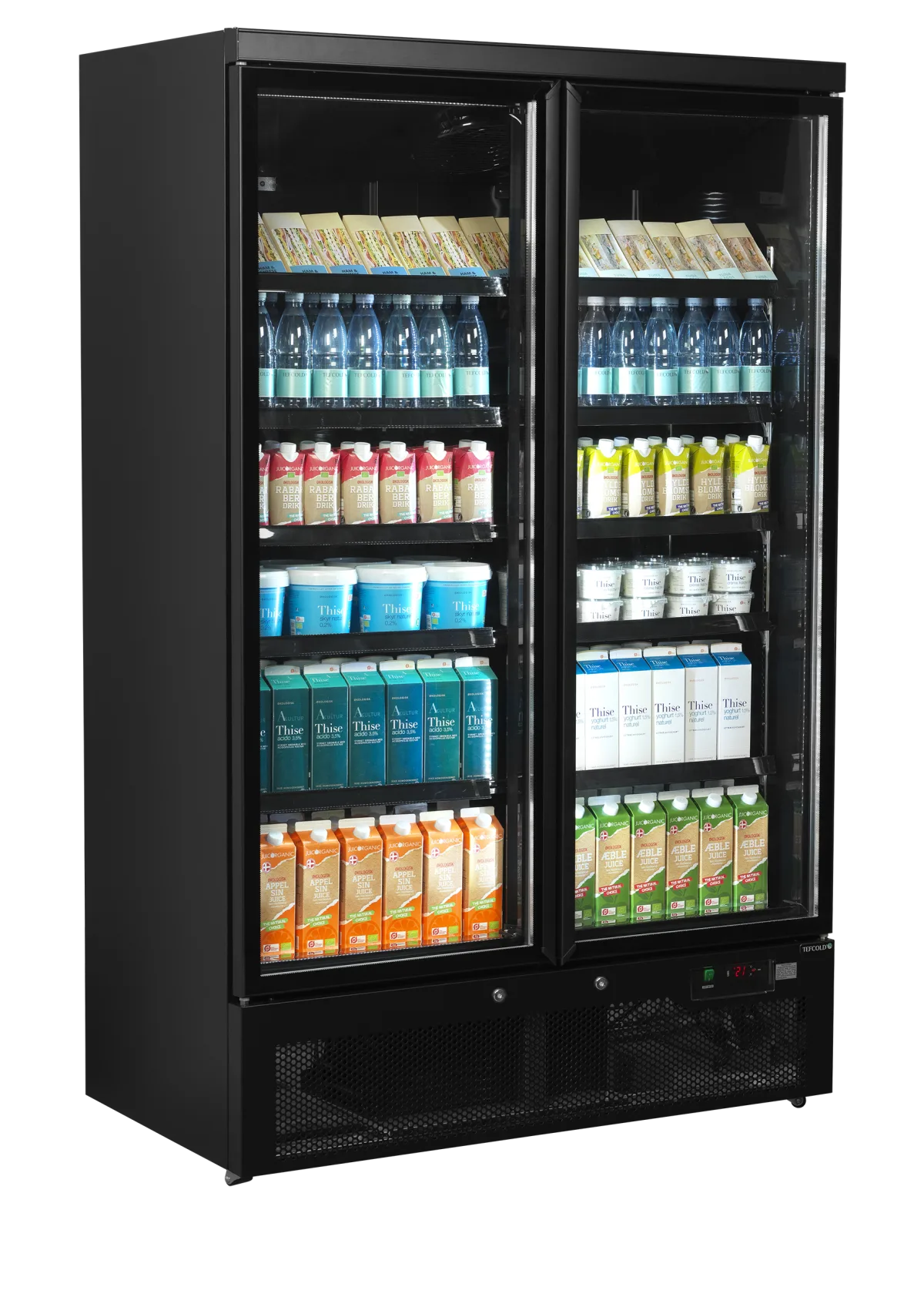

2 door chiller, black
The Atom Maxi range of glass door chillers is available in 1, 2 or 3 door options. Edge-to-edge "frameless" self-closing glass doors together with excellent storage capacity make it ideal for all types of frozen food displays. The canopy-less design makes it a favourite choice for shopfitters who use it in convenience stores, delis and butchers where a frozen selection gives customers extra choice.
