D
DKR-PRO
1100CHV WH
Island Site Freezer
Item no. 19273
EAN 5708181606862
- Flat sliding lids
- Static cooling
- Adjustable feet
- Thermometer
- Low maintenance condensor
- Bumper bars 1100CHV has a central partition
- Twin controllers on 1100CHV
- Defrost drain
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)2500 x 960 x 780 mm
Volume gross / net1032 / 805 l l
Temperature-22 to -18 °C
Weight gross / net200 / 125 kg kg
Energy classC
Specifications
| Gross / Net Weight | 200 / 125 kg |
|---|---|
| 40ft Container Load | 24 pcs |
| GTIN / EAN | 5708181606862 |
| Product Group - Delivery services | Group 4 |
| Gross / Net Volume | 1032 / 805 l |
| Total Display Area | 1.36 m² |
| Temperature Range | -22 to -18 °C |
| Climate Class | 3 |
| Exterior Finish | White |
| Interior Finish | White |
| Feet / Legs | 4 adjustable legs |
| Interior Light | LED as option |
| Type of Controller | Electronic |
| Type of Cooling | Static |
| Type of Defrost | Manual |
| Refrigerant | R290 |
| Refrigerant Charge | 2 x 85 g |
| Thermometer | Yes |
| Energy Class | C |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 4.9 kWh/24h |
| Annual Energy Consumption | 1789 kWh/year |
| EEI | 24.74 % |
| Power | 13 Amp |
| Input Power | 545 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 48 dB(A) |
| External Dimension (WxDxH) | 2500 x 960 x 780 mm |
| Internal Dimension (WxDxH) | 2280 x 790 x 485 mm |
| Packed Dimension (WxDxH) | 2590 x 1030 x 840 mm |
| Lid Number & Type | 4 flat sliding temp. glass lids |

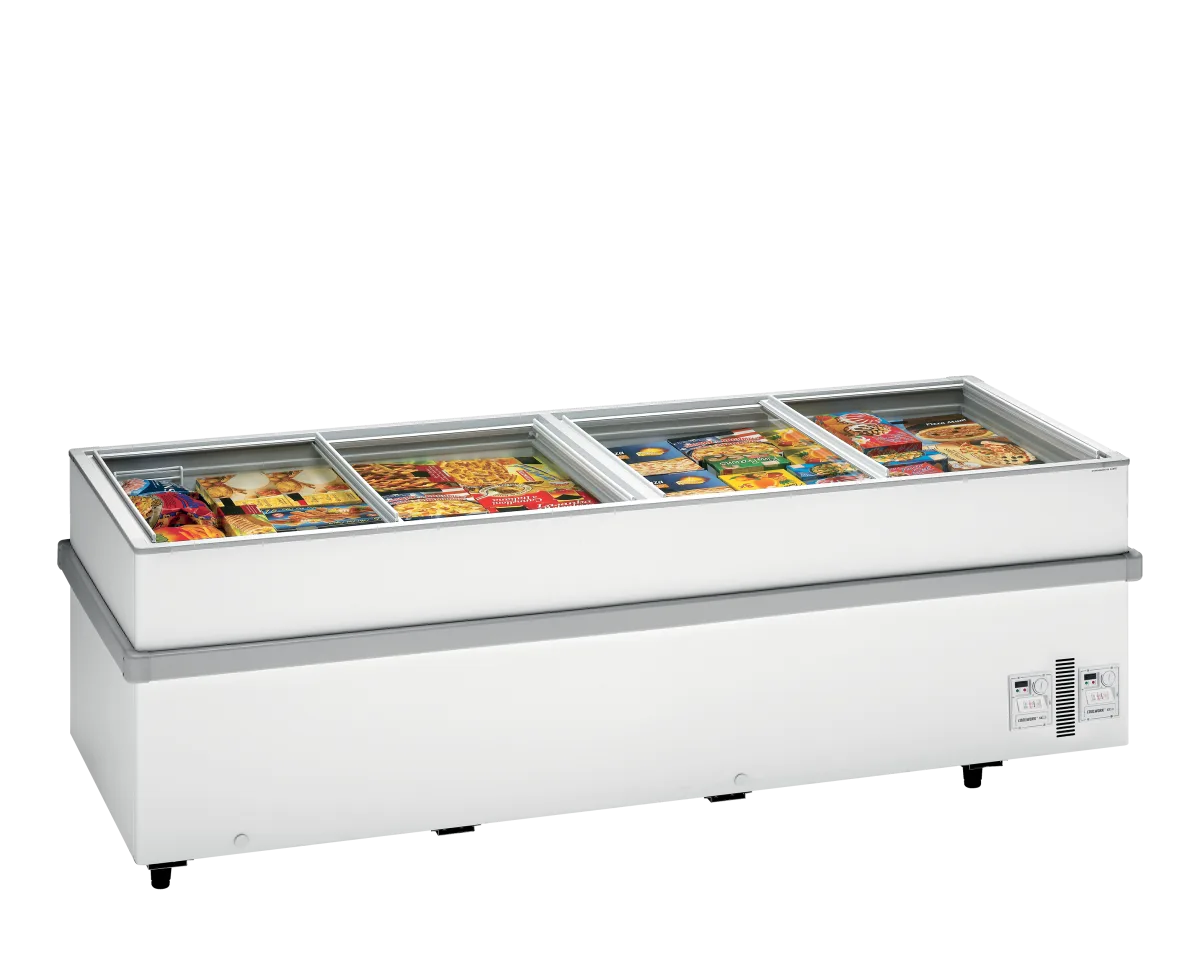

The excellent CHV range from Arcaboa is the industry standard for quality island site chest freezers. The 1100CHV is the most popular version with its huge 1032 litre capacity and large glass lids to create a great display. All controls are on the outside of the unit along with a temperature display. One of our best selling cabinets.
