C
DKR-PRO
UD2-32

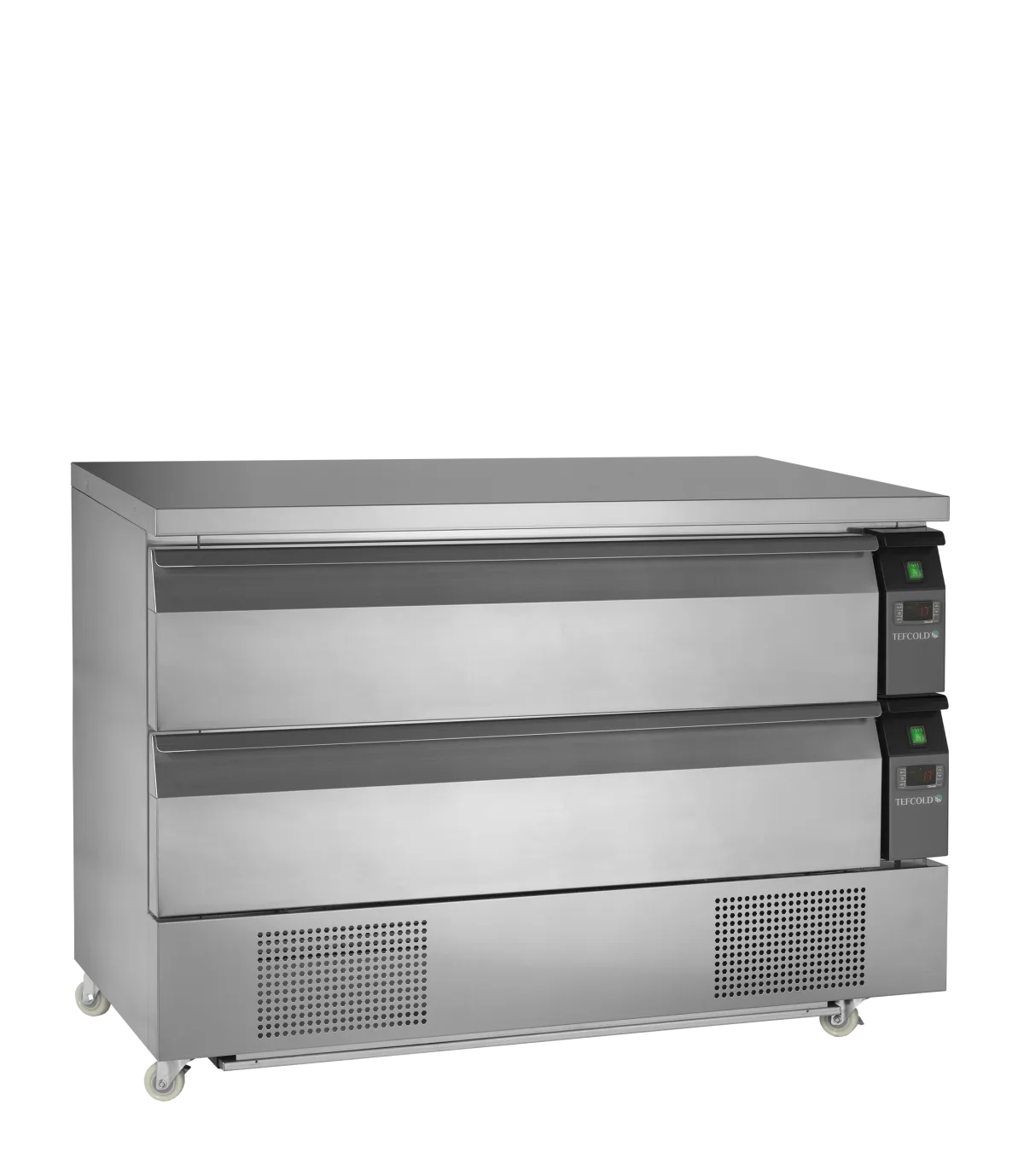

Dual Temperature Gastronorm Counter
Item no. 72279
EAN 5708181762728
- Dual temperature easily switchable between chiller and freezer
- Easily switchable between cooler and freezer

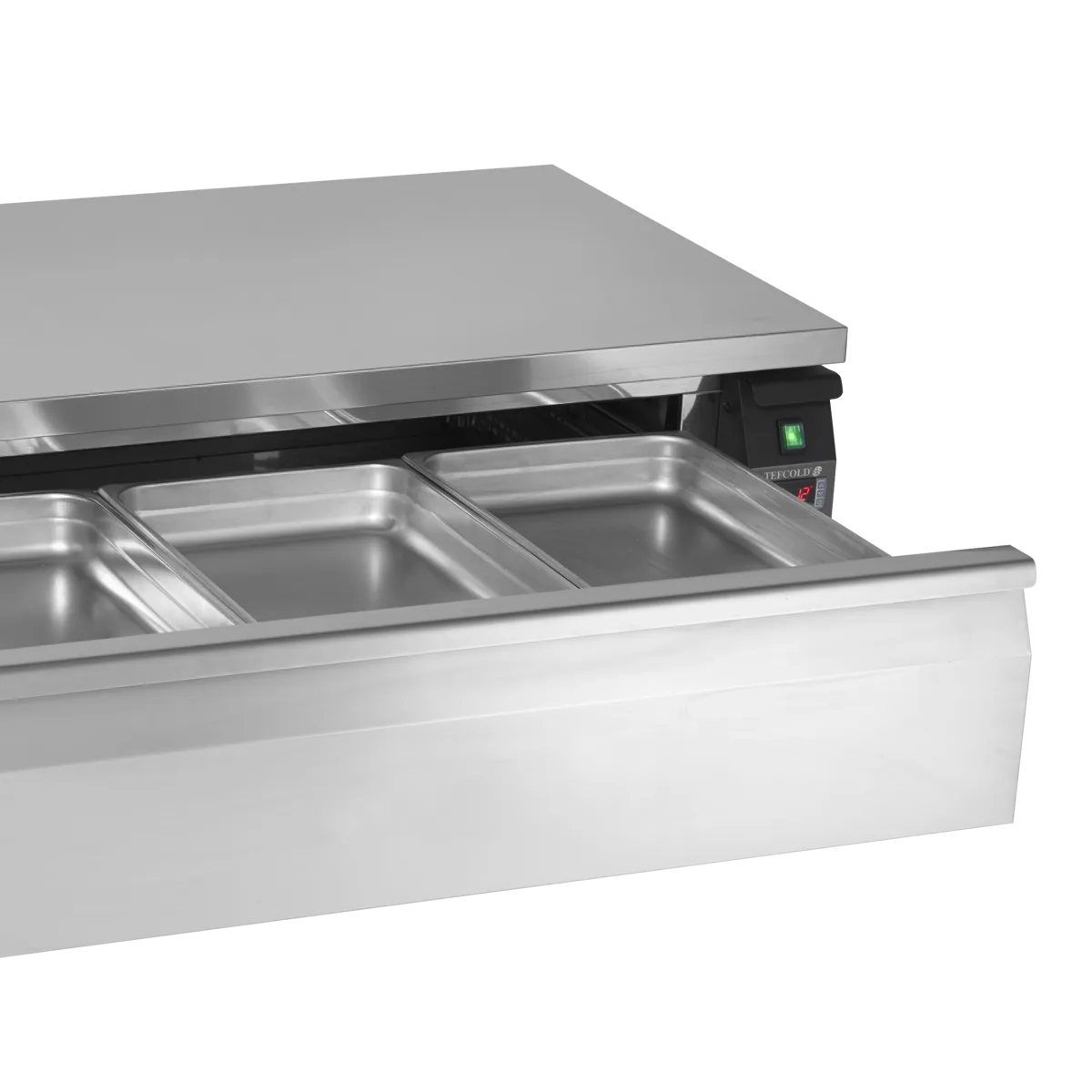

- Suitable for GN pans (max. depth 150 mm)
- Maximized storage space
- Ventilated cooling for fast pull-down and even temperature
- Automatic defrost
- Maximum load capacity per drawer: 60 kg
- Maximum load capacity of table top: 240 kg
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1230 x 700 x 870 mm
Volume gross / net265 / 154 l l
Temperature+2 to +8 / -18 to -22 °C
Weight gross / net154 / 131 kg kg
Energy classD
Specifications
| Gross / Net Weight | 154 / 131 kg |
|---|---|
| 40ft Container Load | 54 pcs |
| GTIN / EAN | 5708181762728 |
| Product Group - Delivery services | UN |
| Gross / Net Volume | 265 / 154 l |
| Temperature Range | +2 to +8 / -18 to -22 °C |
| Insulation Density | 38 kg/m³ |
| Climate Class | 4 |
| Exterior Finish | SS304 |
| Interior Finish | SS304 |
| Door Number & Type | 2 |
| Castors | Castors |
| Lock | No |
| Drawers | 2 pcs |
| Interior Light | No |
| Type of Cooling | Ventilated |
| Refrigerant | R290 |
| Refrigerant Charge | 70×2 g |
| Energy Class | D |
| EPREL No | 2650570 |
| Max Ambient | +30°C, 55% RH |
| Energy Consumption | 6.64 kWh/24h |
| Annual Energy Consumption | 2423.6 kWh/year |
| EEI | 73.9 % |
| Input Power | 500 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 42 dB(A) |
| External Dimension (WxDxH) | 1230 x 700 x 870 mm |
| Internal Dimension (WxDxH) | 1000 x 565 x 470 mm |
| Packed Dimension (WxDxH) | 1300 x 760 x 965 mm |
The super versatile Uni-Drawer system (sometimes called underbroilers, lowboys or chef-bases) allows you to choose to have the drawer as either a chiller or freezer. Ideal for busy kitchens where you require chilled or frozen food immediately to hand for food preparation. Drawers accept gastronorm pans up to 150mm deep (drawers can be used with or without gastronorm pans). Top is suitable for a range of appliances.
