B
DKR-PRO
UD2-3

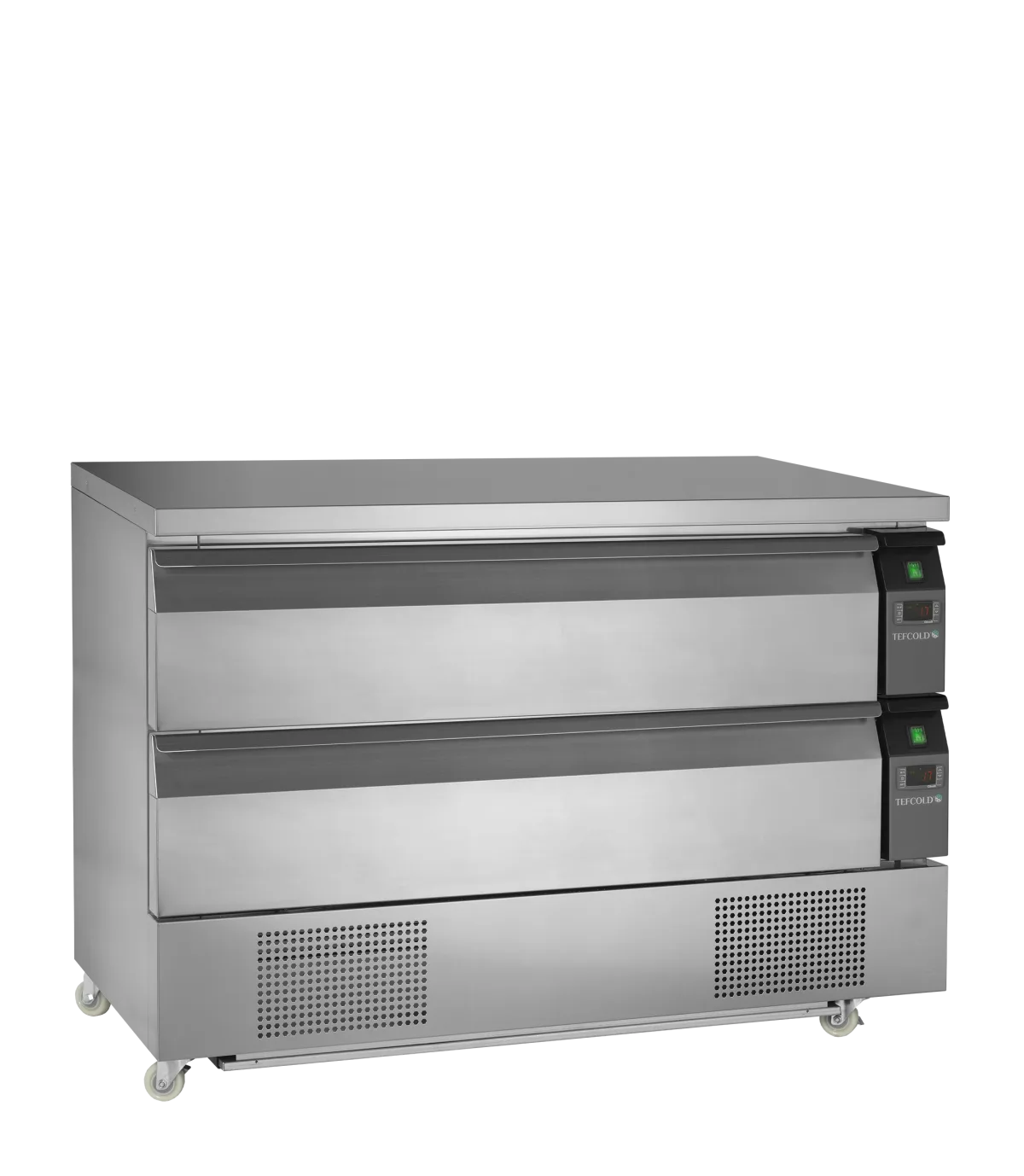

Dual Temperature Gastronorm Counter
Item no. 20092
EAN 5708181360931
- Dual temperature easily switchable between chiller and freezer
- Fan assisted cooling

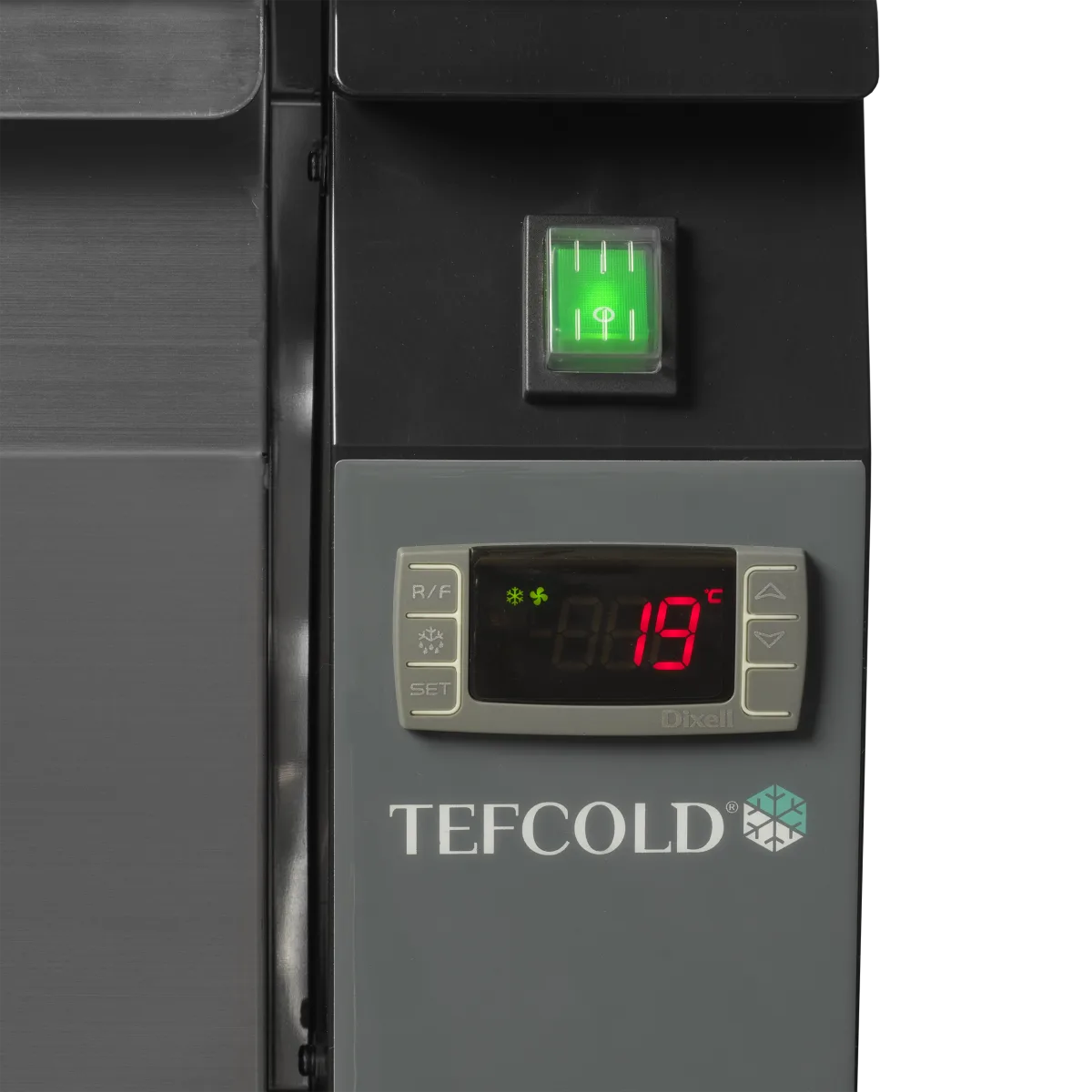

- Digital controller and temperature display
- High quality stainless steel SS304
- Replaceable door gasket

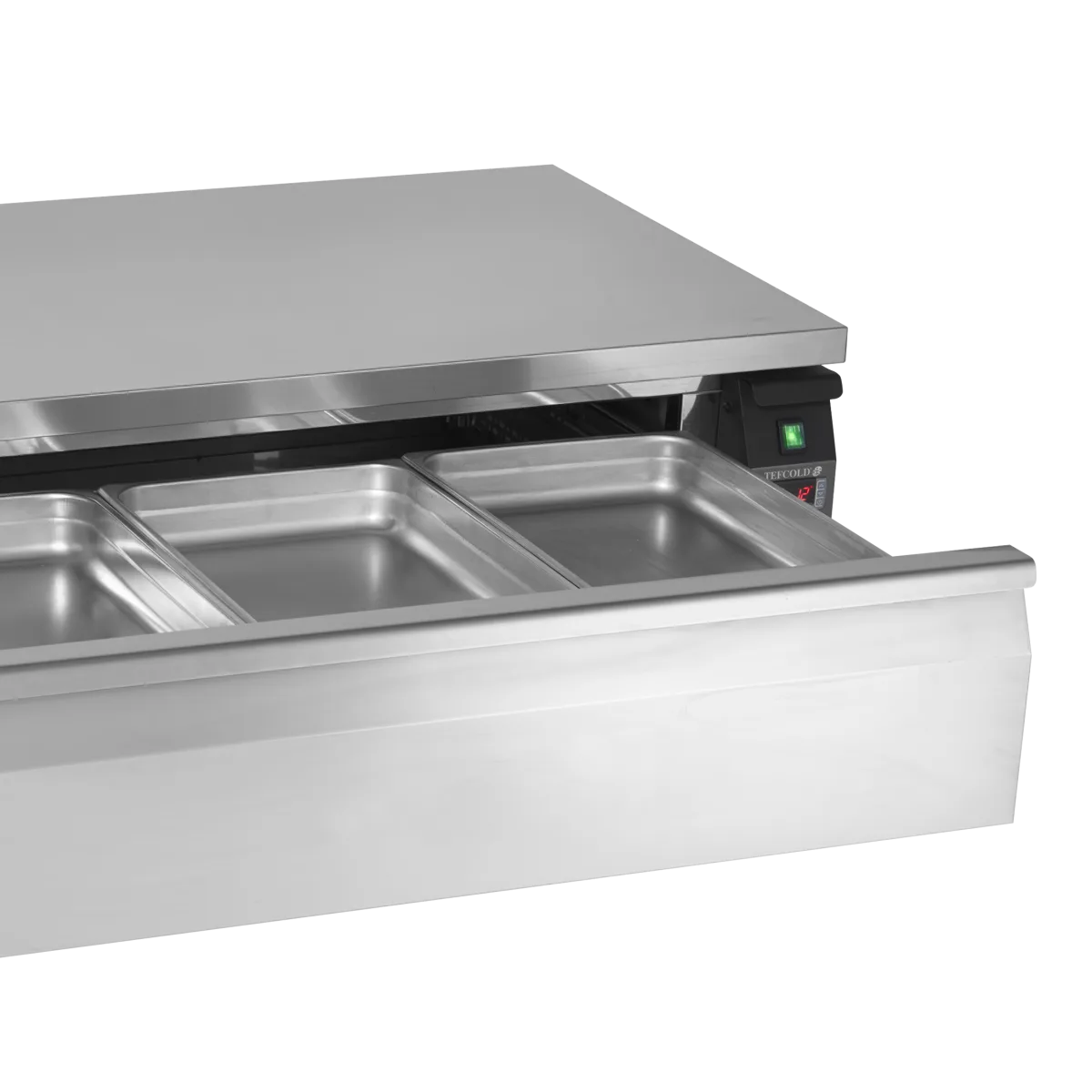

- Drawer can be used with or without gastronorm pans
- Max weight per drawer - 50kg. Total weight loading for unit 300kg
- Castors, 2 lockable
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1230 x 700 x 865 mm
Volume gross / net265 / 154 l l
Temperature+1 to +4 / -24 to -18 °C
Weight gross / net154 / 131 kg kg
Energy classG
Specifications
| Gross / Net Weight | 154 / 131 kg |
|---|---|
| Gross / Net Volume | 265 / 154 l |
| Capacity GN Pans | 6 x GN1/1 pcs |
| Temperature Range | +1 to +4 / -24 to -18 °C |
| Exterior Finish | Stainless steel |
| Interior Finish | Stainless steel |
| Type of Controller | Electronic |
| Type of Defrost | Automatic, hot gas |
| Refrigerant | R290 |
| Refrigerant Charge | 140 g |
| Max Ambient | +40°C, 40% RH |
| Input Power | 500 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 42 dB(A) |
| External Dimension (WxDxH) | 1230 x 700 x 865 mm |
| Internal Dimension (WxDxH) | 1000 x 565 x 205 mm |
| Packed Dimension (WxDxH) | 1310 x 770 x 1000 mm |
| 40ft Container Load | 48 pcs |
| GTIN / EAN | 5708181360931 |
| Product Group - Delivery services | Group 2 |
| Climate Class | 5 |
| Castors | 4 wheels, 2 with brake |
| Type of Cooling | Ventilated |
| Thermometer | Yes |
| Energy Class | G |
| EPREL No | 1963069 |
| Energy Consumption | 10.17 kWh/24h |
| Annual Energy Consumption | 3712 kWh/year |
| EEI | 133.2 % |
| Power | 13 Amp |
| Drawers | 2 pcs |
The super versatile Uni-Drawer system (sometimes called underbroilers, lowboys or chef-bases) allows you to choose to have the drawer as either a chiller or freezer. As the drawers of the two drawer version are operated independently, one can be used as a chiller while the other is set as a freezer if required. Ideal for busy kitchens where you require chilled or frozen food immediately to hand for food preparation. Drawers accept gastronorm pans up to 150mm deep (drawers can be used with or without gastronorm pans). Top is suitable for a range of appliances.
