B
DKR-PRO
UD1-3

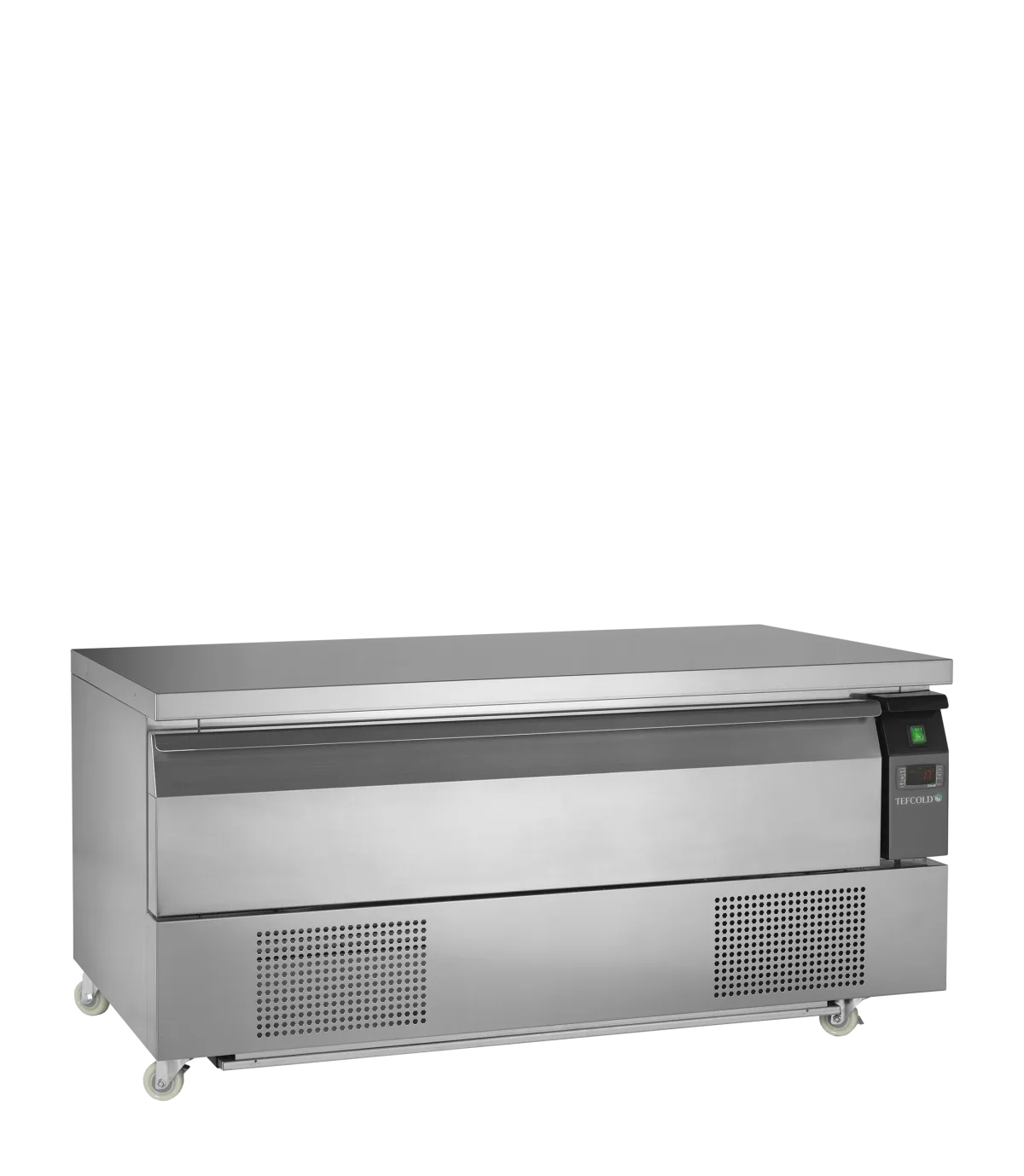

Dual Temperature Gastronorm Counter
Item no. 20090
EAN 5708181360917
- Dual temperature easily switchable between chiller and freezer
- Fan assisted cooling

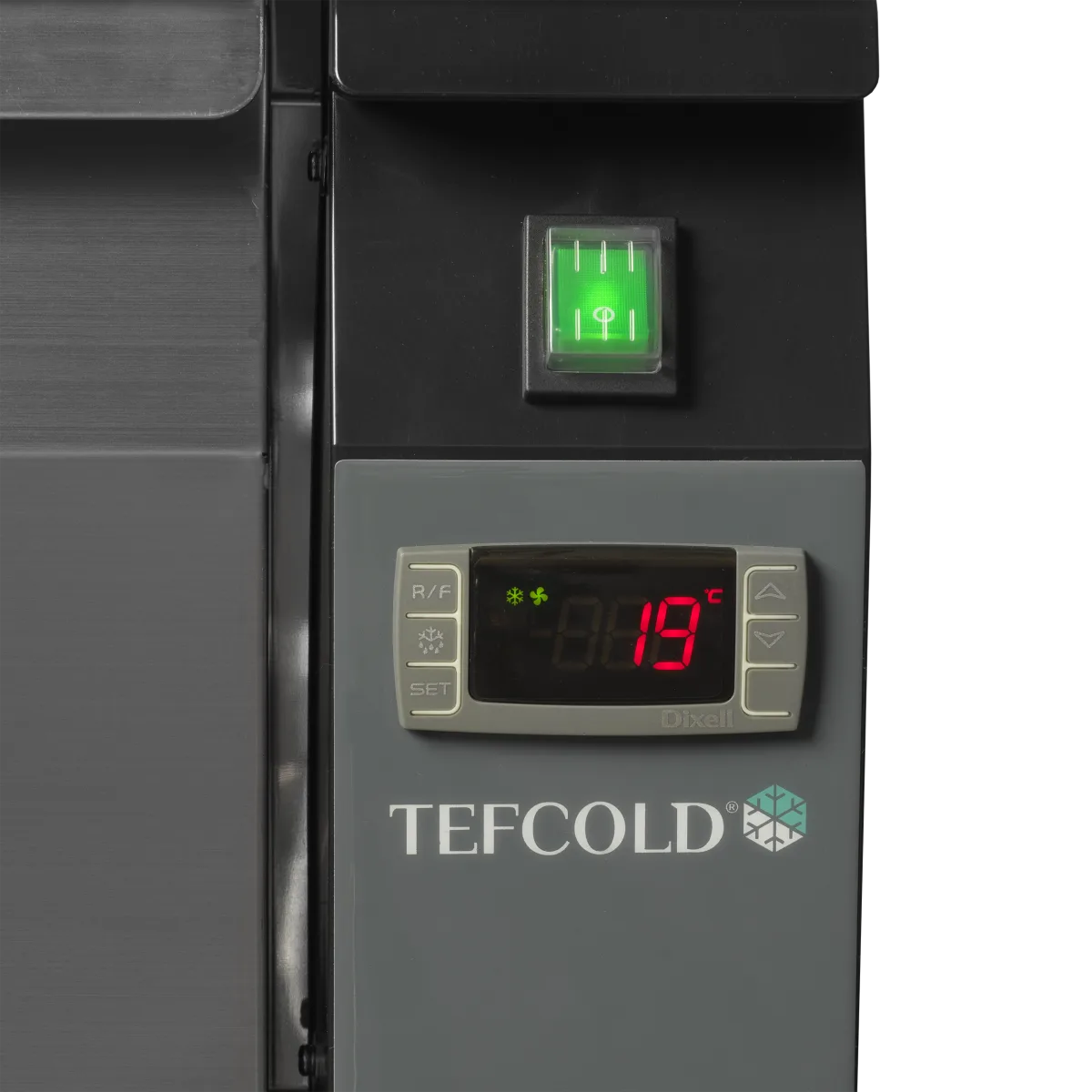

- Digital controller and temperature display
- High quality catering grade 304 stainless steel
- Replaceable drawer gasket

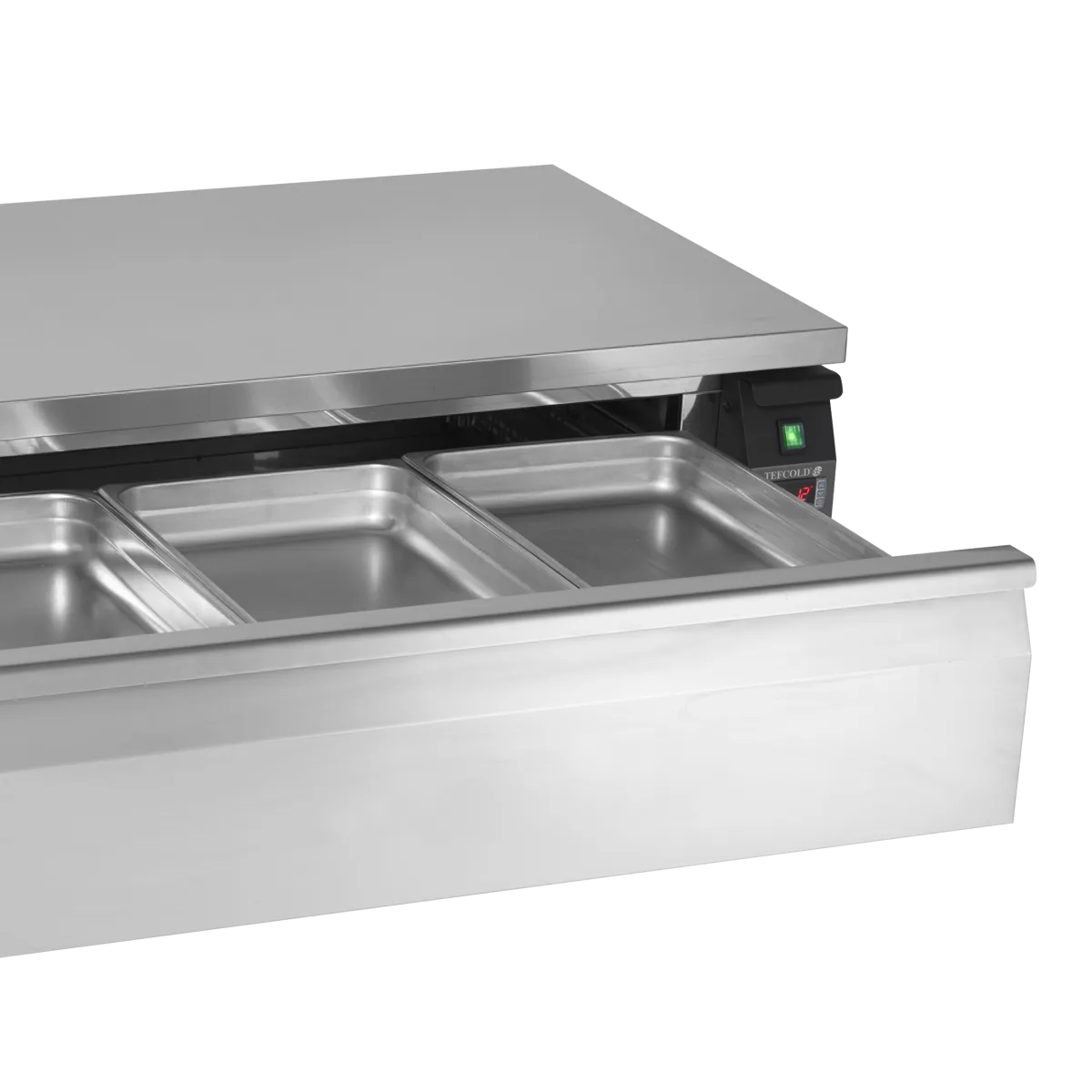

- Drawer can be used with or without gastronorm pans
- Max weight per drawer - 50kg. Total weight loading for unit 300kg
- Castors, 2 lockable
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1230 x 700 x 600 mm
Volume gross / net116 / 77 l l
Temperature+1 to +4 / -24 to -18 °C
Weight gross / net105 / 90 kg kg
Energy classE
Specifications
| Gross / Net Weight | 105 / 90 kg |
|---|---|
| Gross / Net Volume | 116 / 77 l |
| Capacity GN Pans | 3 x GN1/1 pcs |
| Temperature Range | +1 to +4 / -24 to -18 °C |
| Exterior Finish | Stainless steel |
| Interior Finish | Stainless steel |
| Type of Controller | Electronic |
| Type of Defrost | Automatic, hot gas |
| Refrigerant | R290 |
| Refrigerant Charge | 70 g |
| Max Ambient | +40°C, 40% RH |
| Input Power | 270 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 42 dB(A) |
| External Dimension (WxDxH) | 1230 x 700 x 600 mm |
| Internal Dimension (WxDxH) | 1000 x 565 x 205 mm |
| Packed Dimension (WxDxH) | 1310 x 770 x 740 mm |
| 40ft Container Load | 72 pcs |
| GTIN / EAN | 5708181360917 |
| Product Group - Delivery services | Group 2 |
| Climate Class | 5 |
| Castors | 4 wheels, 2 with brake |
| Type of Cooling | Ventilated |
| Thermometer | Yes |
| Energy Class | E |
| EPREL No | 1963052 |
| Energy Consumption | 6.05 kWh/24h |
| Annual Energy Consumption | 2208 kWh/year |
| EEI | 78 % |
| Power | 13 Amp |
| Drawers | 1 pcs |
UD1-3 is a dual temperature gastronorm counter, built for busy shops, cafes, restaurants and professional kitchens. It measures 1230 x 700 x 600 mm (W x D x H), offers 77 litres net (116 litres gross) of storage and holds a temperature range of +1 to +4 / -24 to -18 °C. The unit is rated energy class E. Key features include dual temperature easily switchable between chiller and freezer, fan assisted cooling and digital controller and temperature display. Order online from Dekso Cooling with secure payment and UK delivery, or contact our team for advice and volume pricing.
