New A
DKR-PRO
UD1-22

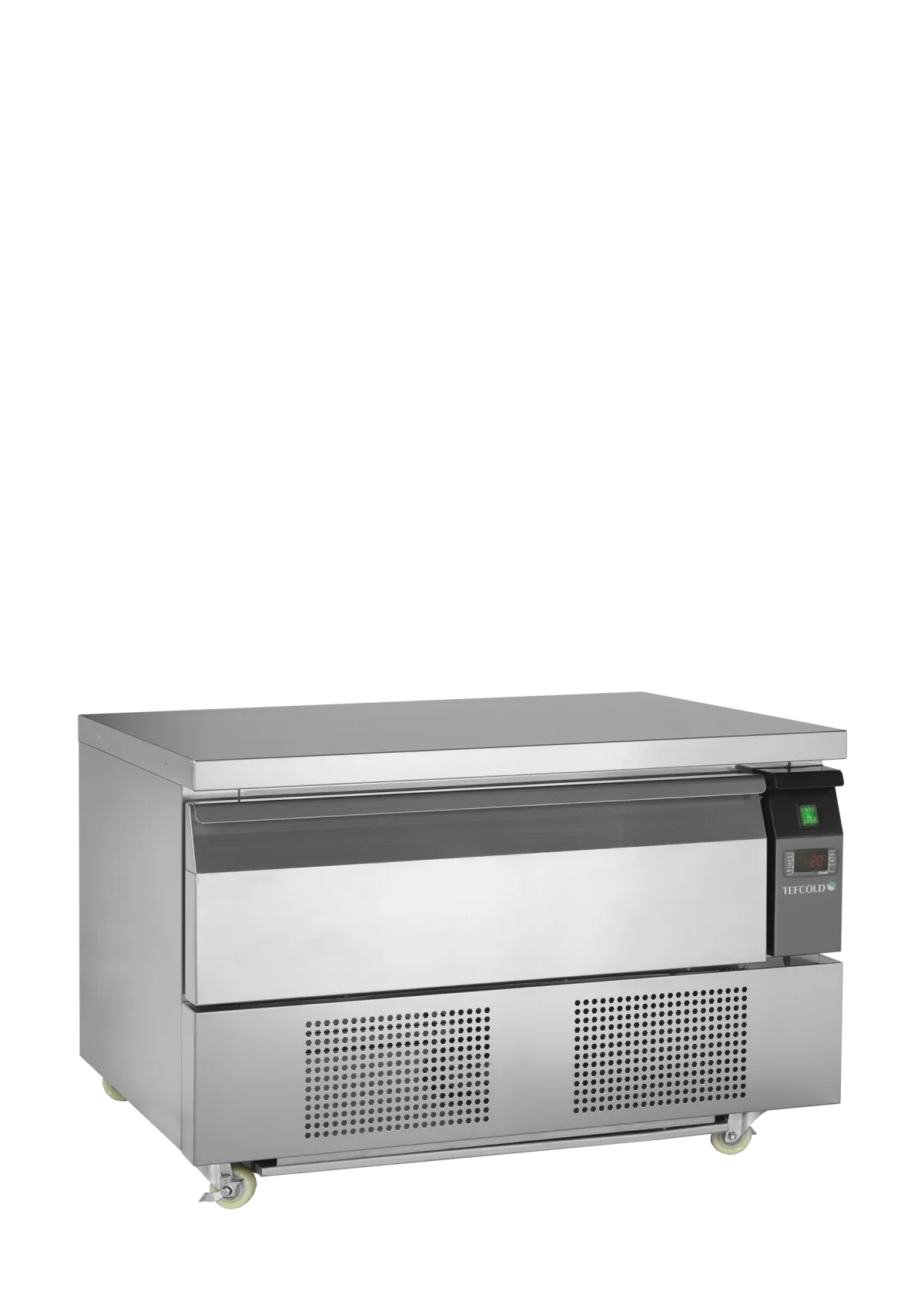

Dual Temperature Gastronorm Counter
Item no. 72270
EAN 5708181762667
- Easily switchable between cooler and freezer
- Maximized storage space

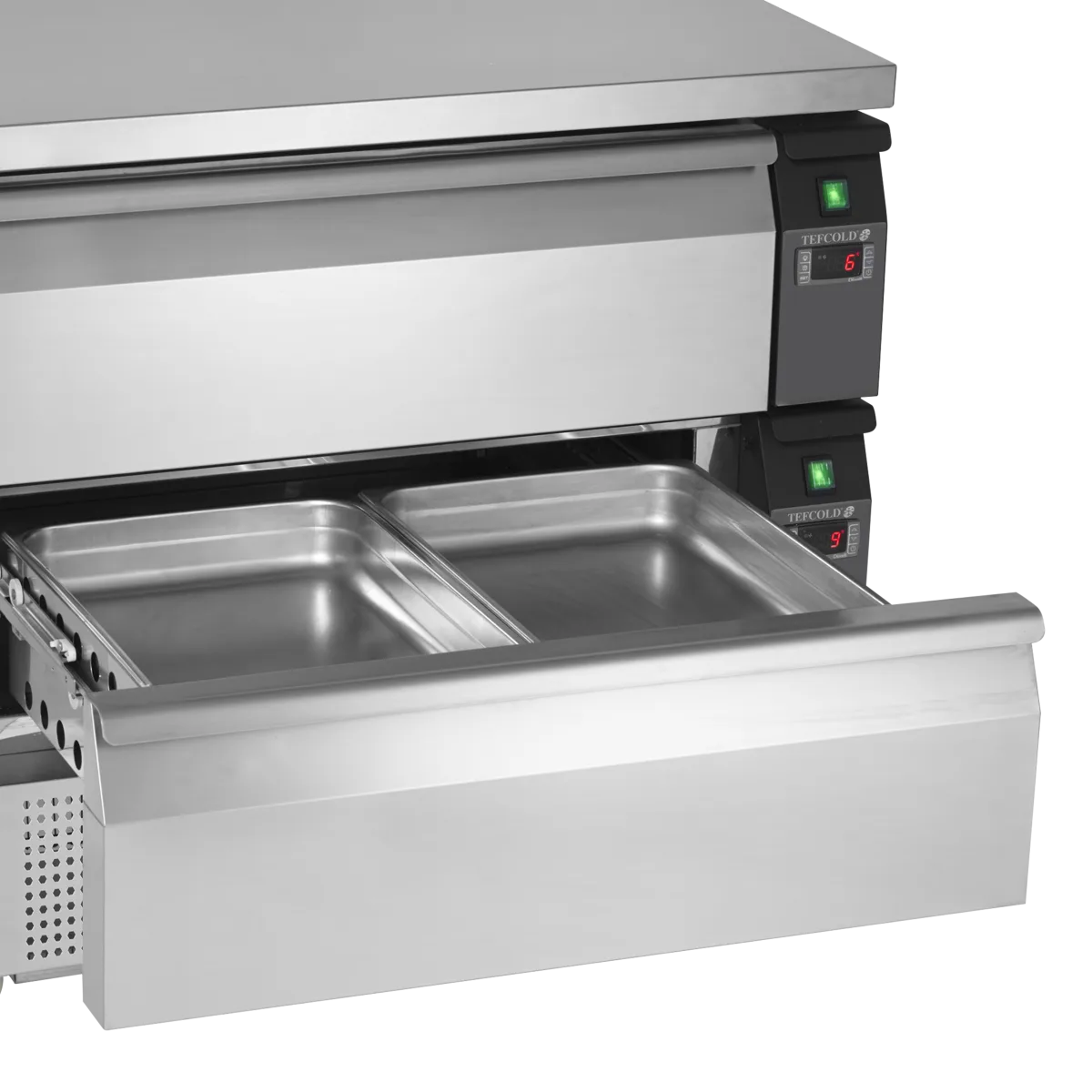

- Suitable for GN pans (max. depth 150 mm)
- Ventilated cooling for fast pull-down and even temperature
- Automatic defrost
- Maximum load capacity per drawer: 60 kg
- Maximum load capacity of table top: 240 kg
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)905 x 700 x 605 mm
Volume gross / net78 / 51 l l
Temperature+2 to +8 / -18 to -22 °C
Weight gross / net82 / 72 kg kg
Energy classC
Specifications
| Gross / Net Weight | 82 / 72 kg |
|---|---|
| 40ft Container Load | 108 pcs |
| GTIN / EAN | 5708181762667 |
| Product Group - Delivery services | UN |
| Gross / Net Volume | 78 / 51 l |
| Temperature Range | +2 to +8 / -18 to -22 °C |
| Insulation Density | 38 kg/m³ |
| Climate Class | 4 |
| Exterior Finish | SS304 |
| Interior Finish | SS304 |
| Door Number & Type | 1 |
| Castors | Castors |
| Lock | No |
| Drawers | 1 pcs |
| Interior Light | No |
| Type of Cooling | Ventilated |
| Refrigerant | R290 |
| Refrigerant Charge | 70 g |
| Energy Class | C |
| EPREL No | 2649559 |
| Max Ambient | +30°C, 55% RH |
| Energy Consumption | 3.3 kWh/24h |
| Annual Energy Consumption | 1204.5 kWh/year |
| EEI | 45 % |
| Input Power | 240 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 42 dB(A) |
| External Dimension (WxDxH) | 905 x 700 x 605 mm |
| Internal Dimension (WxDxH) | 675 x 565 x 205 mm |
| Packed Dimension (WxDxH) | 975 x 760 x 700 mm |
The super versatile Uni-Drawer system (sometimes called underbroilers, lowboys or chef-bases) allows you to choose to have the drawer as either a chiller or freezer. Ideal for busy kitchens where you require chilled or frozen food immediately to hand for food preparation. Drawers accept gastronorm pans up to 150mm deep (drawers can be used with or without gastronorm pans). Top is suitable for a range of appliances.
