B
DKR-PRO
UD1-2

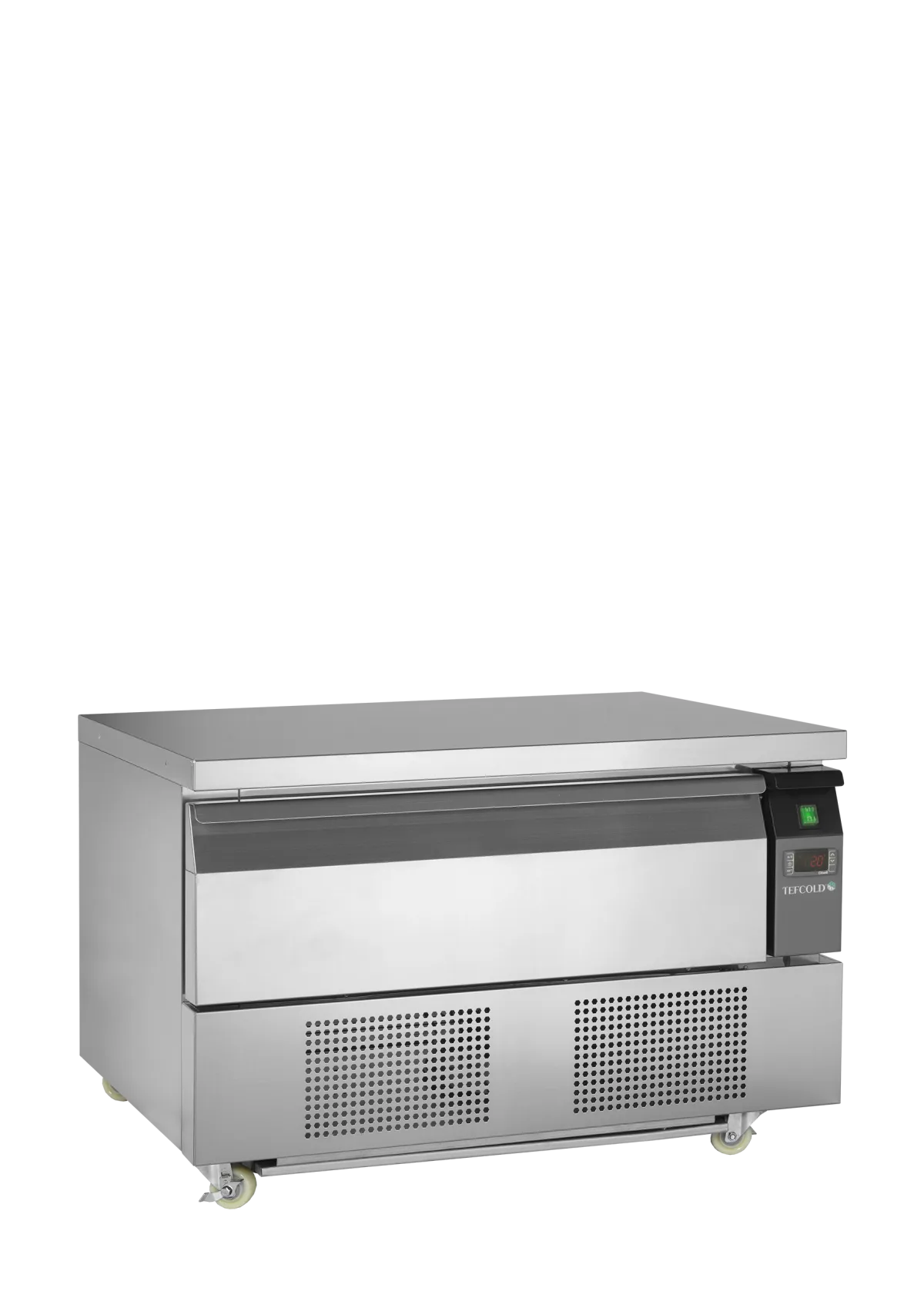

Dual Temperature Gastronorm Counter
Item no. 20089
EAN 5708181360900
- Dual temperature easily switchable between chiller and freezer
- Fan assisted cooling

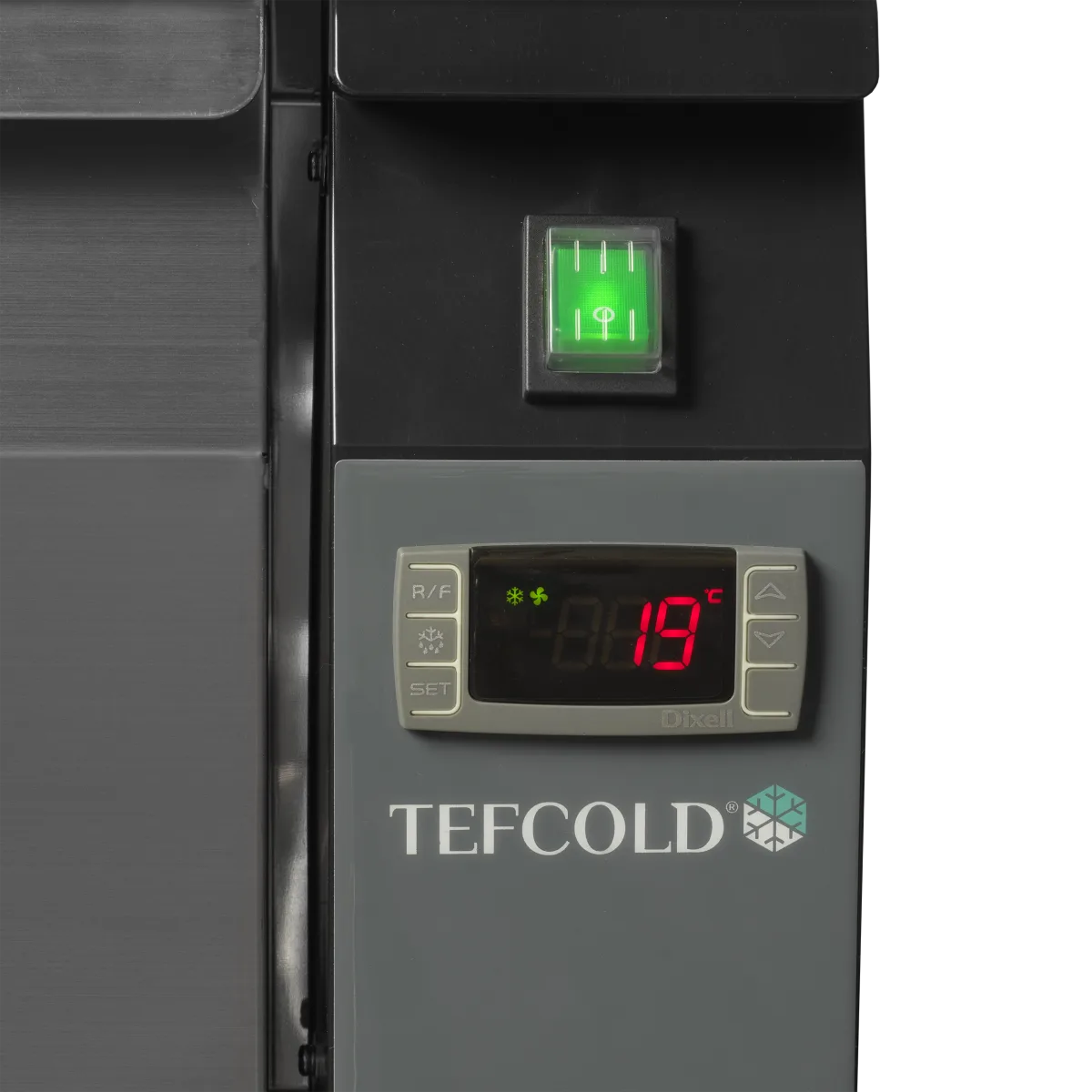

- Digital controller and temperature display
- High quality catering grade 304 stainless steel
- Replaceable drawer gasket

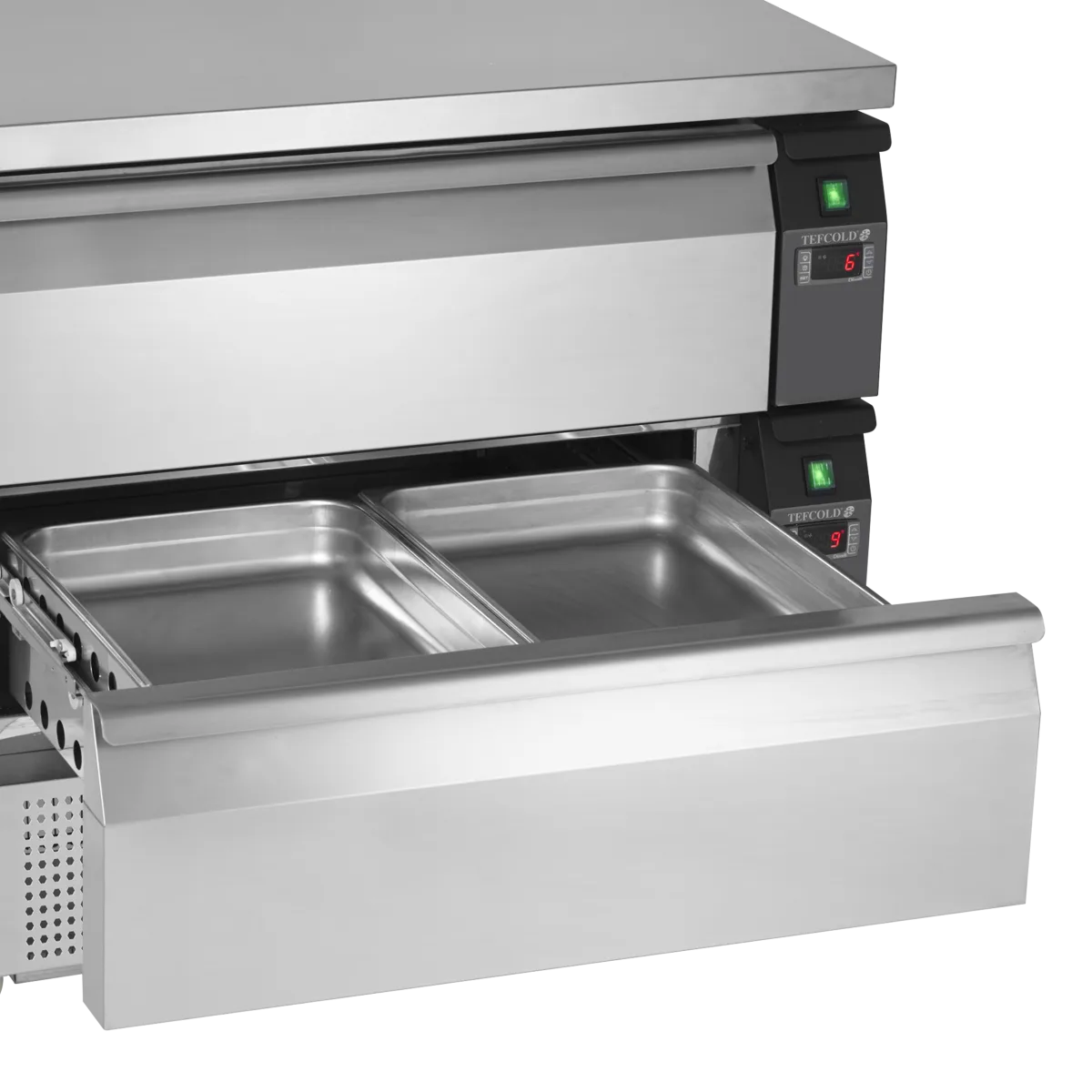

- Drawer can be used with or without gastronorm pans
- Max weight per drawer - 50kg. Total weight loading for unit 300kg
- Castors, 2 lockable
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)905 x 700 x 600 mm
Volume gross / net78 / 51 l l
Temperature+1 to +4 / -24 to -18 °C
Weight gross / net82 / 72 kg kg
Energy classD
Specifications
| Gross / Net Weight | 82 / 72 kg |
|---|---|
| 40ft Container Load | 90 pcs |
| GTIN / EAN | 5708181360900 |
| Product Group - Delivery services | Group 2 |
| Gross / Net Volume | 78 / 51 l |
| Temperature Range | +1 to +4 / -24 to -18 °C |
| Climate Class | 5 |
| Exterior Finish | Stainless steel |
| Interior Finish | Stainless steel |
| Castors | 4 wheels, 2 with brake |
| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic, hot gas |
| Refrigerant | R290 |
| Refrigerant Charge | 70 g |
| Thermometer | Yes |
| Energy Class | D |
| EPREL No | 1963039 |
| Max Ambient | +40°C, 40% RH |
| Energy Consumption | 4.85 kWh/24h |
| Annual Energy Consumption | 1770 kWh/year |
| EEI | 66.1 % |
| Power | 13 Amp |
| Input Power | 240 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 42 dB(A) |
| External Dimension (WxDxH) | 905 x 700 x 600 mm |
| Internal Dimension (WxDxH) | 675 x 565 x 205 mm |
| Packed Dimension (WxDxH) | 980 x 770 x 740 mm |
| Capacity GN Pans | 2 x GN1/1 pcs |
| Drawers | 1 pcs |
The super versatile Uni-Drawer system (sometimes called underbroilers, lowboys or chef-bases) allows you to choose to have the drawer as either a chiller or freezer. Ideal for busy kitchens where you require chilled or frozen food immediately to hand for food preparation. Drawers accept gastronorm pans up to 150mm deep (drawers can be used with or without gastronorm pans). Top is suitable for a range of appliances.
