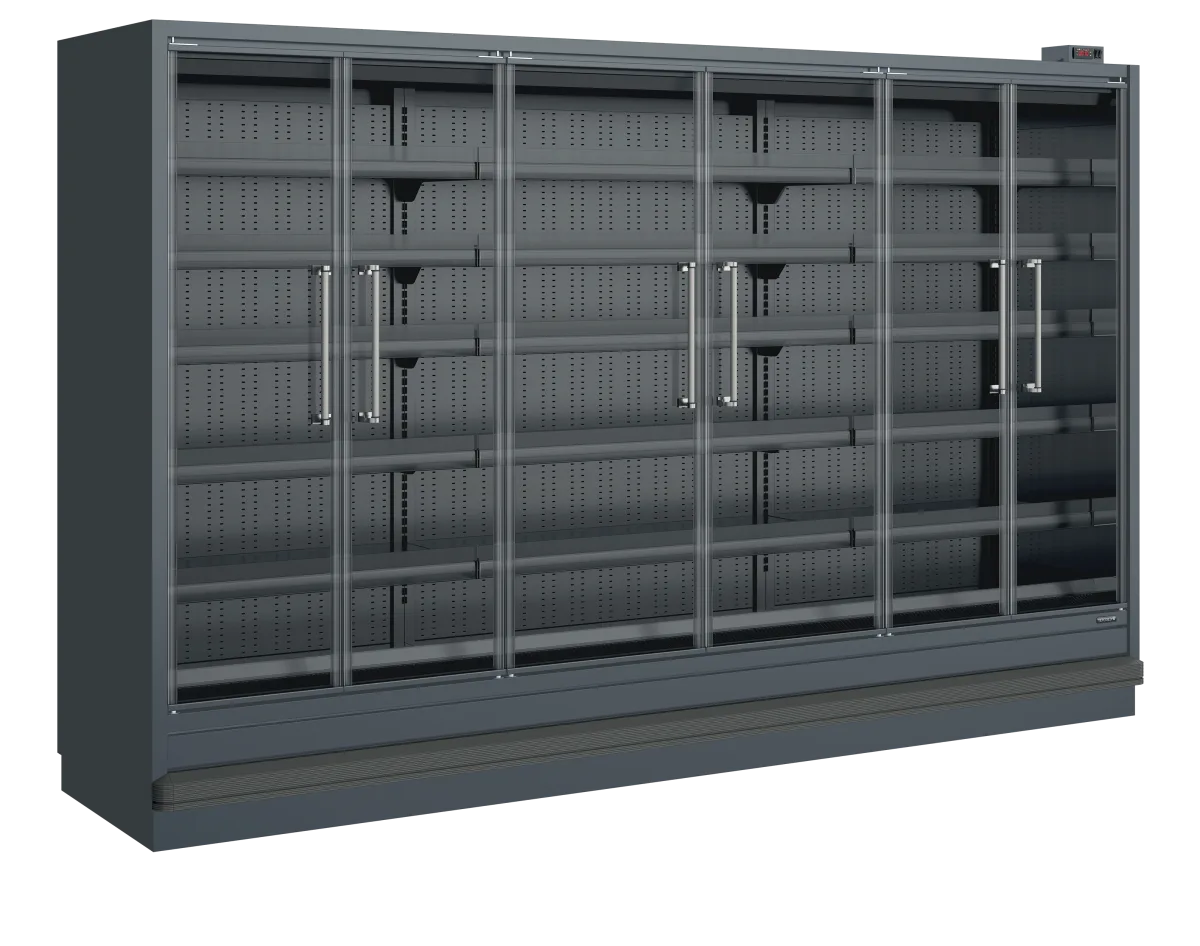

Trojan T32 FGD EHA
Remote Multideck - Extended Height
Item no. 68211
EAN 5708181753504
- Colour is anthracite RAL7016
- Requires remote refrigeration system (not supplied)
- Horizontal LED lighting

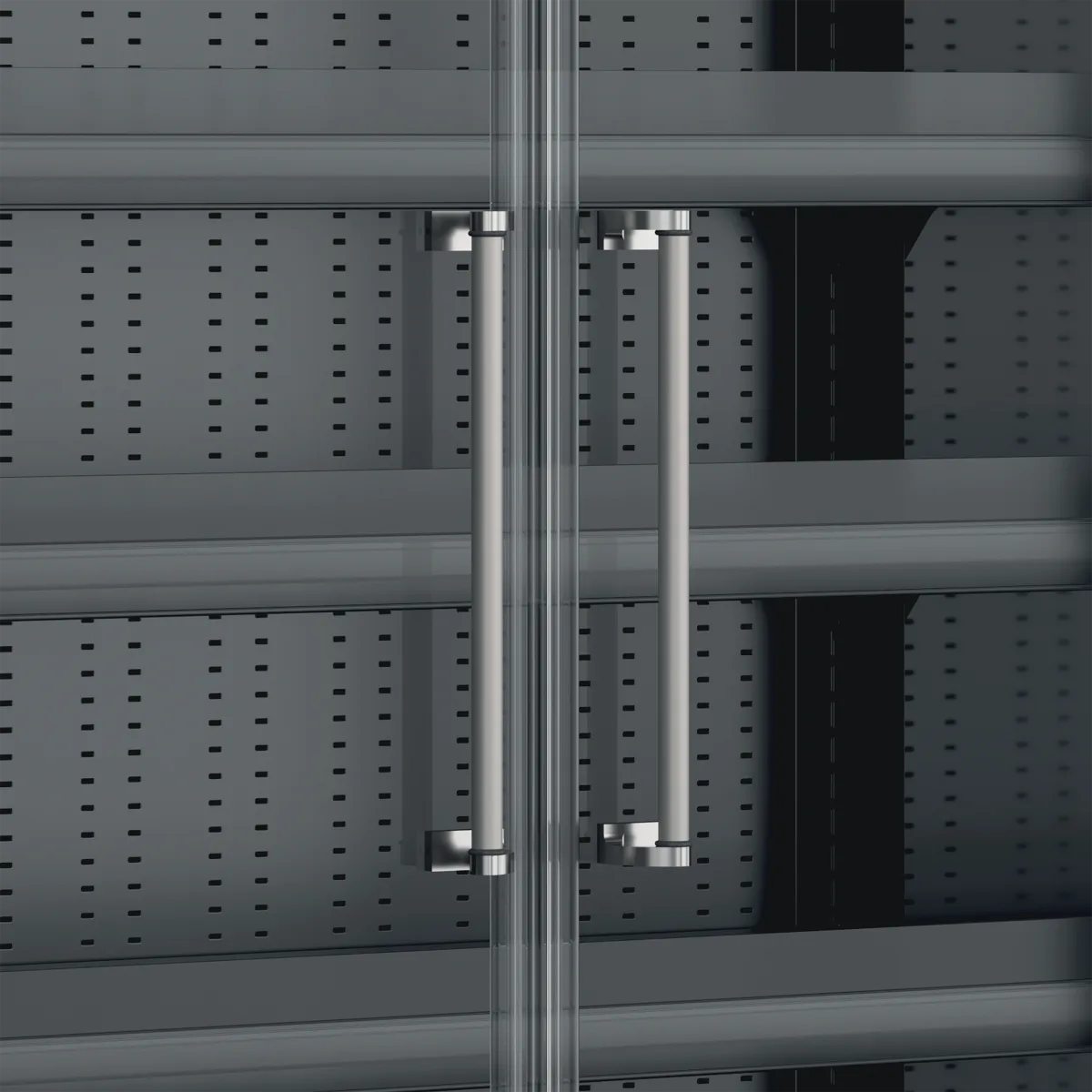

- Frameless glass doors for great product visibility
- Adjustable shelves, max weight 160kg/sq metre
- Shelves can be flat or angled to 7° or 14°
- Solid 40 mm endwalls with mirrored interior

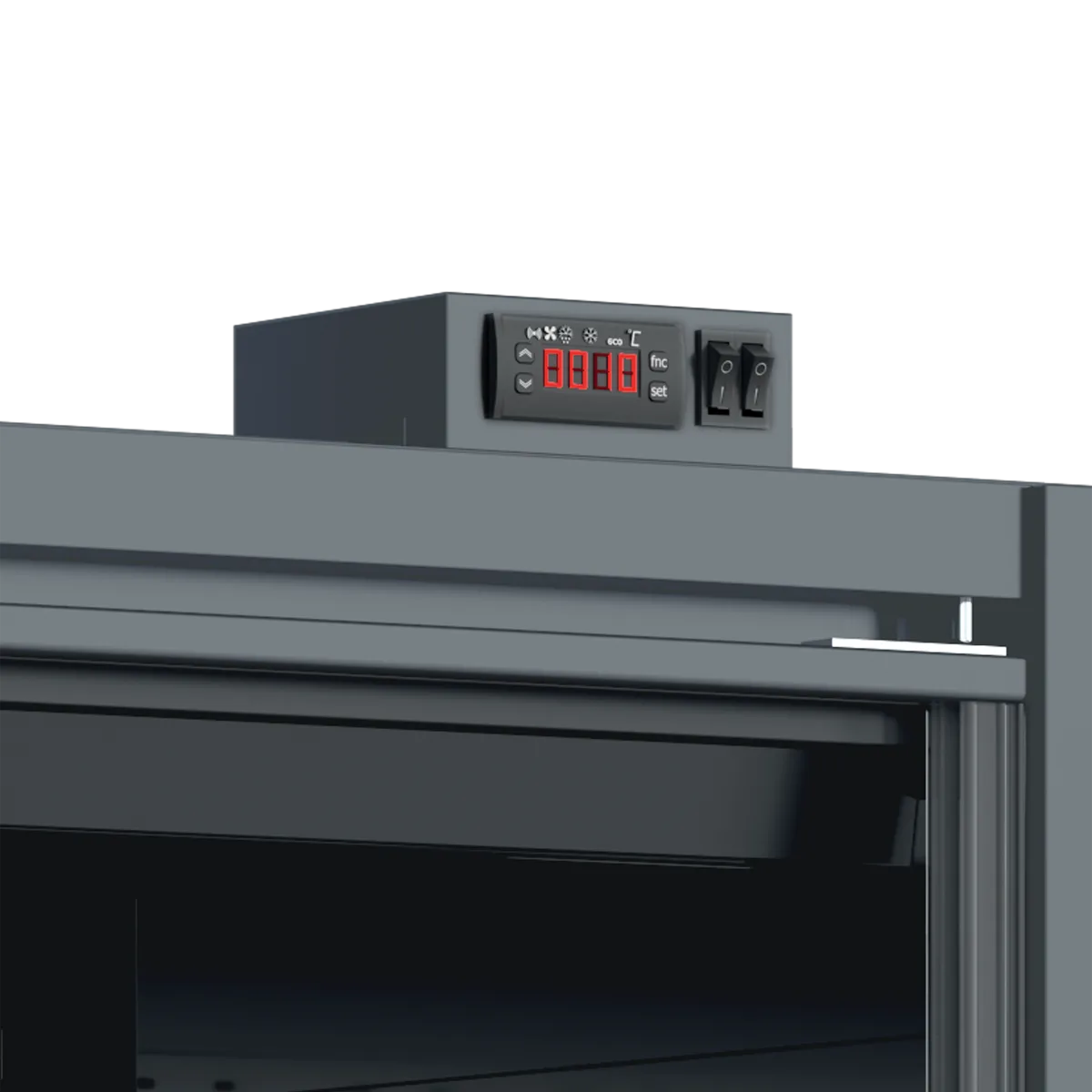

- Digital controller and temperature display
- Can be multiplexed with kit (POA)
- EPOS Ticket strips & shelf risers
- Extraction rate 650w/per metre
- Fully automatic, fan assisted cooling
Price on request
This model is supplied on a quotation basis. Tell us what you need and we will reply with a price and delivery date.
Dimensions (W x D x H)3125 x 784 x 2236 mm
Volume gross / net/ l l
Temperature-1 to +5 °C
Weight gross / net605 / 560 kg kg
Energy classD
Specifications
| Gross / Net Weight | 605 / 560 kg |
|---|---|
| 40ft Container Load | 6 pcs |
| GTIN / EAN | 5708181753504 |
| Product Group - Delivery services | Group 5A |
| Gross / Net Volume | / l |
| Total Display Area | 4.95 m² |
| Temperature Range | -1 to +5 °C |
| Climate Class | 3 |
| Exterior Finish | Anthracite RAL7016 |
| Interior Finish | Anthracite RAL7016 |
| Door Number & Type | 6 hinged glass door |
| Door Reversible | No |
| Shelves Number & Type | 5 adjustable |
| Shelf Color | Anthracite |
| Shelf Dimensions | 5 x 450 mm |
| Type of Defrost | Automatic |
| Refrigerant | R449a |
| Refrigerant Charge | REMOTE g |
| Energy Class | D |
| EPREL No | 2727888 |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 22.51 kWh/24h |
| Annual Energy Consumption | 8216 kWh/year |
| EEI | 36.2 % |
| Voltage / Frequency | 220-240/50 V/Hz |
| External Dimension (WxDxH) | 3125 x 784 x 2236 mm |
| Internal Dimension (WxDxH) | 3125 x 450 x 1738 mm |
| Packed Dimension (WxDxH) | 3350 x 850 x 2390 mm |

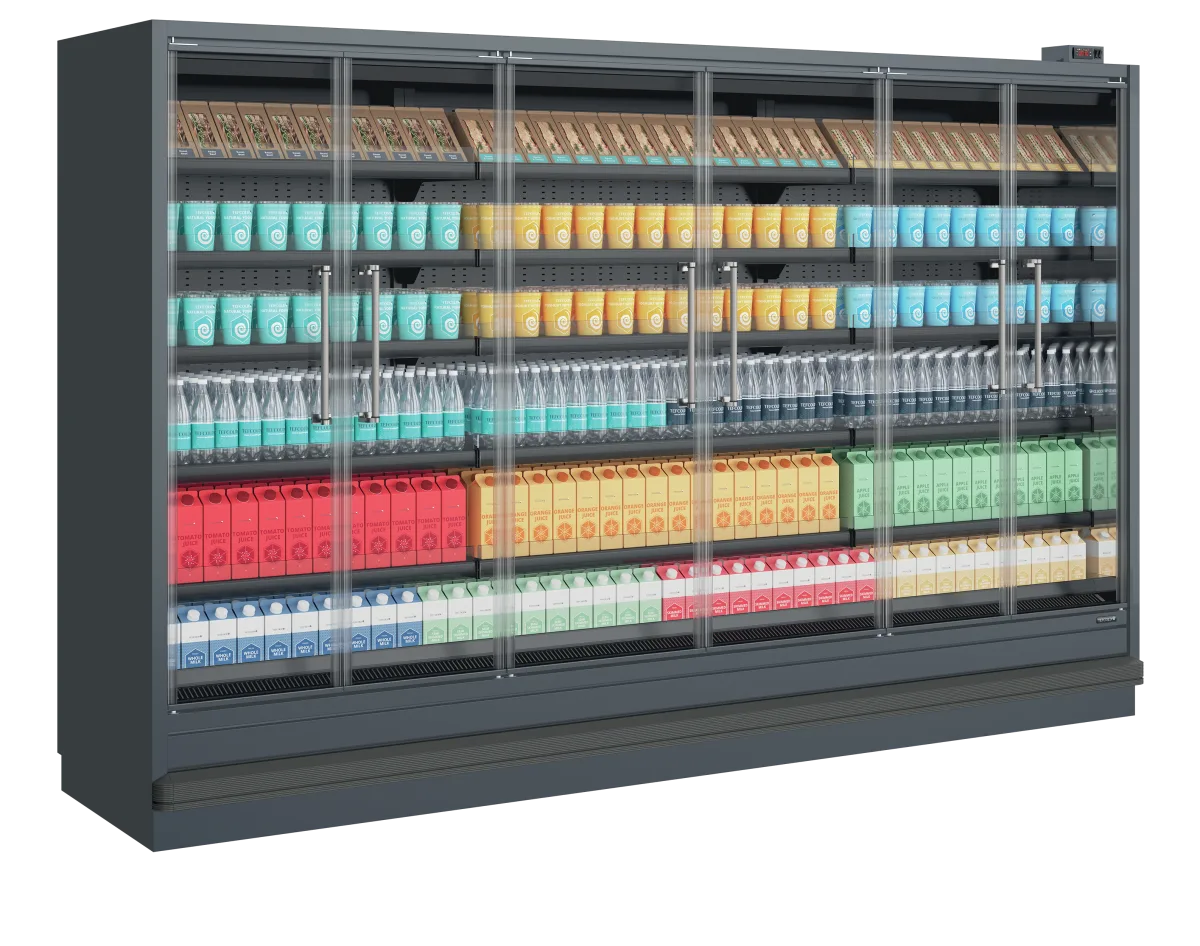

Remote Multideck - Extended Height
These highly useful remote multidecks, at an extended height, which help to maximise your display space whilst also reducing the impact of both noise and heat. The units are available in 4 sizes. You can multiplex these units with a kit, which allows you to create a larger display size. The large display area creates exceptional product presentation with high-capacity vertical merchandising. For use with a huge variety of chilled products with even temperature distribution across all shelf levels.The LED illumination also enhances the display impact, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. Important - this requires an additional remote refrigeration system. 2 year parts warranty only.
