DKR-PRO

Trojan T32 FGD A

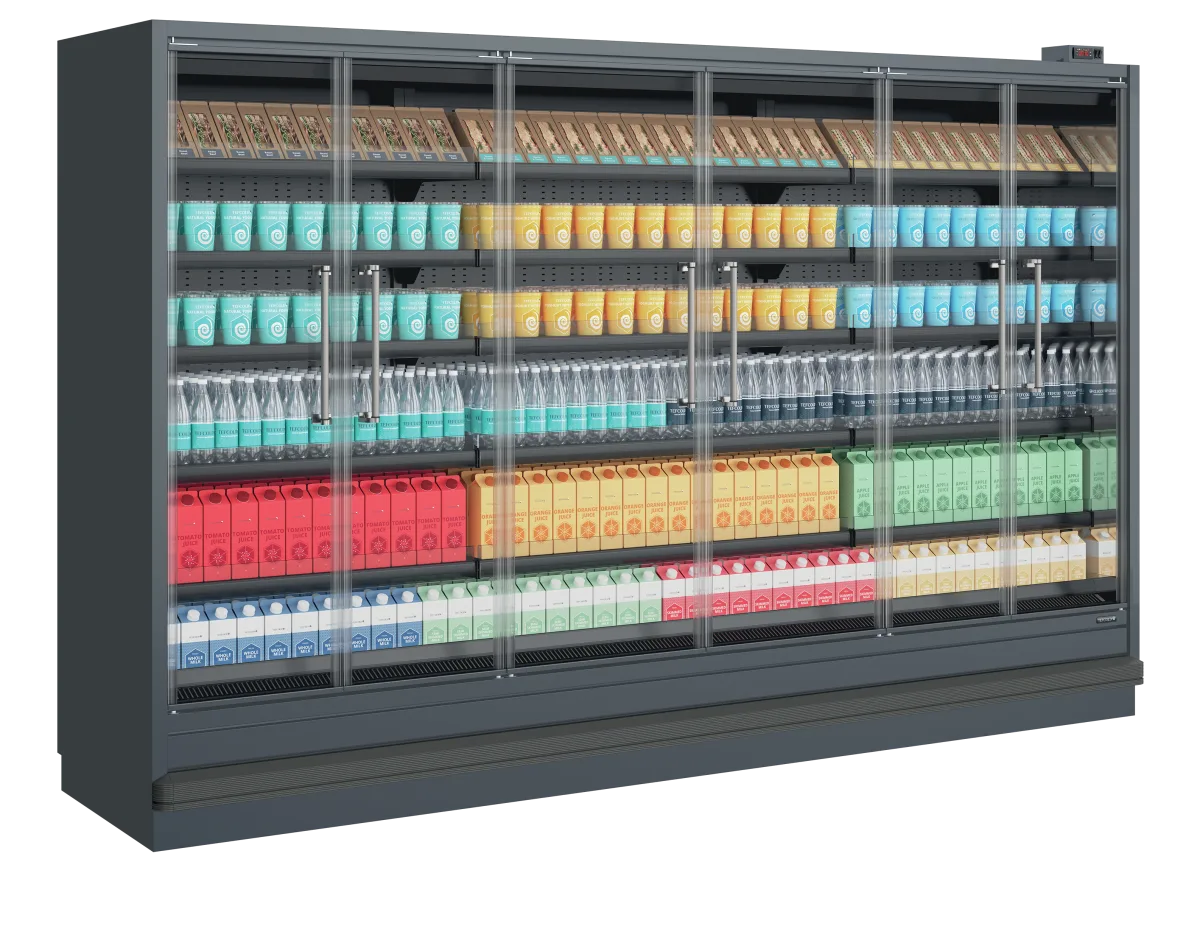

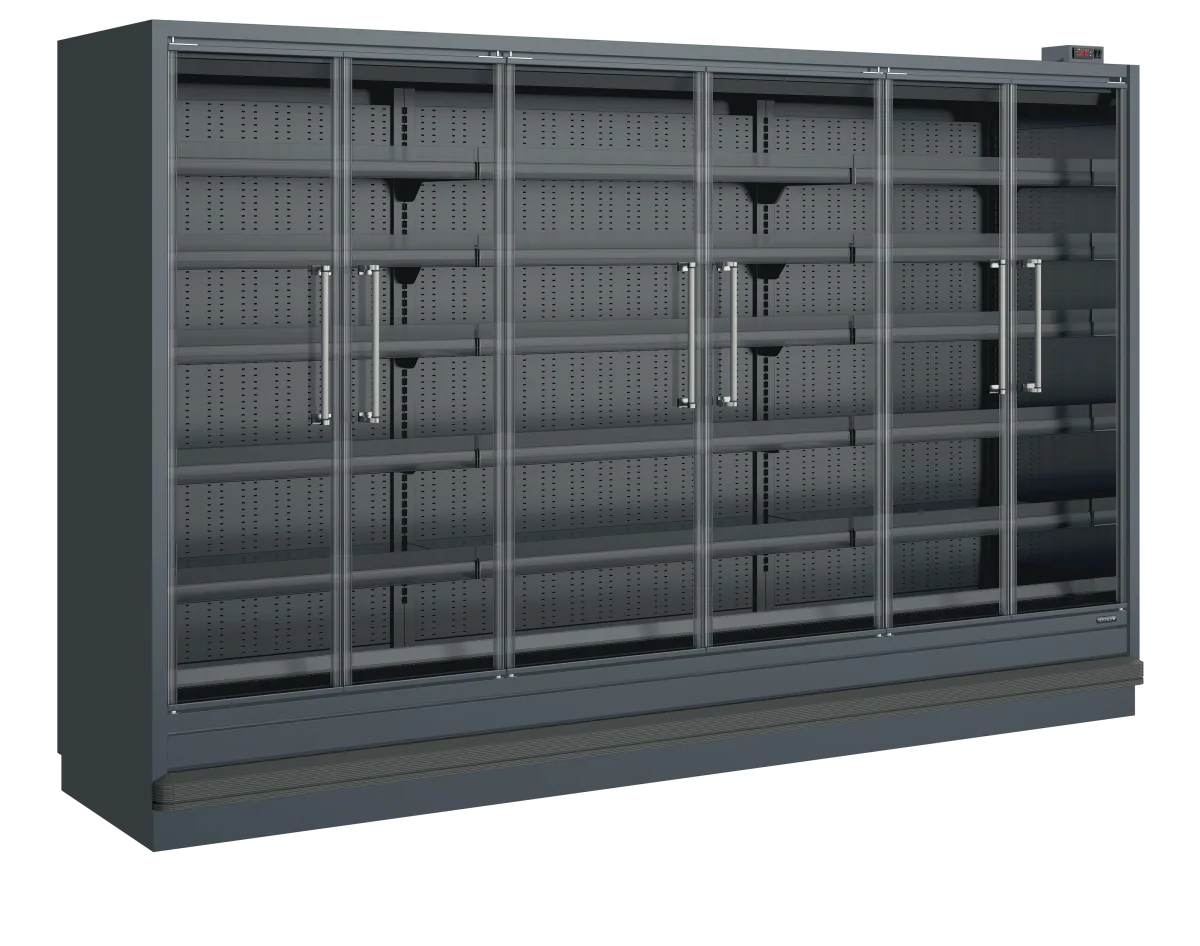

Name: Trojan T32 FGD A Remote Multideck
Brand: DKR-PRO
SKU: 68191

Remote Multideck

Item no. 68191 EAN 5708181753405

Colour is anthracite RAL7016
Requires remote refrigeration system (not supplied)

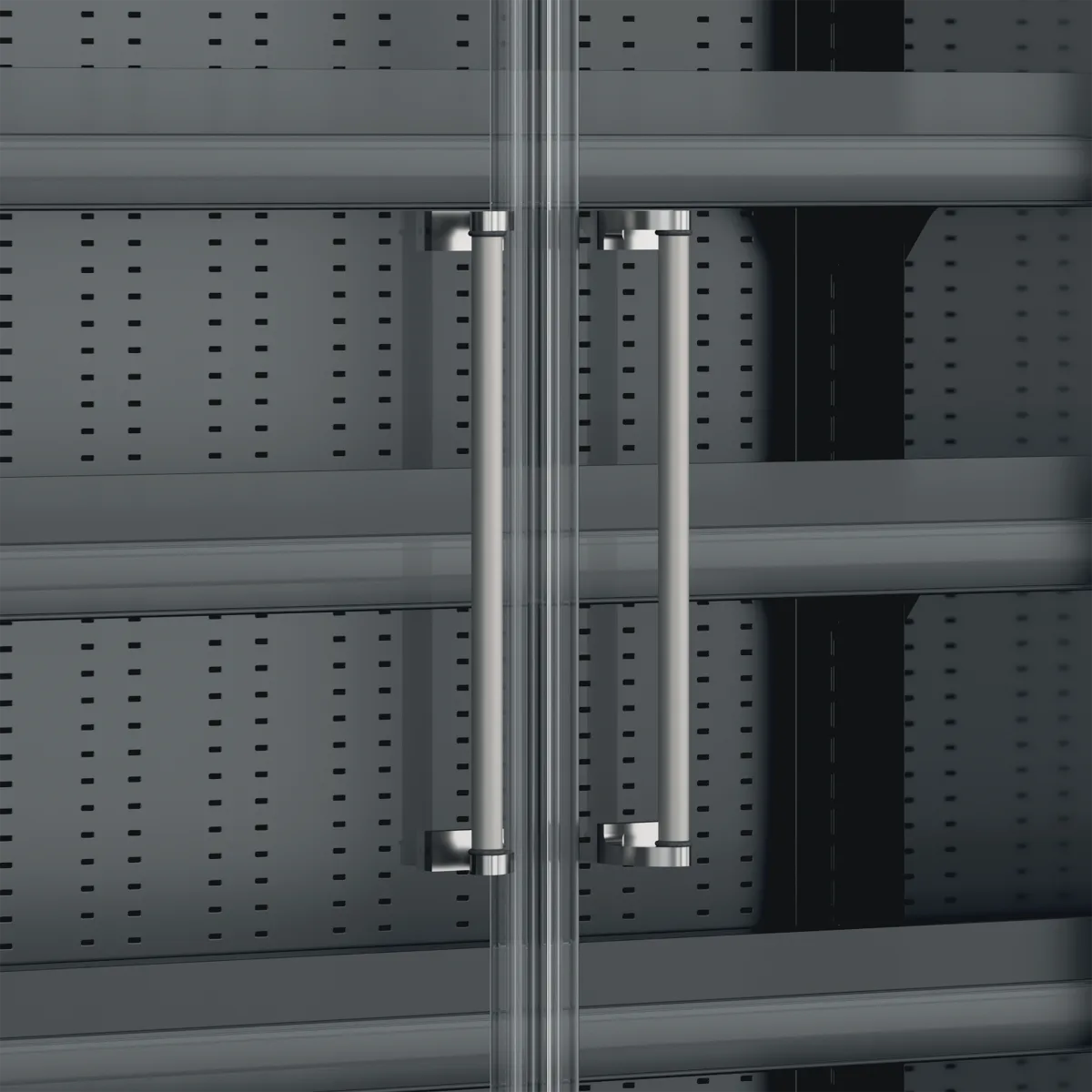

Frameless glass doors for great product visibility
Adjustable shelves, max weight 160kg/sq metre
Shelves can be flat or angled to 7° or 14°
Solid 40 mm endwalls with mirrored interior
Horizontal LED lighting

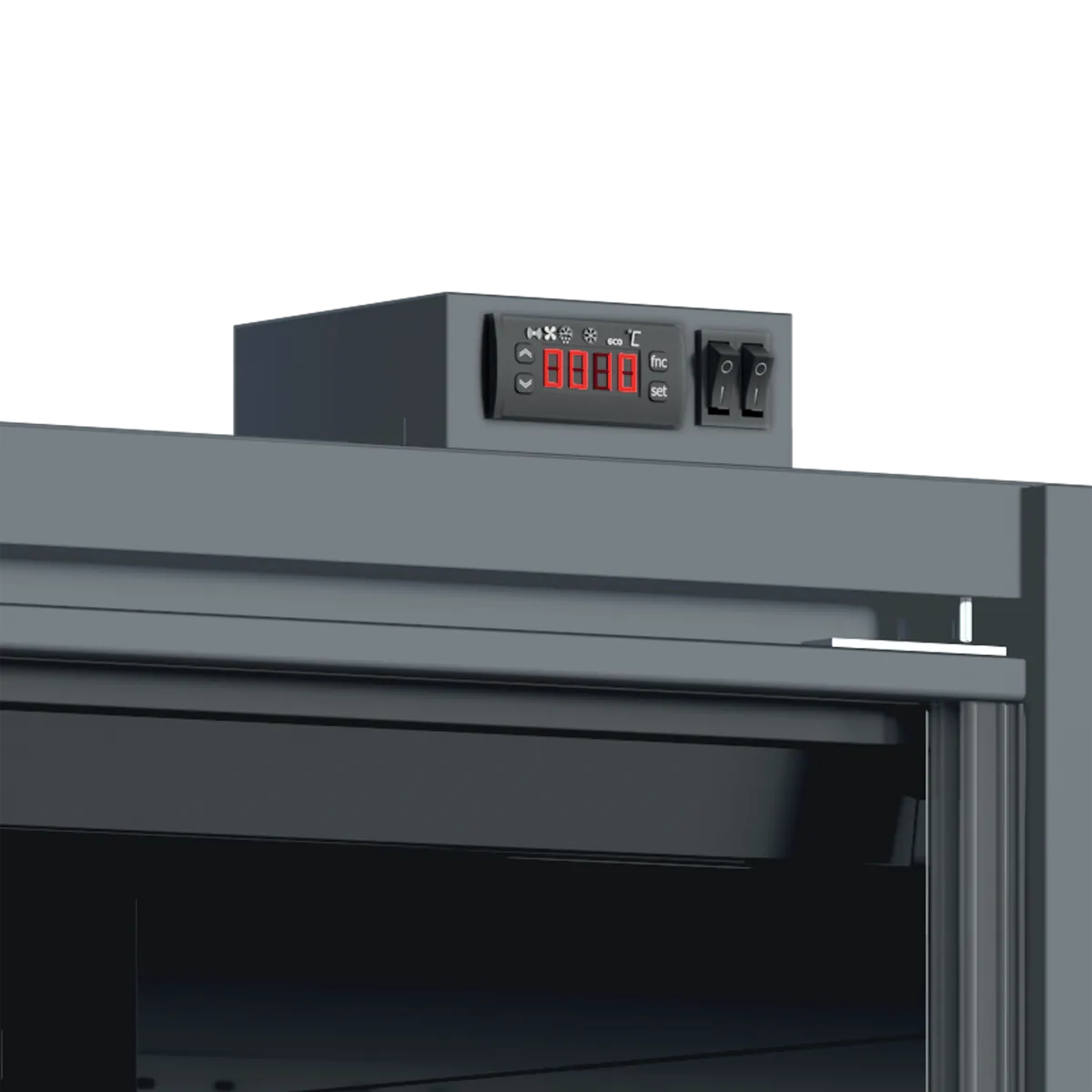

Digital controller and temperature display
EPOS Ticket strips & shelf risers
Extraction rate 650w/per metre
Can be multiplexed with kit (POA)
Also available in an extended height version

Price on request This model is supplied on a quotation basis. Tell us what you need and we will reply with a price and delivery date.

Request a quote Call +44 20 8345 6622

Dimensions (W x D x H)3125 x 784 x 2076 mm

Volume gross / net/ l l

Temperature-1 to +5 °C

Weight gross / net565 / 520 kg kg

Energy classD

Specifications

Gross / Net Weight	565 / 520 kg
40ft Container Load	6 pcs
GTIN / EAN	5708181753405
Product Group - Delivery services	Group 5A
Gross / Net Volume	/ l
Total Display Area	4.52 m²
Temperature Range	-1 to +5 °C
Climate Class	3
Exterior Finish	Anthracite RAL7016
Interior Finish	Anthracite RAL7016
Door Number & Type	6 hinged glass door
Door Reversible	No
Shelves Number & Type	5 adjustable
Shelf Color	Anthracite
Shelf Dimensions	5 x 450 mm
Type of Defrost	Automatic
Refrigerant	R449a
Refrigerant Charge	REMOTE g
Energy Class	D
EPREL No	2727738
Max Ambient	+25°C, 60% RH
Energy Consumption	21.21 kWh/24h
Annual Energy Consumption	7742 kWh/year
EEI	36.7 %
Voltage / Frequency	220-240/50 V/Hz
External Dimension (WxDxH)	3125 x 784 x 2076 mm
Internal Dimension (WxDxH)	3125 x 450 x 1578 mm
Packed Dimension (WxDxH)	3350 x 850 x 2390 mm

Remote Multideck

These highly useful remote multidecks help to maximise your display space whilst also reducing the impact of both noise and heat. The units are available in 4 sizes. You can multiplex these units with a kit, which allows you to create a larger display size. The large display area creates exceptional product presentation with high-capacity vertical merchandising. For use with a huge variety of chilled products with even temperature distribution across all shelf levels.The LED illumination also enhances the display impact, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. Important - this requires an additional remote refrigeration system. 2 year parts warranty only.
