DKR-PRO
Trojan T20 FGD EHA

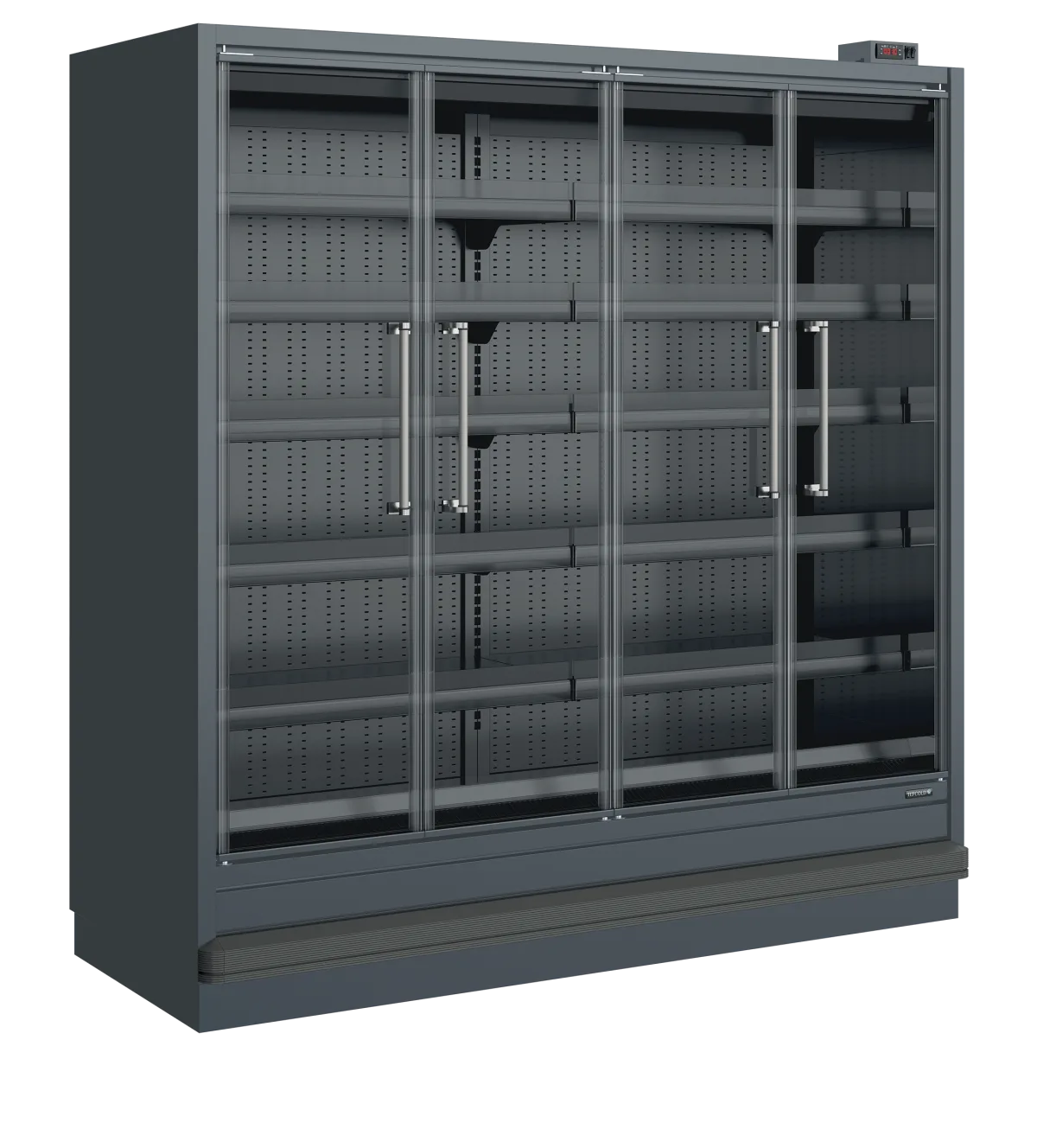

Remote Multideck - Extended Height
Item no. 68203
EAN 5708181753467
- Colour is anthracite RAL7016
- Requires remote refrigeration system (not supplied)
- Horizontal LED lighting

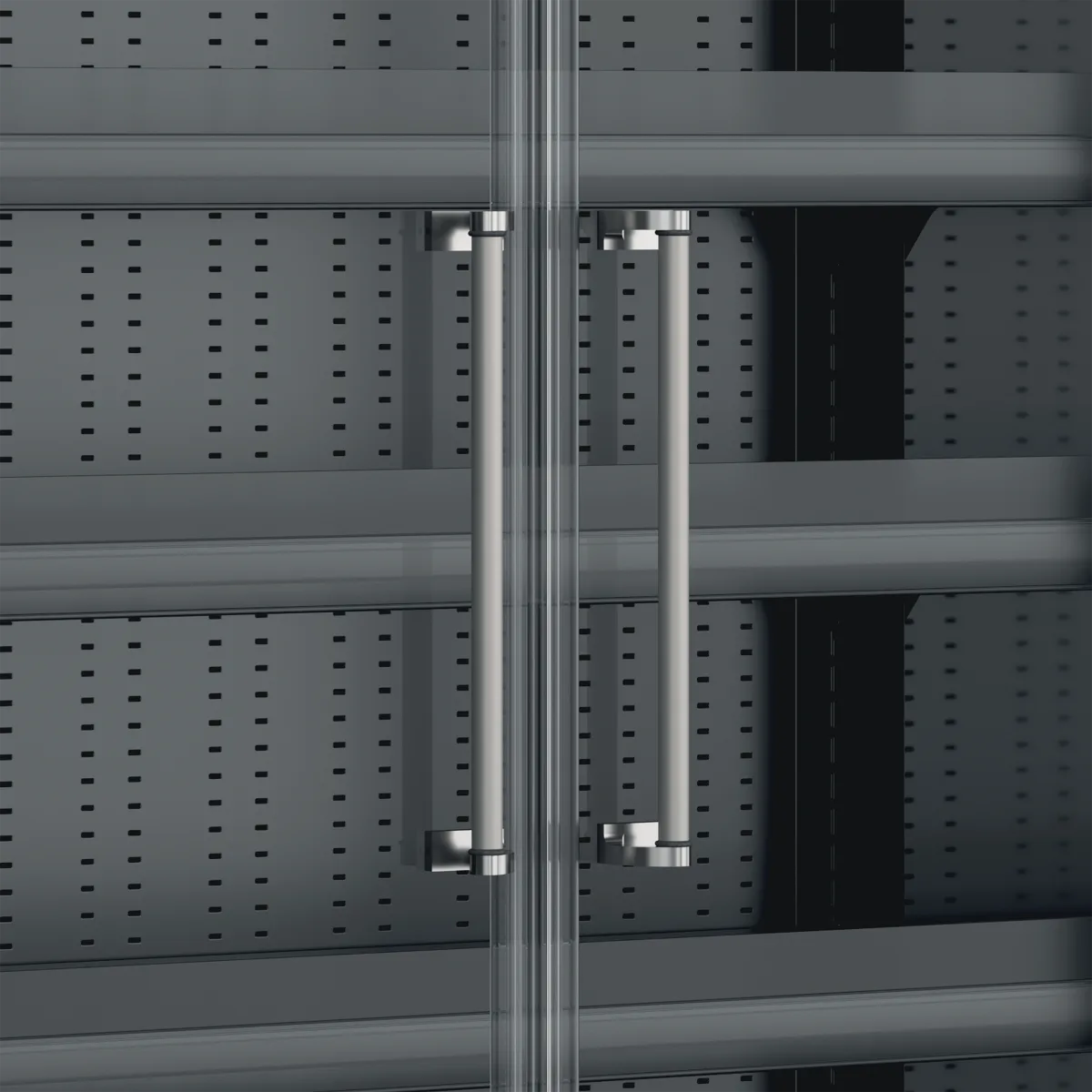

- Frameless glass doors for great product visibility
- Adjustable shelves, max weight 160kg/sq metre
- Shelves can be flat or angled to 7° or 14°
- Solid 40 mm endwalls with mirrored interior

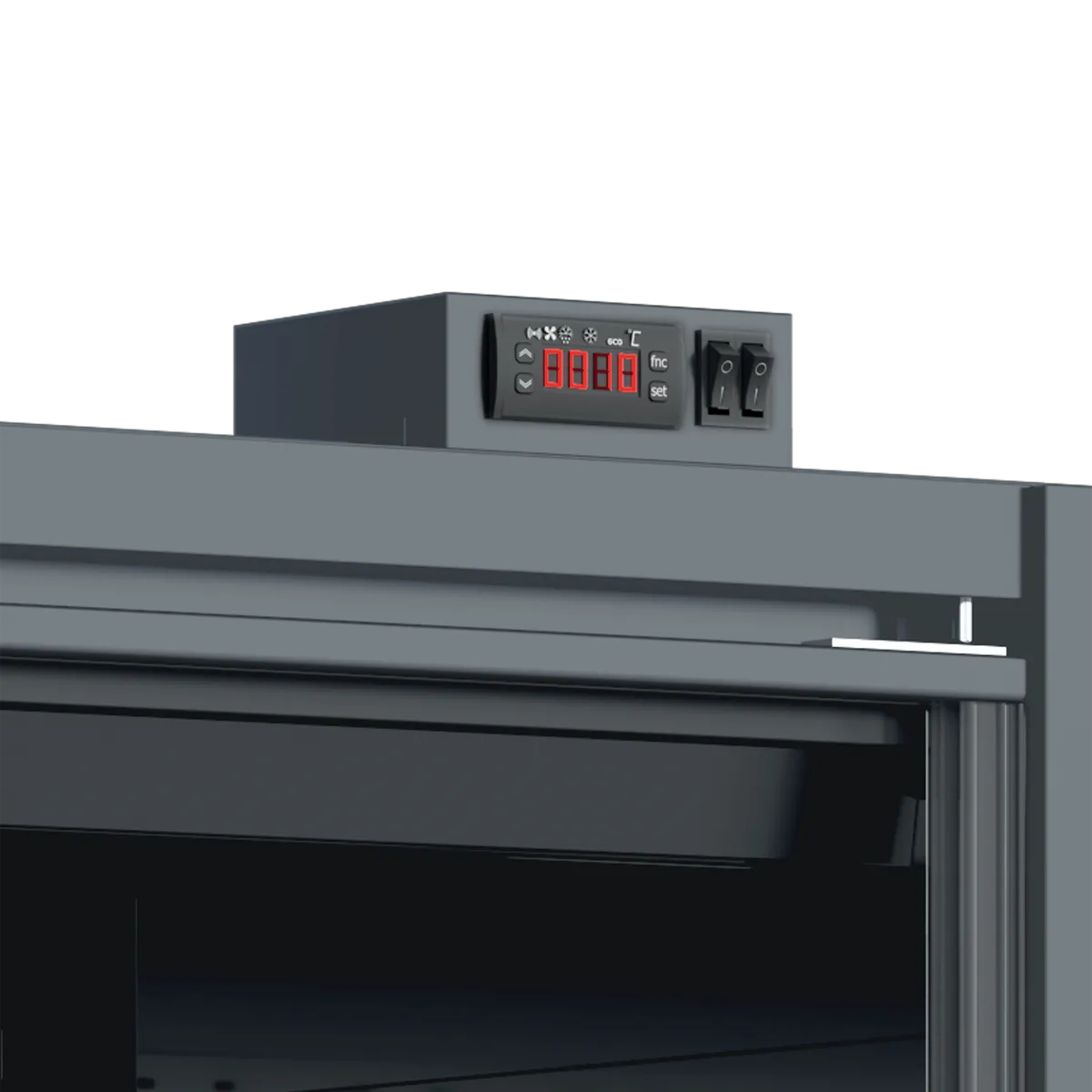

- Digital controller and temperature display
- Can be multiplexed with kit (POA)
- EPOS Ticket strips & shelf risers
- Extraction rate 650w/per metre
- Fully automatic, fan assisted cooling
Price on request
This model is supplied on a quotation basis. Tell us what you need and we will reply with a price and delivery date.
Dimensions (W x D x H)1959 x 784 x 2236 mm
Volume gross / net/ l l
Temperature-1 to +5 °C
Weight gross / net428 / 405 kg kg
Energy classC
Specifications
| Gross / Net Weight | 428 / 405 kg |
|---|---|
| 40ft Container Load | 14 pcs |
| GTIN / EAN | 5708181753467 |
| Product Group - Delivery services | Group 4A |
| Gross / Net Volume | / l |
| Total Display Area | 2.94 m² |
| Temperature Range | -1 to +5 °C |
| Climate Class | 3 |
| Exterior Finish | Anthracite RAL7016 |
| Interior Finish | Anthracite RAL7016 |
| Door Number & Type | 4 hinged glass door |
| Door Reversible | No |
| Shelves Number & Type | 5 adjustable |
| Shelf Color | Anthracite |
| Shelf Dimensions | 5 x 450 mm |
| Type of Defrost | Automatic |
| Refrigerant | R449a |
| Refrigerant Charge | REMOTE g |
| Energy Class | C |
| EPREL No | 2727859 |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 13.67 kWh/24h |
| Annual Energy Consumption | 4990 kWh/year |
| EEI | 33.2 % |
| Voltage / Frequency | 220-240/50 V/Hz |
| External Dimension (WxDxH) | 1959 x 784 x 2236 mm |
| Internal Dimension (WxDxH) | 1875 x 450 x 1738 mm |
| Packed Dimension (WxDxH) | 2100 x 850 x 2390 mm |
Remote Multideck - Extended Height

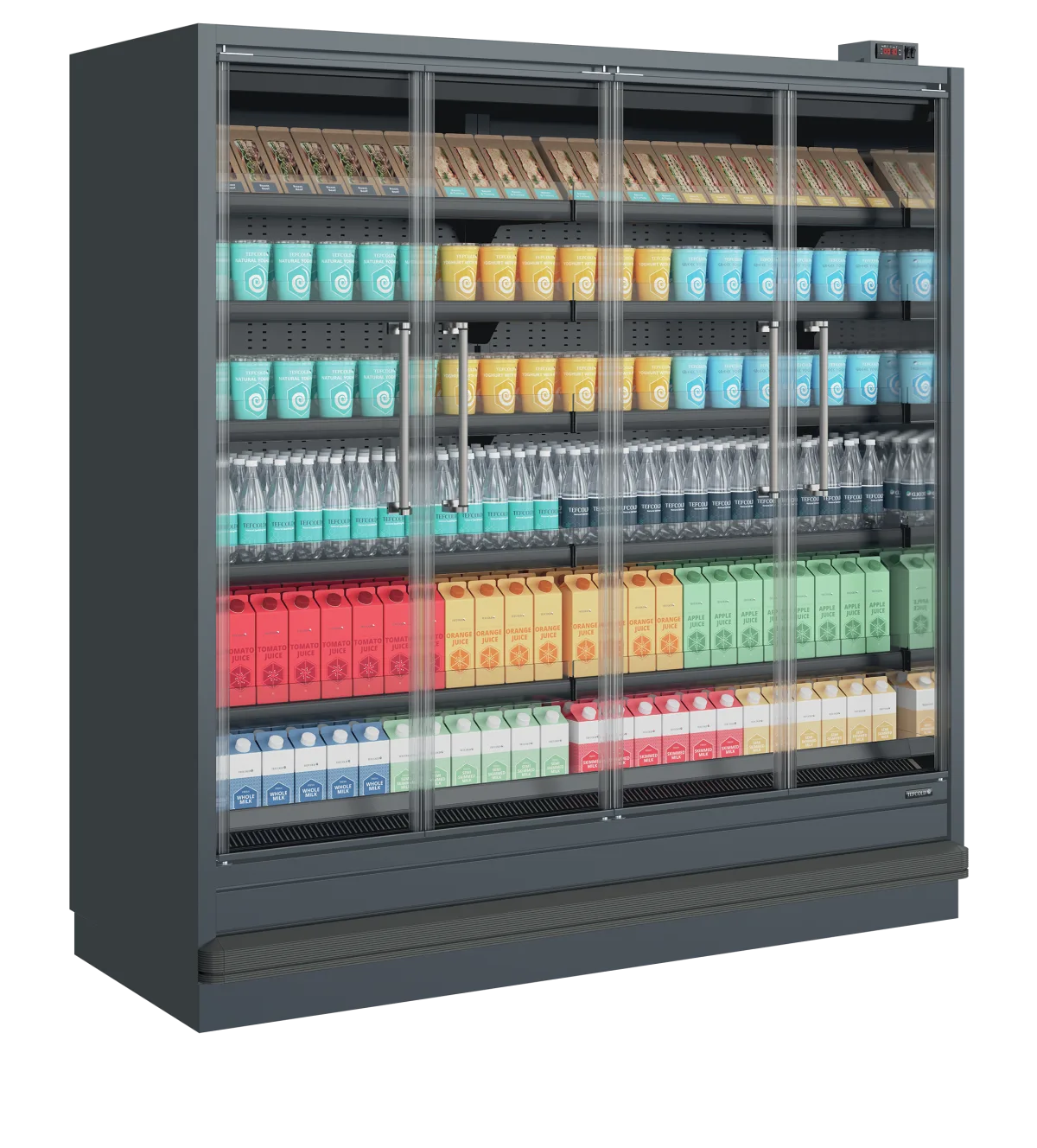

A highly useful remote multideck range (at an extended height) that allows you to maximise your display space whilst reducing the impact of noise and heat. Available in 4 sizes. This unit is multiplexable, with a kit, and allows you to create a more extensive display size. Trojans offers a large display area with high-capacity vertical merchandising, great for product presentation. Ideal for an extensive variety of chilled products with even temperature distribution across all shelf levels. Plus the LED illumination enhances the presentation of produce, whilst the energy-efficient operation and modular construction allows for seamless continuous line-ups. Please note this requires an additional remote refrigeration system. 2 year parts warranty only.
