B
DKR-PRO

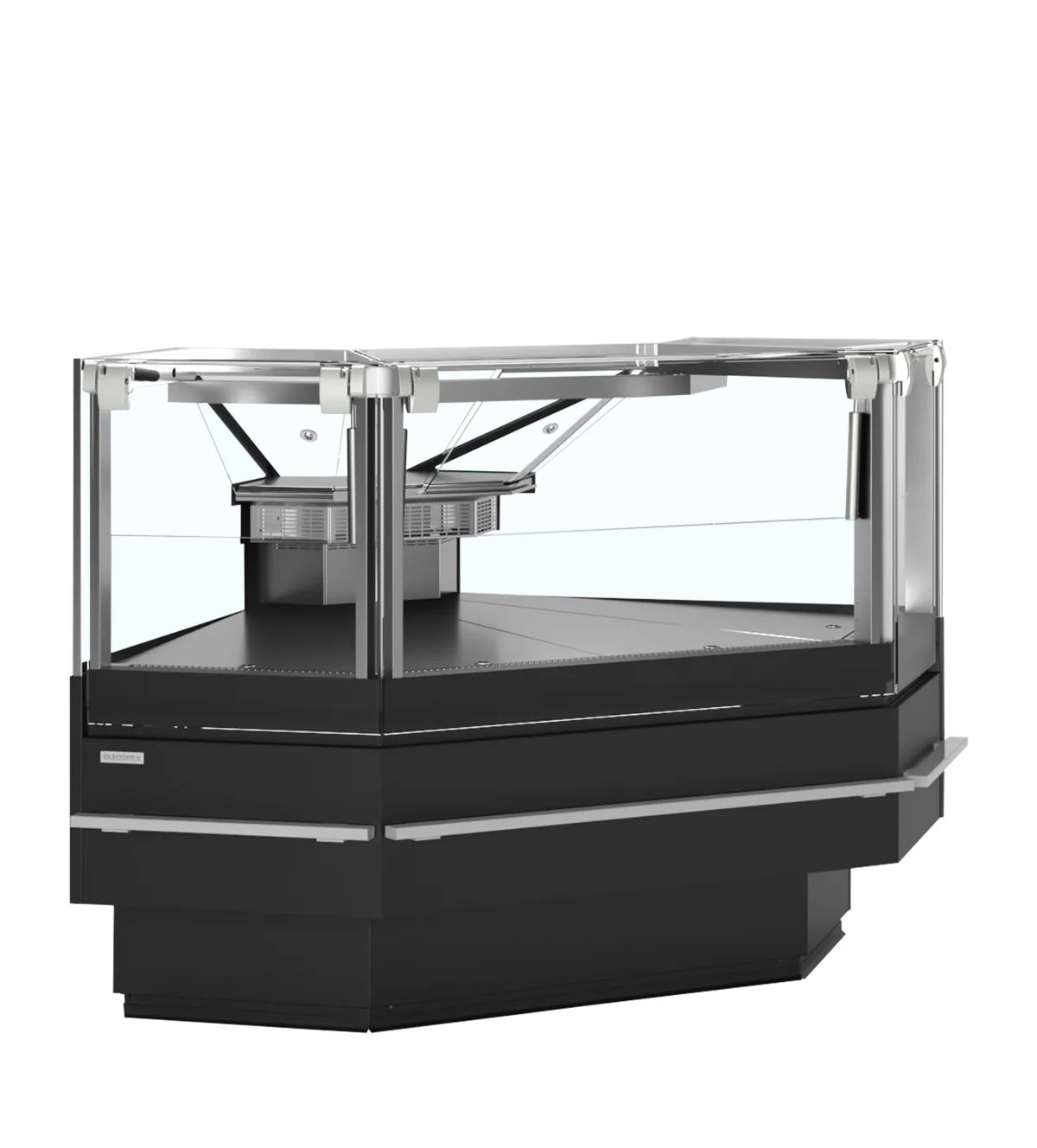

SOCA90EXTB
Serve Over Counter
Item no. 68484
EAN 5708181754174
- Excellent product visibility
- Black finish
- Glass front lifts up for easy cleaning
- Temperature Class 3M1
- Ventilated cooling
- Anti mist front glass
- LED top light
- Stainless steel bumper bars
- Stainless steel rear shelf
- Can be multiplexed with kit (POA)
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)x 1120 x 1190 mm
Volume gross / net/ 155 l l
Temperature0 to +4 °C
Weight gross / net290 / 245 kg kg
Specifications
| Gross / Net Weight | 290 / 245 kg |
|---|---|
| 40ft Container Load | 8 pcs |
| GTIN / EAN | 5708181754174 |
| Product Group - Delivery services | Group 4A |
| Gross / Net Volume | / 155 l |
| Total Display Area | 1.65 m² |
| Temperature Range | 0 to +4 °C |
| Climate Class | 3 |
| Insulation Density | 50 kg/m³ |
| Exterior Finish | Black RAL9005 |
| Interior Finish | Stainless Steel |
| Feet / Legs | Adjustable Feet |
| Interior Light | LED |

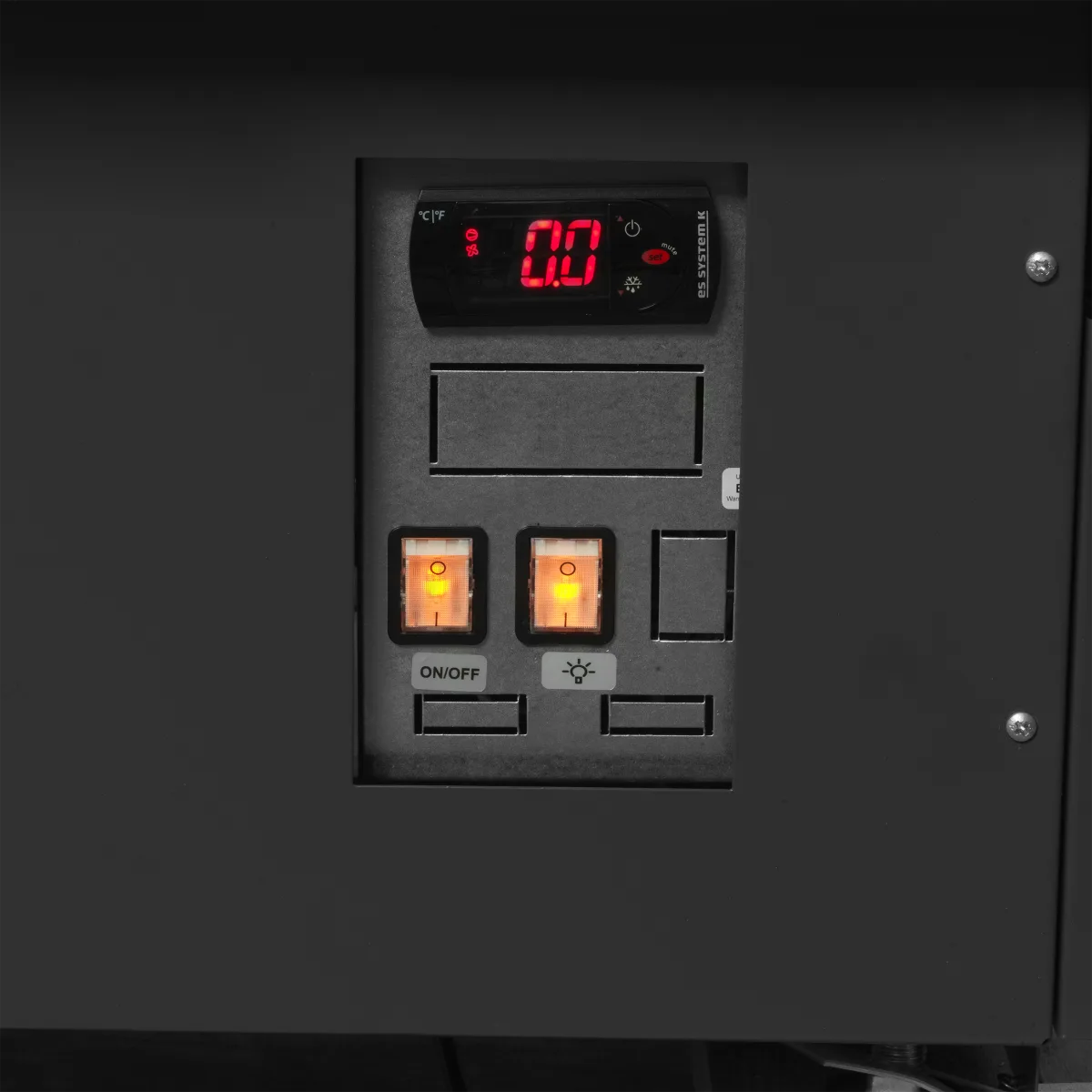

| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic, electric |
| Refrigerant | R290 |
| Refrigerant Charge | 150 g |
| Thermometer | Yes |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 5.98 kWh/24h |
| Annual Energy Consumption | 2182.7 kWh/year |
| Input Power | 530 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 60 dB(A) |
| External Dimension (WxDxH) | x 1120 x 1190 mm |
| Internal Dimension (WxDxH) | x 900 x 545 mm |
| Packed Dimension (WxDxH) | 1500 x 1450 x 1400 mm |
90° corner module for serve over counter
The SOC corner modules offer the opportunity of creating complete counter solutions in combination with other serve over counters from the same range. Choose between 45° or 90° counter displays for your perfect counter installation. Only suitable for use alongside SOCA counters.
