A
Framec

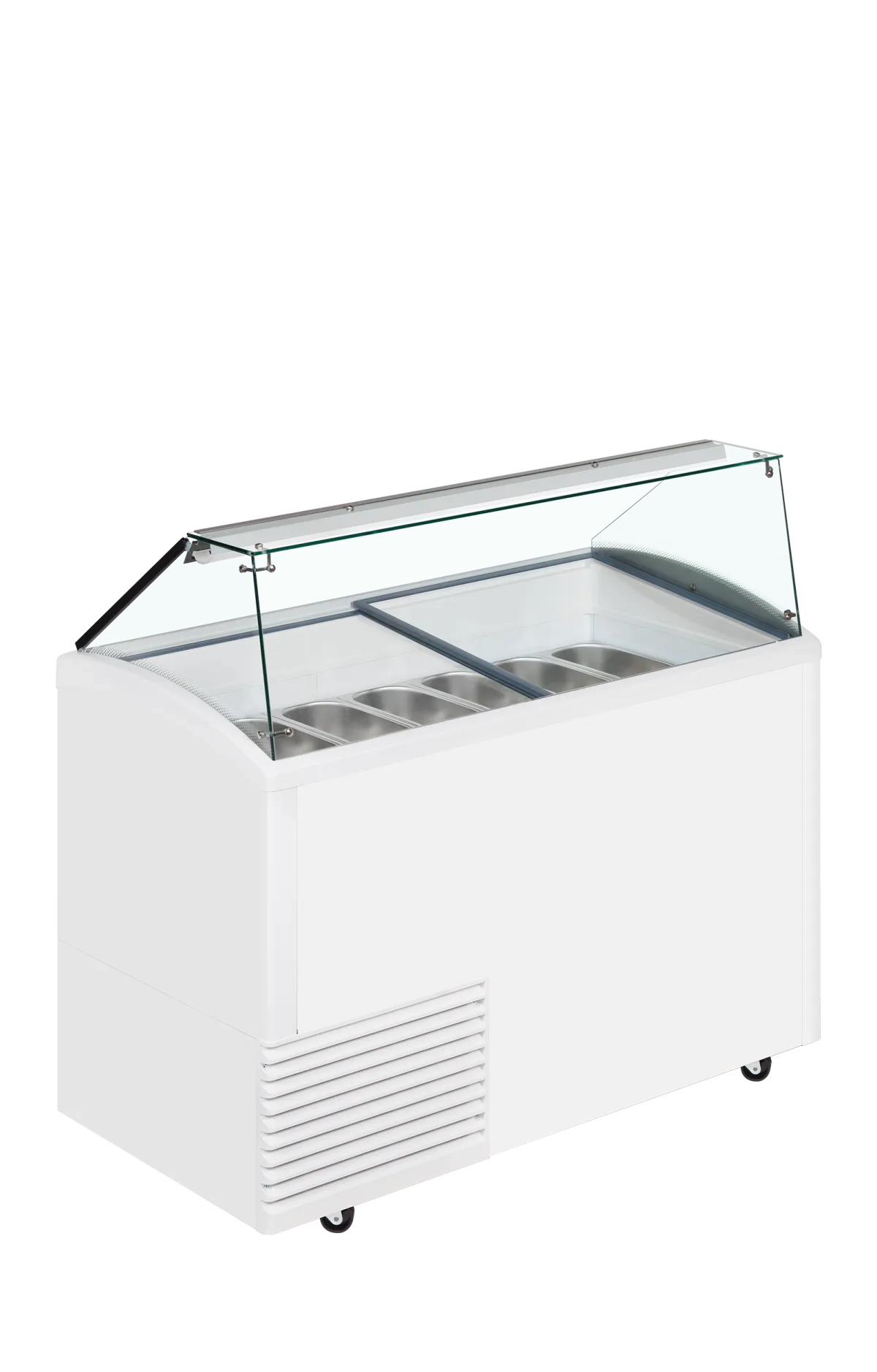

SLANT510
Scoop Ice Cream Display
Item no. 19365
EAN 5708181607784
- Static cooling
- Castors
- Interior light with switch
- Flat sliding lids
- Thermometer

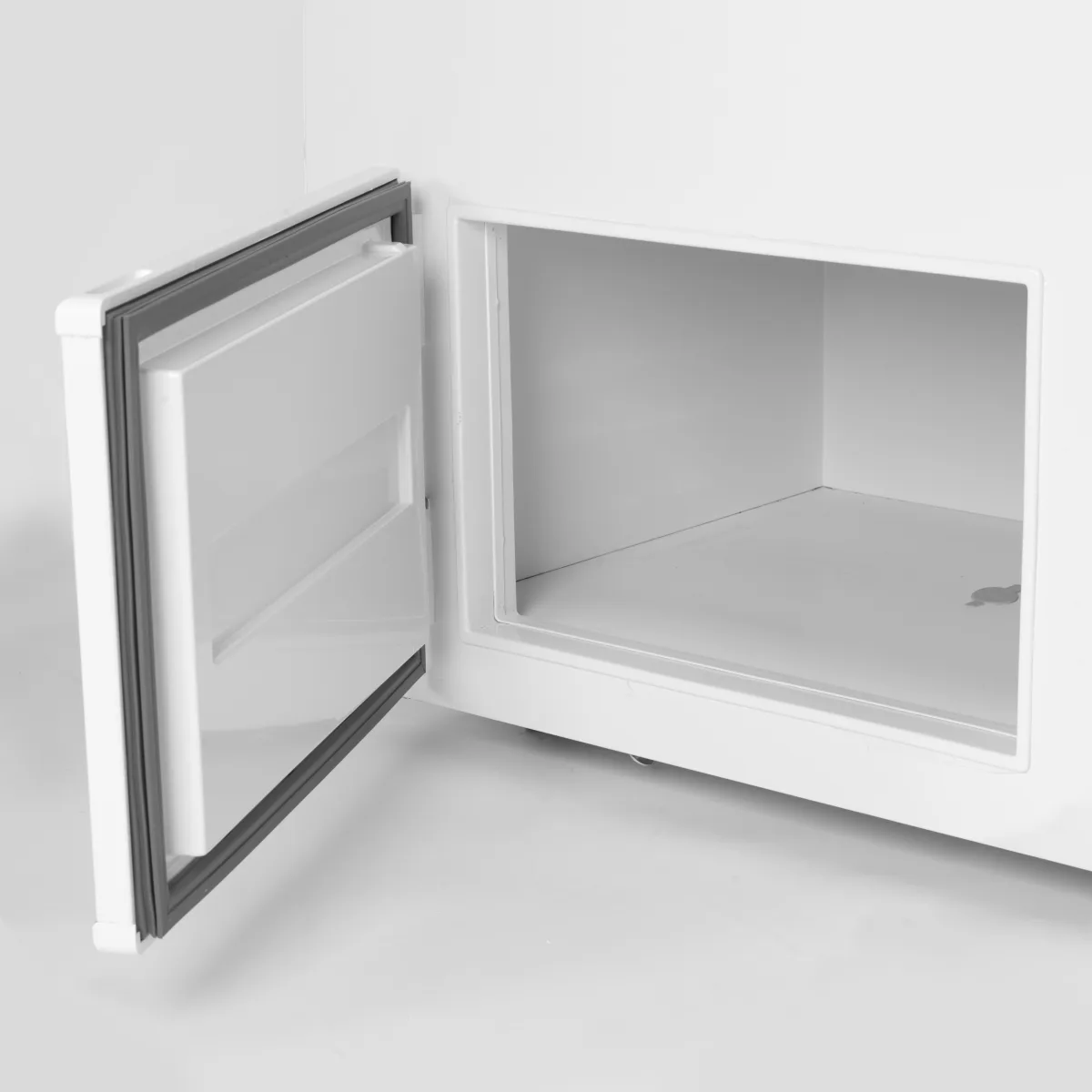

- Easy access understorage

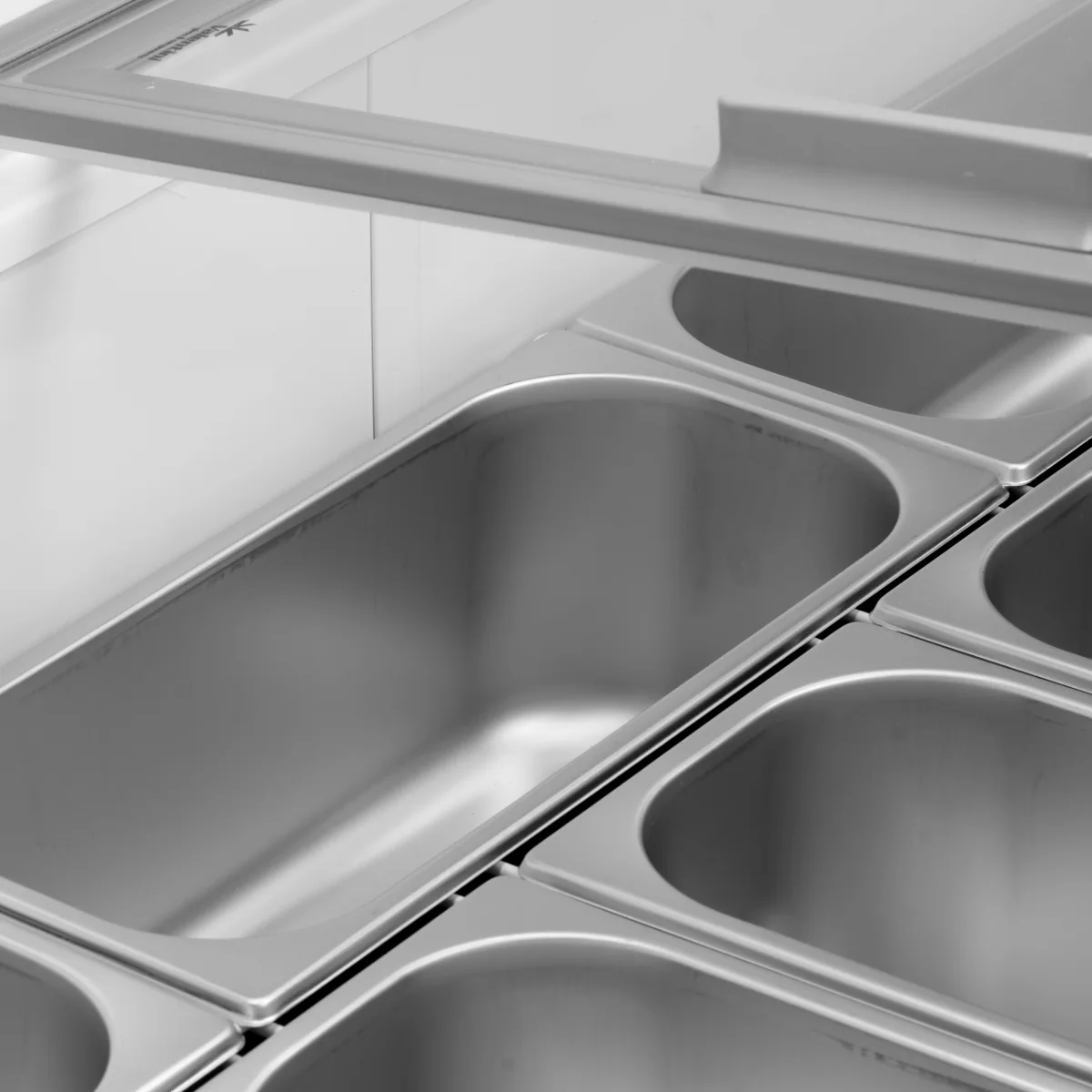

- Accepts Napoli pans (not supplied)
- Fan assisted condenser for energy efficiency
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1341 x 725 x 1235 mm
Volume gross / net431 / 342 l l
Temperature-20 to -14 °C
Weight gross / net112 / 103 kg kg
Energy classB
Specifications
| Gross / Net Weight | 112 / 103 kg |
|---|---|
| 40ft Container Load | 50 pcs |
| GTIN / EAN | 5708181607784 |
| Product Group - Delivery services | Group 2 |
| Gross / Net Volume | 431 / 342 l |
| Total Display Area | 0.59 m² |
| Temperature Range | -20 to -14 °C |
| Climate Class | 4 |
| Exterior Finish | White |
| Interior Finish | White |
| Castors | 4 double castors |
| Lock | No |
| Interior Light | No |
| Type of Controller | Mechanical |
| Type of Cooling | Static |
| Type of Defrost | Manual |
| Refrigerant | R290 |
| Refrigerant Charge | 100 g |
| Thermometer | Yes |
| Energy Class | B |
| EPREL No | 339539 |
| Max Ambient | +30°C, 55% RH |
| Energy Consumption | 5.12 kWh/24h |
| Annual Energy Consumption | 1868 kWh/year |
| EEI | 12 % |
| Power | 13 Amp |
| Input Power | 360 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 45 dB(A) |
| External Dimension (WxDxH) | 1341 x 725 x 1235 mm |
| Internal Dimension (WxDxH) | 1217 x 563 x 295 mm |
| Packed Dimension (WxDxH) | 1385 x 730 x 1020 mm |
| Serving Capacity | / 10 Napoli Pans (5L) |
| Storage Capacity (under) | / 12 Napoli Pans (5L) |
The Slant 510 from Framec is an excellent way to get 10 x 5 litre tubs of ice cream on display in the minimum amount of space. The unit also comes with separate refrigerated understorage (accessed through rear door) and has glass sliding lids to give extra insulation when you're not serving. A light is mounted into the canopy to create an excellent display of all the best flavours.
