EV50

500mm Heavy Duty Electronic Glass Washer, Drain Pump - V3

Item no. EV50 EAN 5060684401277

500mm / 24 pint capacity basket
Drain pump as standard
6 fully programmable wash cycles
276mm maximum load height
Supplied with 2 x baskets
Double skinned door
Bright LED control panel
30amp operation for busy establishments

Ordering several units or fitting out a full site? Ask for a volume quote.

Dimensions (W x D x H)575 x 600 x 805 mm

Dimensions & Capacity

Width (mm)	575
Depth (mm)	600
Height (mm)	805

Warranty

Standard Warranty	2 years parts only

Glass & Dishwasher

Basket Size	500mm / 24 pint
Drain System	Drain pump
Power Supply	6.6kW (30amp)
Maximum Load Height	355mm
Cycle Time	1,2,3,4 & 10 minutes

The Prodis EV50 is a 500mm heavy duty electronic glass washer, drain pump - v3 designed for pubs, bars, restaurants and hotels, combining dependable performance with a footprint that suits demanding commercial sites. It measures 575 x 600 x 805 mm (W x D x H).

Key features

500mm / 24 pint capacity basket
Drain pump as standard
6 fully programmable wash cycles
276mm maximum load height
Supplied with 2 x baskets
Double skinned door

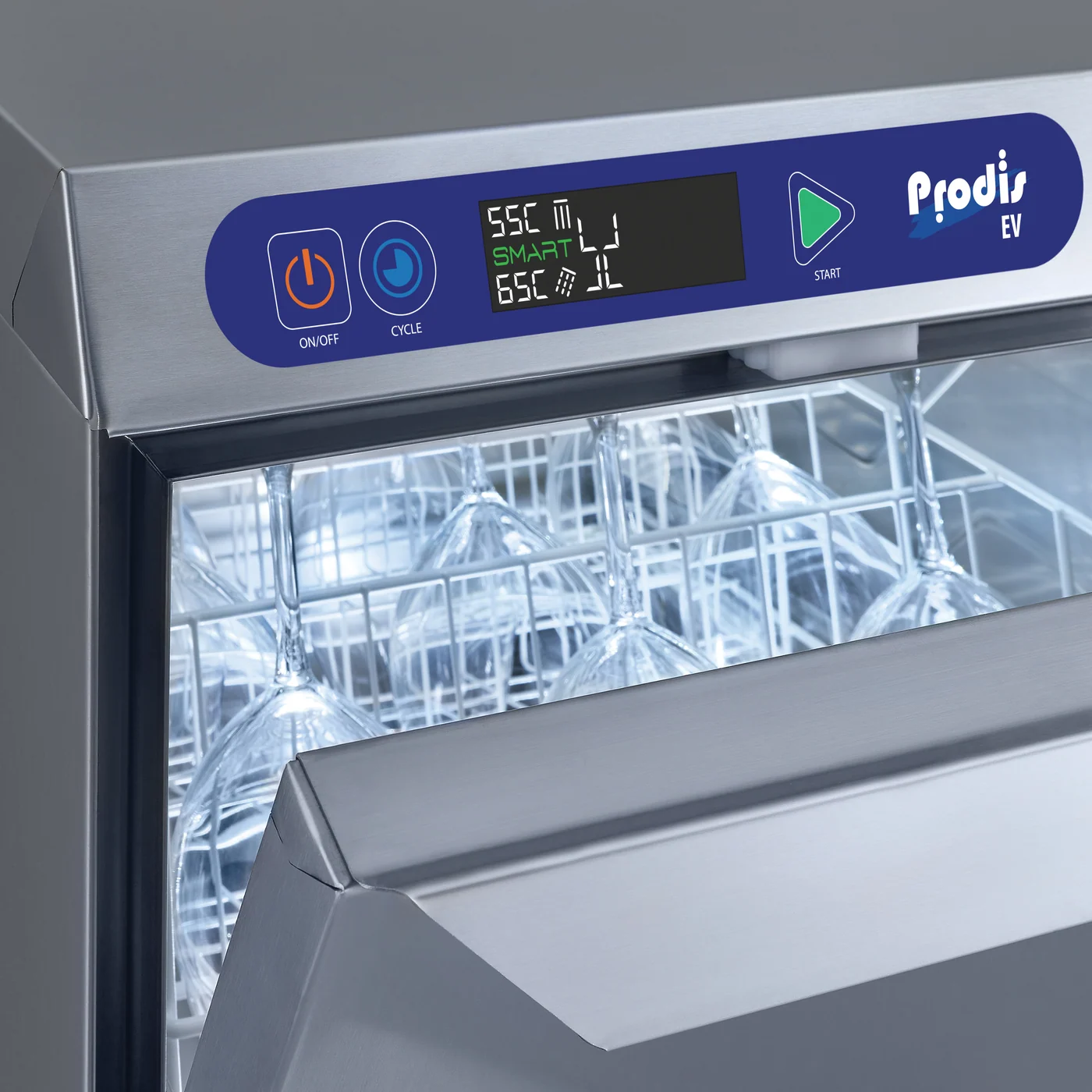

Bright LED control panel
30amp operation for busy establishments
Adjustable rinseaid and detergent pumps
Wash and rinse tank elements
Soft start wash pump
Automatic clean down cycle

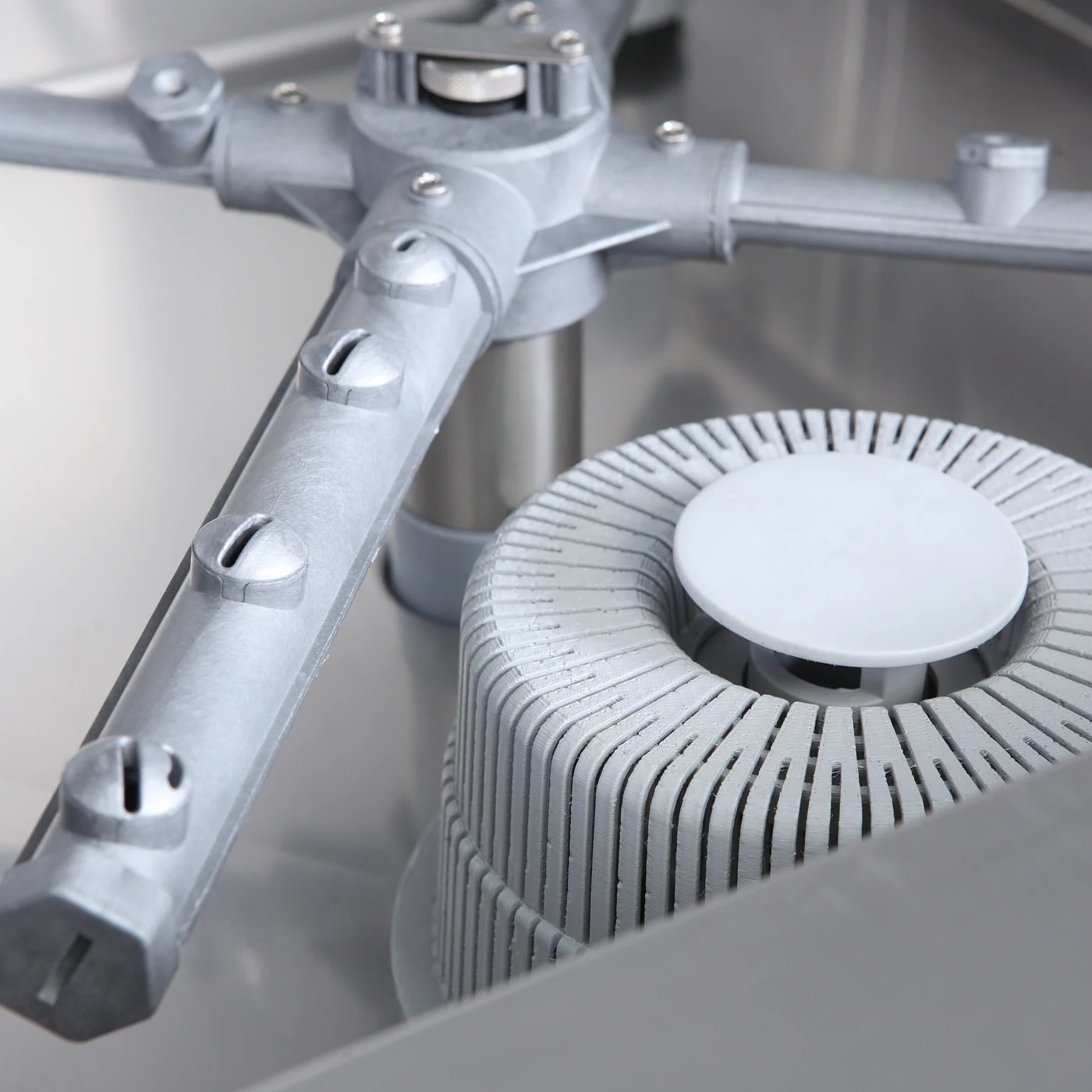

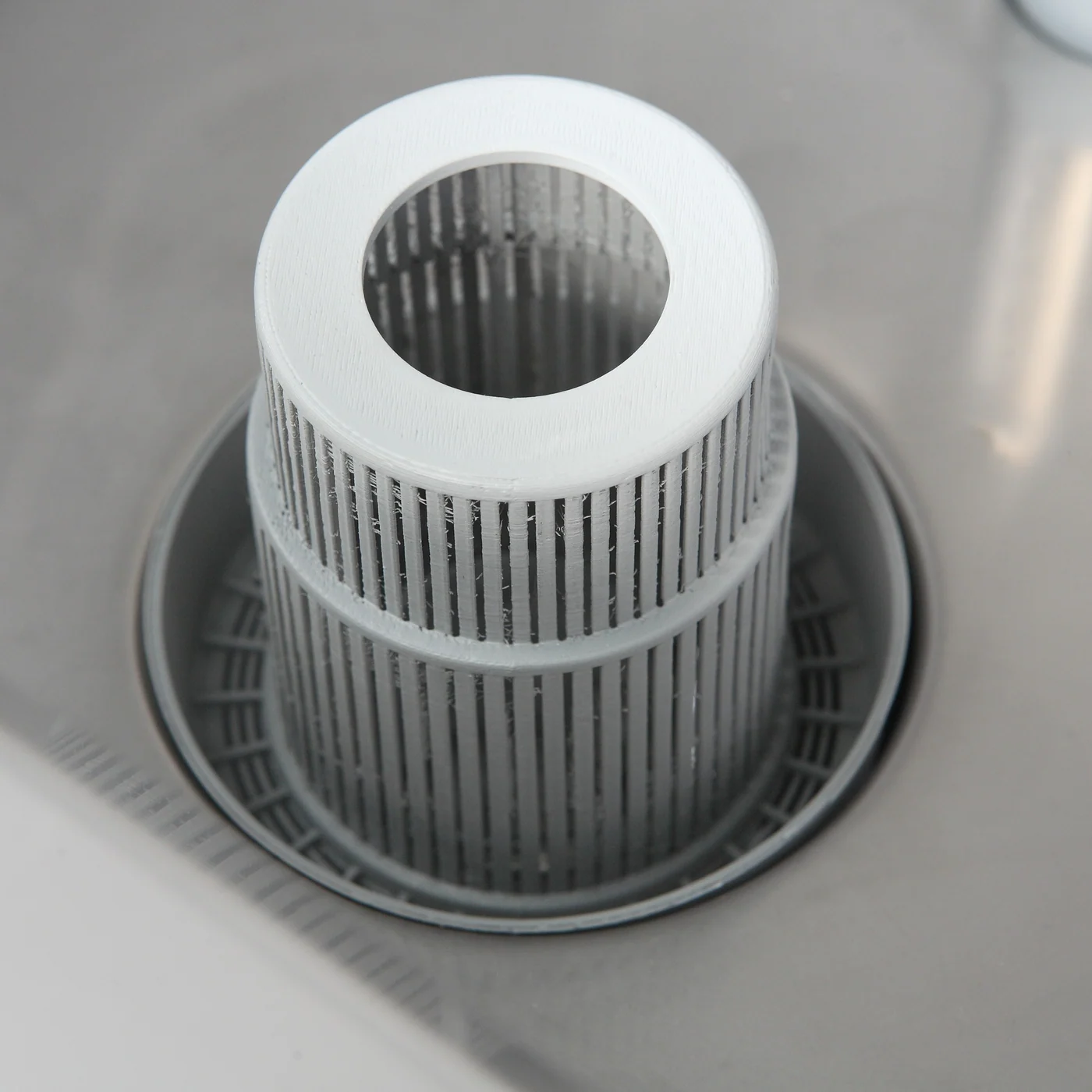

Two stage micro particulate filter
Adjustable feet

Technical highlights

The unit draws 6.6kW (30amp).

Installation and care

For best results and a longer service life, connect the machine to a water softener in hard water areas; limescale is the most common cause of poor results and breakdowns. Installation must comply with local water regulations, which normally means fitting a WRAS-approved non-return valve on the supply.
