B
DKR-PRO

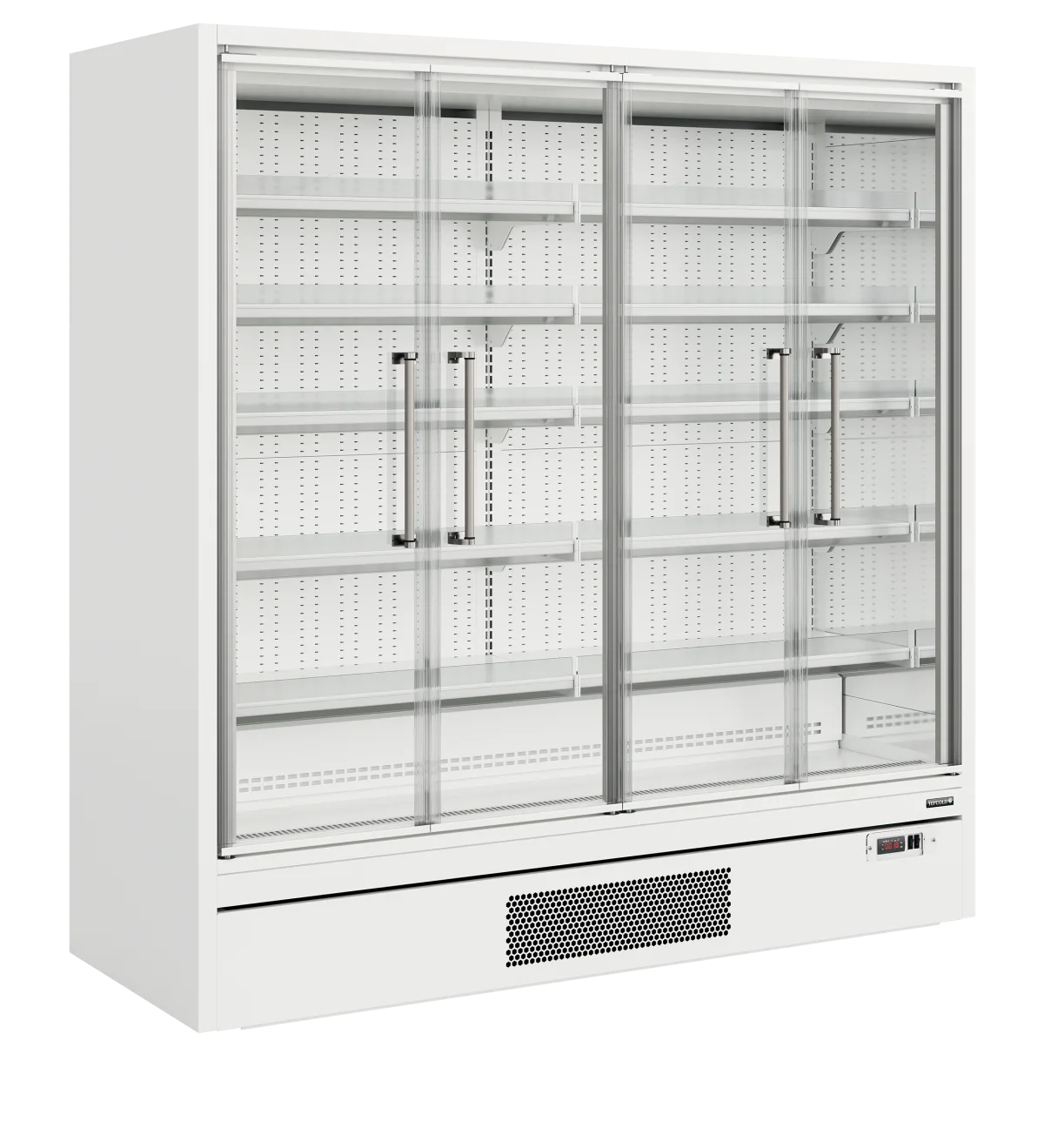

Galaxy+ GP20FGD White
Multideck With Doors
Item no. 45309
EAN 5708181720384
- Fully automatic, fan assisted cooling
- Internal vertical & horizontal LED light
- Solid 40 mm endwalls with mirrored interior
- Frameless hinged double glazed self closing doors

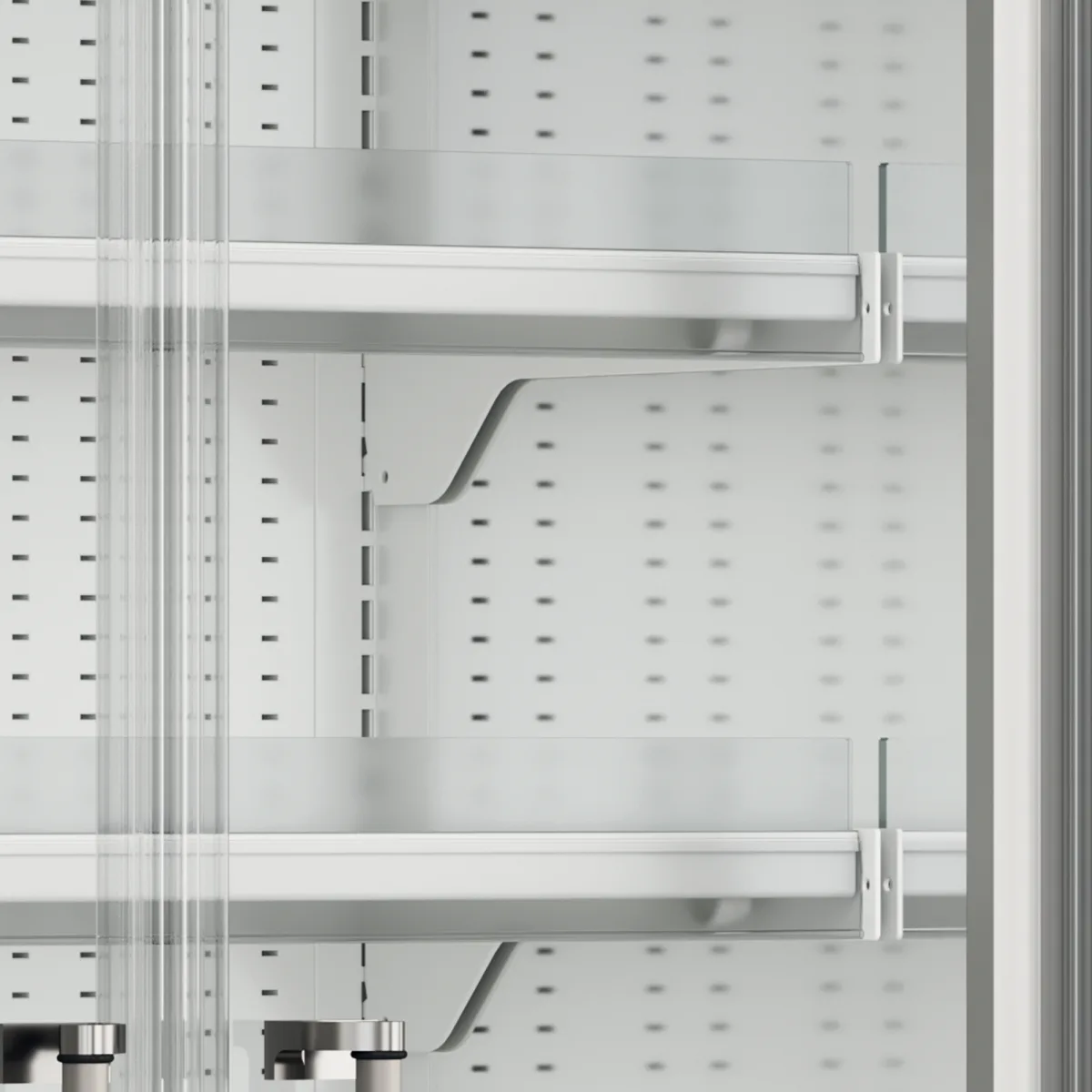

- 5 Adjustable shelves, max weight 160kg/sq metre
- Shelves can be flat or angled to 7° or 14°
- EPOS Ticket strips & shelf risers
- Suitable for fresh meat
- Can be multiplexed with kit (POA)
- Door widths match on G14 & G26 & on G10 & G20
- Delivered without handles and rear stand-offs attached, will fit through 750mm door
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1955 x 750 x 2005 mm
Volume gross / net2165 / 943 l l
Temperature-1 to +5 °C
Weight gross / net470 / 439 kg kg
Energy classB
Specifications
| Gross / Net Weight | 470 / 439 kg |
|---|---|
| 40ft Container Load | 12 pcs |
| GTIN / EAN | 5708181720384 |
| Product Group - Delivery services | Group 4A |
| Gross / Net Volume | 2165 / 943 l |
| Total Display Area | 2.87 m² |
| Temperature Range | -1 to +5 °C |
| Climate Class | 3 |
| Exterior Finish | White RAL9003 |
| Interior Finish | White RAL9003 |
| Door Number & Type | 4 hinged glass doors |
| Door Reversible | No |
| Shelves Number & Type | 10 adjustable |
| Shelf Color | White |
| Shelf Dimensions | 938x400mm |
| Max load on Shelves | 160 kg/m² |
| Feet / Legs | 6 adjustable feet |
| Interior Light | LED |

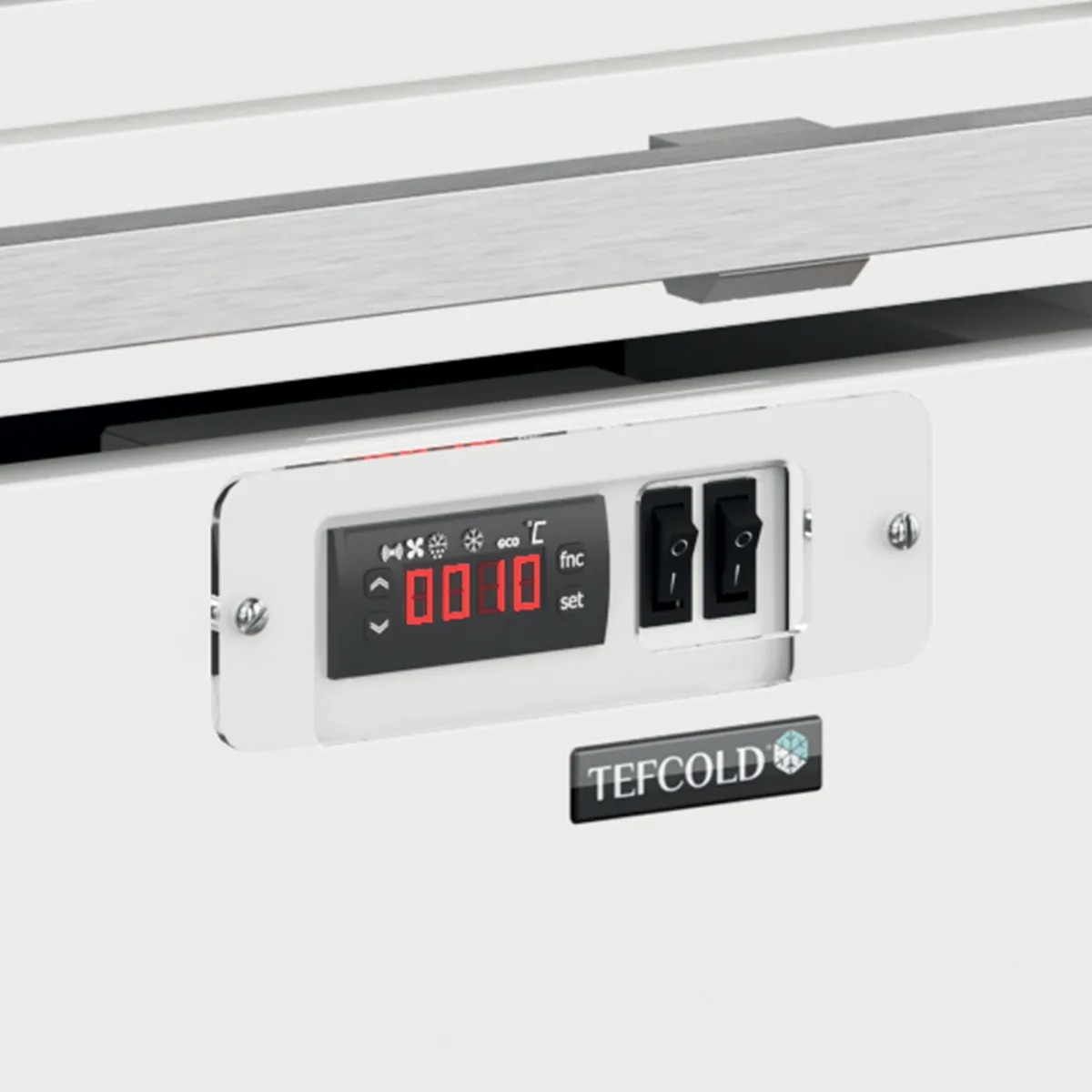

| Type of Controller | Electronic |
| Type of Defrost | Automatic |
| Refrigerant | R290 |
| Refrigerant Charge | 150 g |
| Thermometer | Yes |
| Energy Class | B |
| EPREL No | 1970645 |
| Max Ambient | +25°C, 60% RH |
| Energy Consumption | 5.47 kWh/24h |
| Annual Energy Consumption | 1997 kWh/year |
| EEI | 13.5 % |
| Power | 13 Amp |
| Input Power | 419 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 55 dB(A) |
| External Dimension (WxDxH) | 1955 x 750 x 2005 mm |
| Internal Dimension (WxDxH) | 1875 x 544 x 1562 mm |
| Packed Dimension (WxDxH) | 2000 x 770 x 2320 mm |

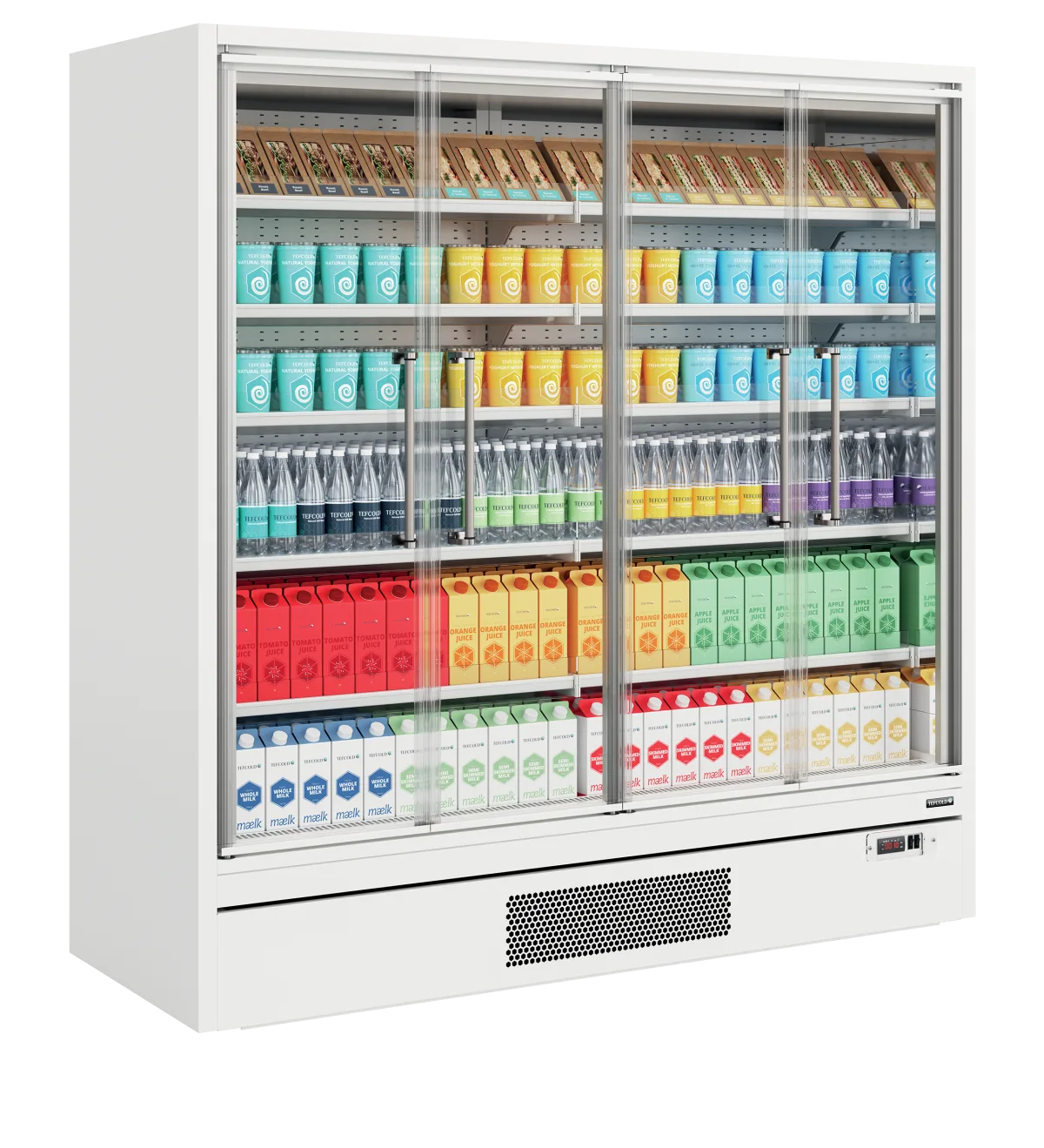

The DKR-PRO Galaxy+ FGD (Full Glass Door) range are part of our popular range of plug-in multidecks. We've combined an expanded display area and optimised cabinet efficiency with frameless, full-vision glass doors, offering enhanced product visibility that captures customers' attention. The ultra-low front and slim top canopy provide an extra 100mm of internal height, accommodating up to 5 shelves (plus base) as standard. With a standard depth, the unit fits through most doors for easy installation, yet has deep shelves for maximum stock capacity. Thanks to the carefully designed refrigeration system and optimal airflow throughout the cabinets, all sizes in this range are rated B for energy efficiency. Each unit comes with heavy-duty adjustable shelves that can be tilted if needed, as well as EPOS ticket strips and shelf risers as standard. Optional extras include glass end-walls and multiplexing kits.
