New E
DKR-PRO

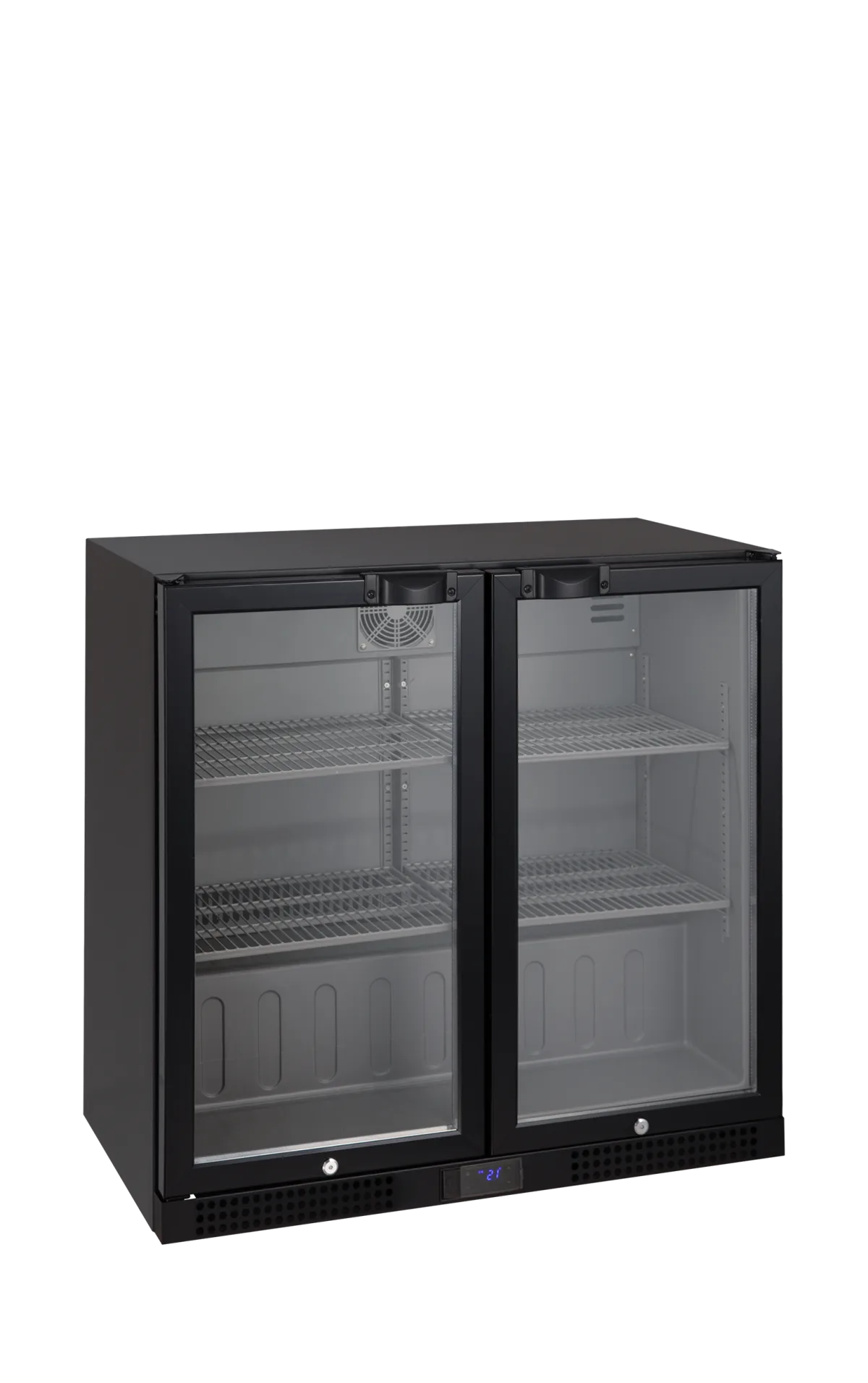

DB202H
Backbar Cooler
Item no. 72603
EAN 5708181764357
- Double glazed tempered glass
- Ventilated cooling for fast pull-down and even temperature
- LED interior light
- Adjustable wire shelves

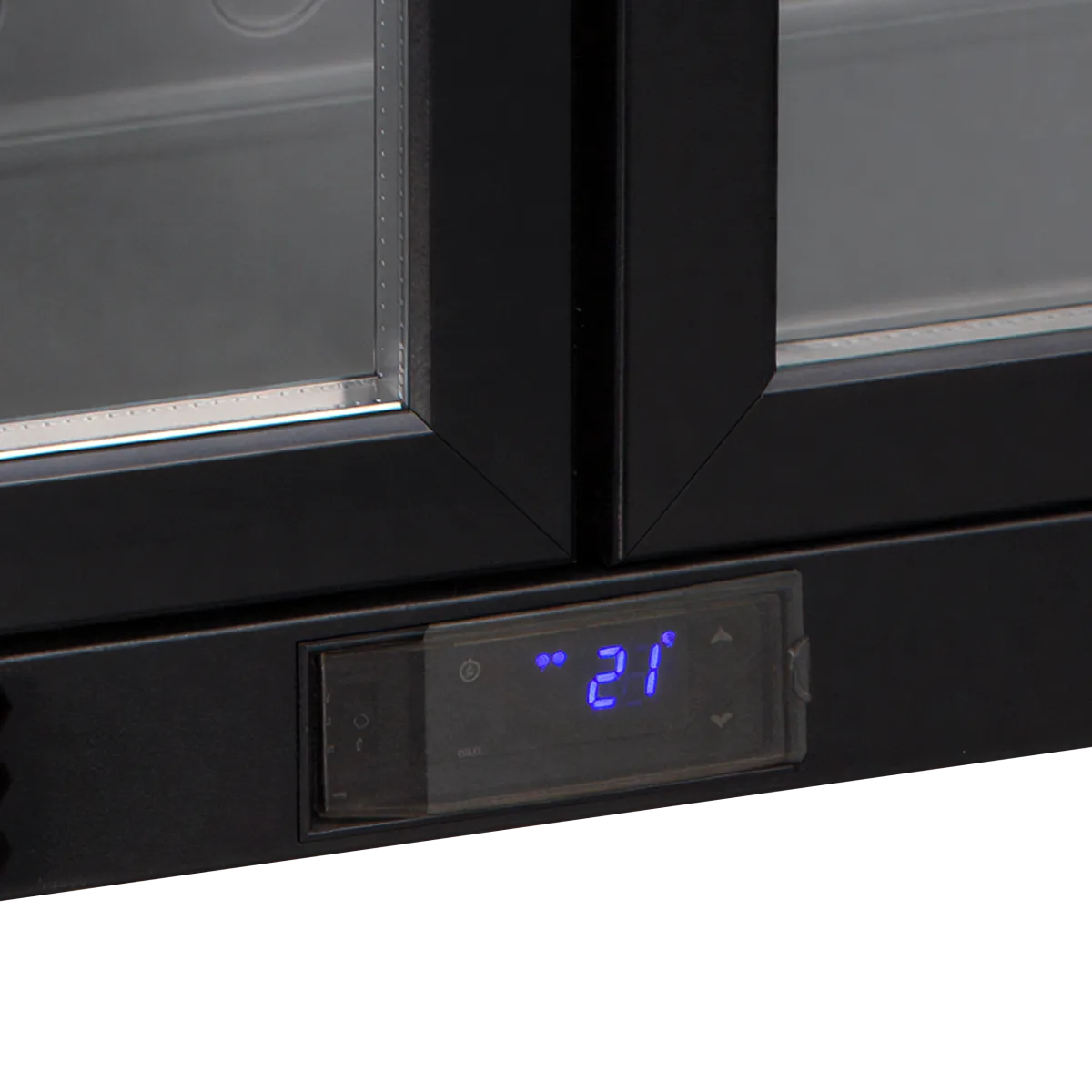

- Easy access electronic thermostat
- Automatic defrost
- Adjustable feet

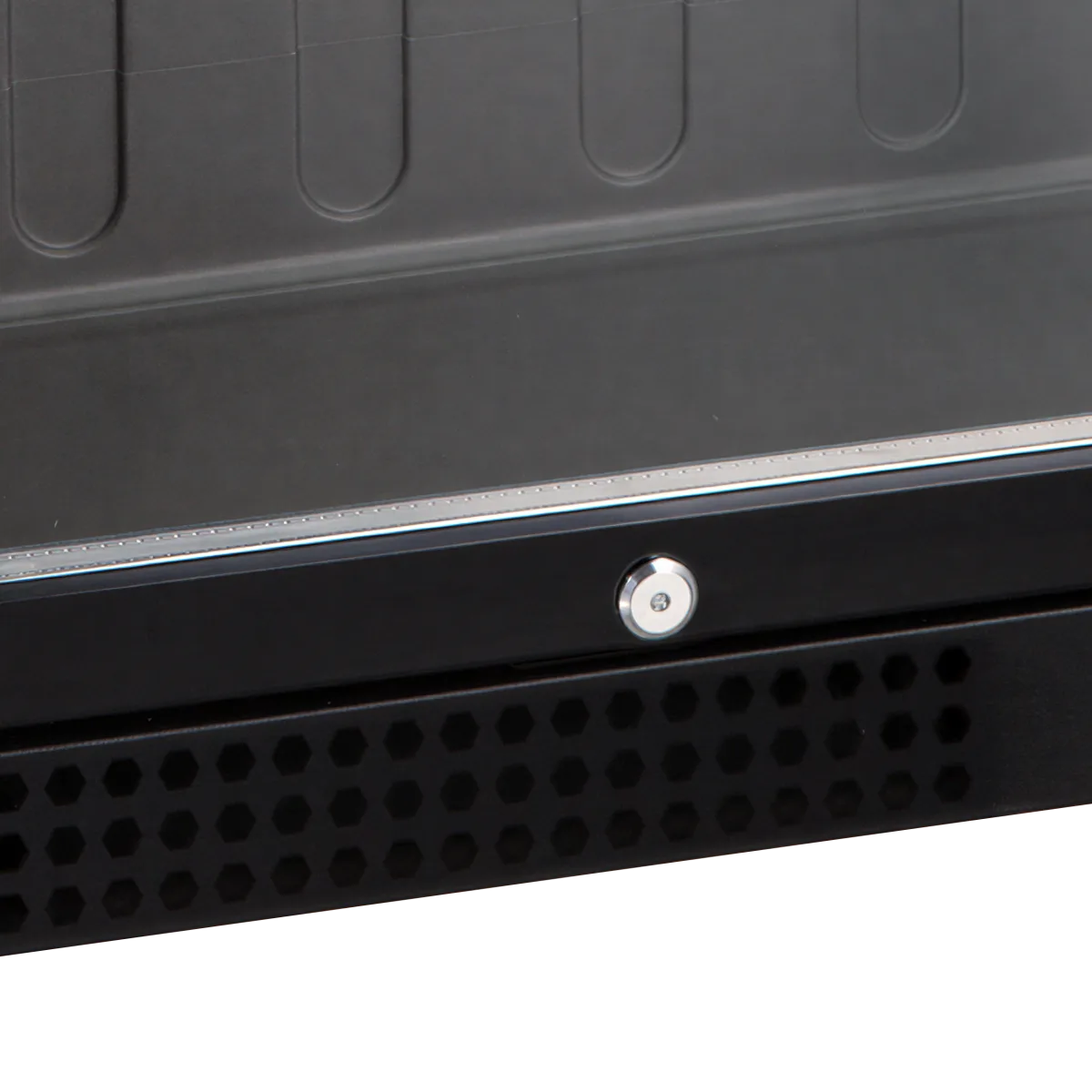

- Lock
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)900 x 520 x 870 mm
Volume gross / net218 / 184.5 l l
Temperature+2 to +10 °C
Weight gross / net69 / 63 kg kg
Energy classD
Specifications
| Gross / Net Weight | 69 / 63 kg |
|---|---|
| 40ft Container Load | 96 pcs |
| GTIN / EAN | 5708181764357 |
| Product Group - Delivery services | Group 1 |
| Bottles 330 ml | 180 pcs |
| Bottles 500 ml PET | 96 pcs |
| Cans 330 ml | 228 pcs |
| Cans 500 ml | 144 pcs |
| Gross / Net Volume | 218 / 184.5 l |
| Total Display Area | 0.256 m² |
| Temperature Range | +2 to +10 °C |
| Insulation Density | 40 kg/m³ |
| Climate Class | 4 |
| Exterior Finish | Black RAL9005 |
| Interior Finish | Grey RAL7037 |
| Door Number & Type | 2 hinged glass door |
| Door Reversible | No |
| Shelves Number & Type | 4 wire shelves grey |
| Shelf Color | Grey |
| Shelf Dimensions | 395x320 mm |
| Max load on Shelves | 230 kg/m² |
| Feet / Legs | 4 adjustable feet |
| Lock | Yes |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic |
| Refrigerant Charge | 40 g |
| Refrigerant | R600a |
| Thermometer | Yes |
| Type of refrigeration | Beverage cooler |
| LightSourceEnergyClass | C |
| Energy Class | D |
| EPREL No | 2716112 |
| Max Ambient | 30°C at 55% RH |
| Annual Energy Consumption | 467.2 kWh/year |
| Energy Consumption | 1.28 kWh/24h |
| EEI | 37.6 % |
| Input Power | 139 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 45 dB(A) |
| External Dimension (WxDxH) | 900 x 520 x 870 mm |
| Internal Dimension (WxDxH) | 810 x 418 x 720 mm |
| Packed Dimension (WxDxH) | 985 x 575 x 940 mm |
Backbar with double glass doors, hinged
The DB range of backbars comes with 1, 2, or 3 doors with double glazed tempered glass. Choose between sliding doors or hinged doors. The backbar cooler has a black exterior, a anthracite interior, and plastic-coated wire shelves for easy maintenance. It has ventilated cooling, easily controlled by an electronic thermostat. Ideal for busy bar environments.
