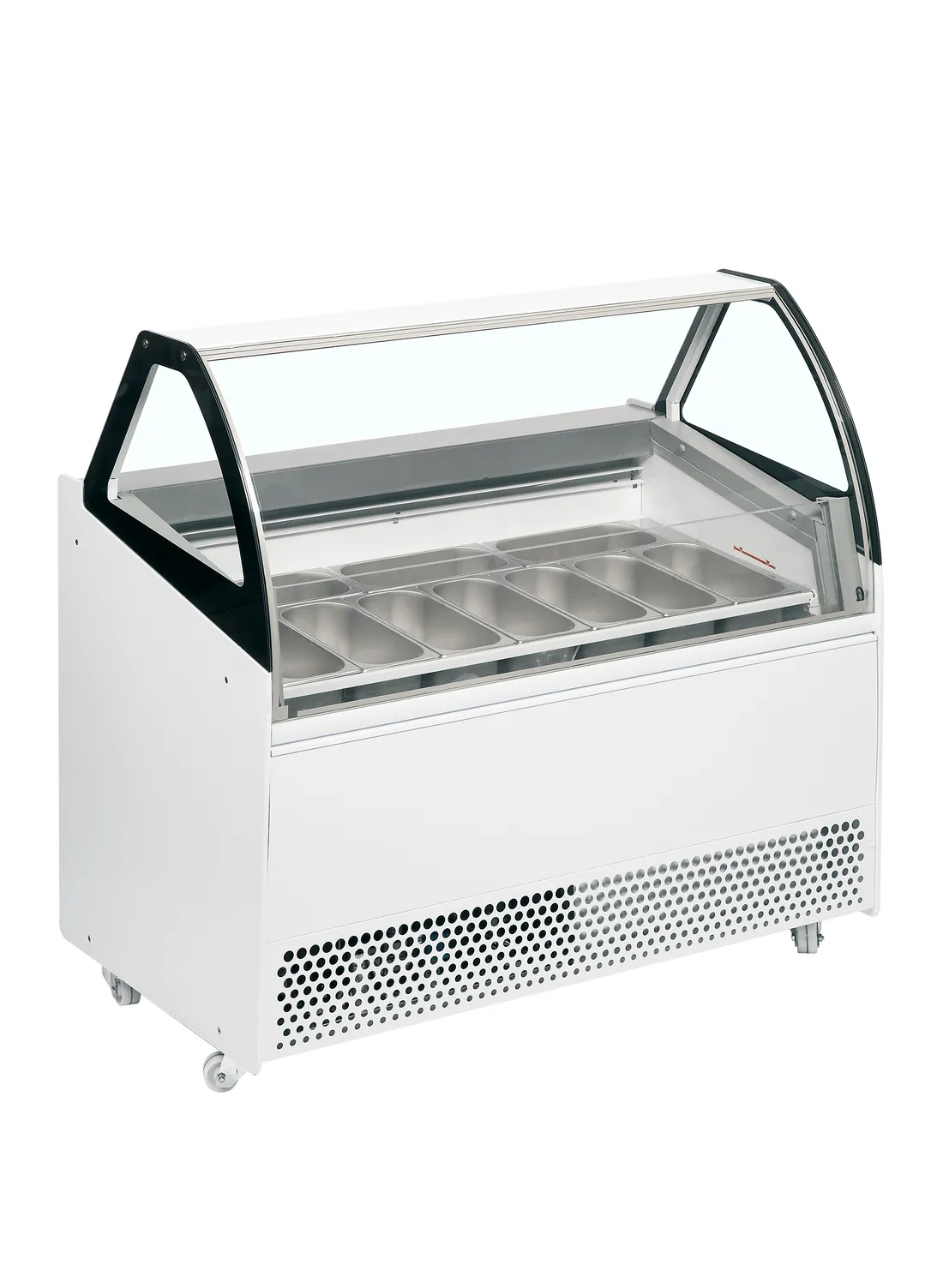

BERMUDA VIEW RV10
Ventilated Scoop Ice Cream Display
Item no. 20357
EAN 5708181212117 Type Ice cream freezer for scoop ice
- High vision display (low front glass)
- Perfect temperature distribution
- Heated glass to help prevent condensation
- Accepts Napoli pans (not supplied)
- LED interior light with switch
- Digital controller and temperature display

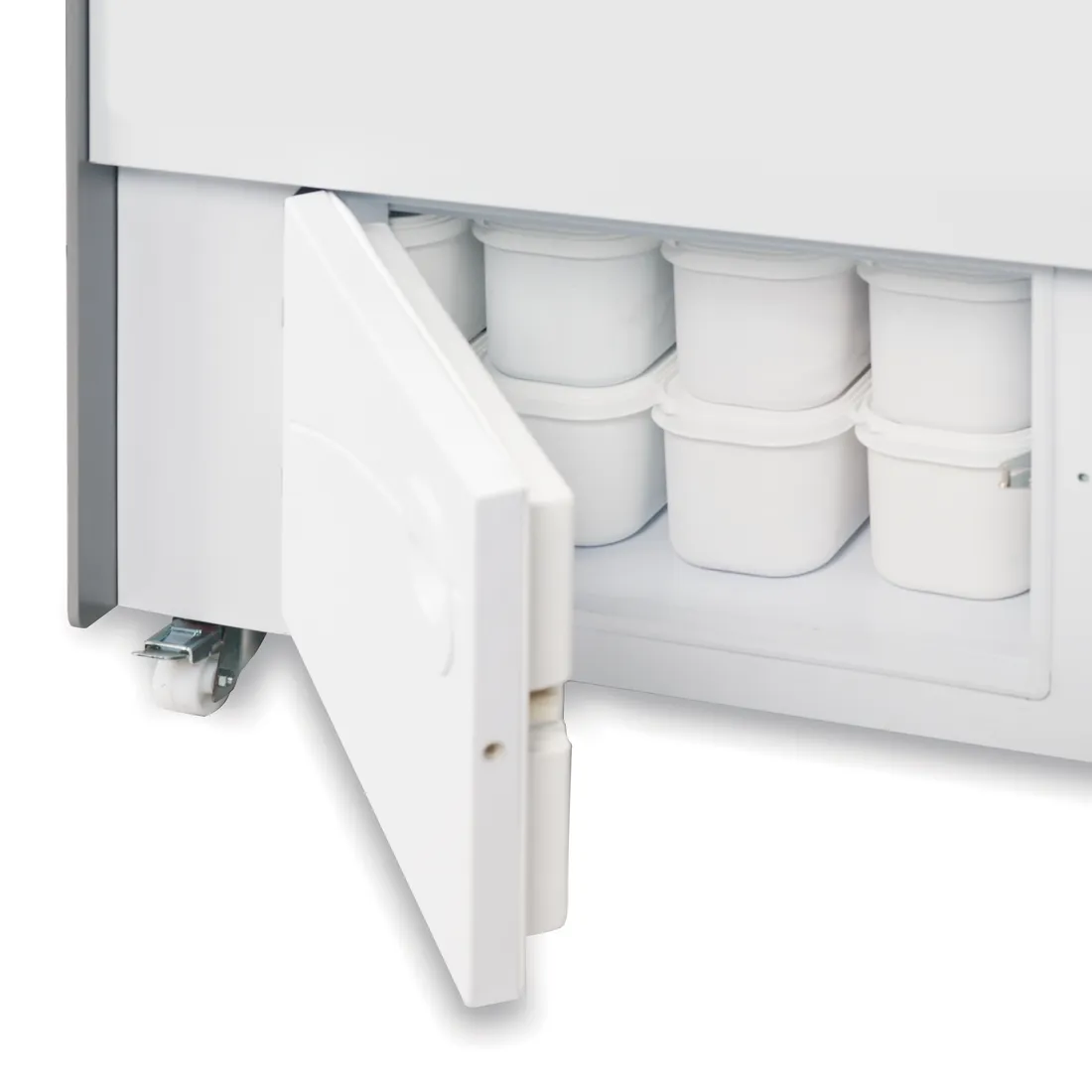

- Easy access understorage
- Rear night curtain to maintain temperature
- Ventilated cooling
- Automatic defrost
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1340 x 814 x 1354 mm
Volume gross / net300 / 255 l l
Temperature-20 to -14 °C
Weight gross / net226 / 195 kg kg
Energy classD
Specifications
| Gross / Net Weight | 226 / 195 kg |
|---|---|
| 40ft Container Load | 16 pcs |
| GTIN / EAN | 5708181212117 |
| Product Group - Delivery services | Group 2 |
| Gross / Net Volume | 300 / 255 l |
| Total Display Area | 0.65 m² |
| Temperature Range | -20 to -14 °C |
| Climate Class | 7 |
| Exterior Finish | White |
| Interior Finish | White |

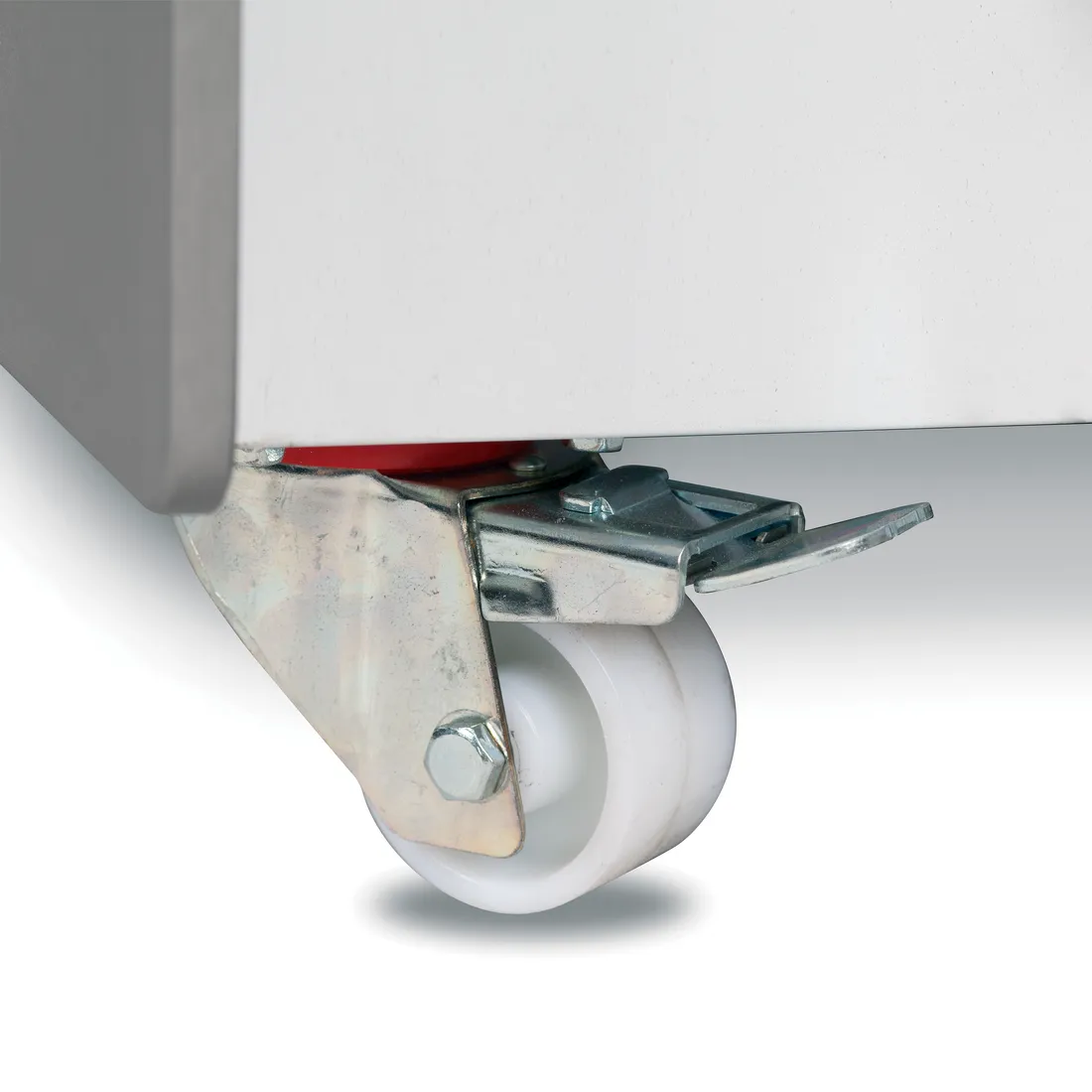

| Castors | 4 castors |
| Lock | No |
| Interior Light | LED |
| Type of Controller | Electronic |
| Type of Cooling | Ventilated |
| Type of Defrost | Automatic, hot gas |
| Refrigerant | R290 |
| Refrigerant Charge | 195 g |
| Thermometer | Yes |
| Energy Class | D |
| EPREL No | 552961 |
| Max Ambient | +35°C, 75% RH |
| Energy Consumption | 22 kWh/24h |
| Annual Energy Consumption | 8030 kWh/year |
| EEI | 49.3 % |
| Power | 13 Amp |
| Input Power | 1250 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 56 dB(A) |
| External Dimension (WxDxH) | 1340 x 814 x 1354 mm |
| Internal Dimension (WxDxH) | 1200 mm |
| Packed Dimension (WxDxH) | 1410 x 860 x 1455 mm |
| Serving Capacity | / 10 Napoli Pans (5L) |
| Storage Capacity (under) | / 10 Napoli Pans (5L) |
Ventilated 10 scoop ice cream display with under-storage with low front glass
The act of buying ice cream is a visual experience that can be enhanced by providing customers with a clear view of the available options. The Bermuda View cabinet has been designed to improve this experience by lowering the front glass, making the display more visible to both adults and children. Additionally, the unit includes ventilated cooling to maintain a consistent temperature throughout the display, preserving the quality and flavour of the ice cream or gelato. The refrigerated under-storage allows for quick access to additional stock during peak periods, while the heated glass prevents condensation and the castors make the unit easy to move. Finally, the internal LED lighting adds a beautiful illumination to the ice cream, making the Bermuda View a versatile cabinet that can maximise sales for businesses.
