DKR-PRO

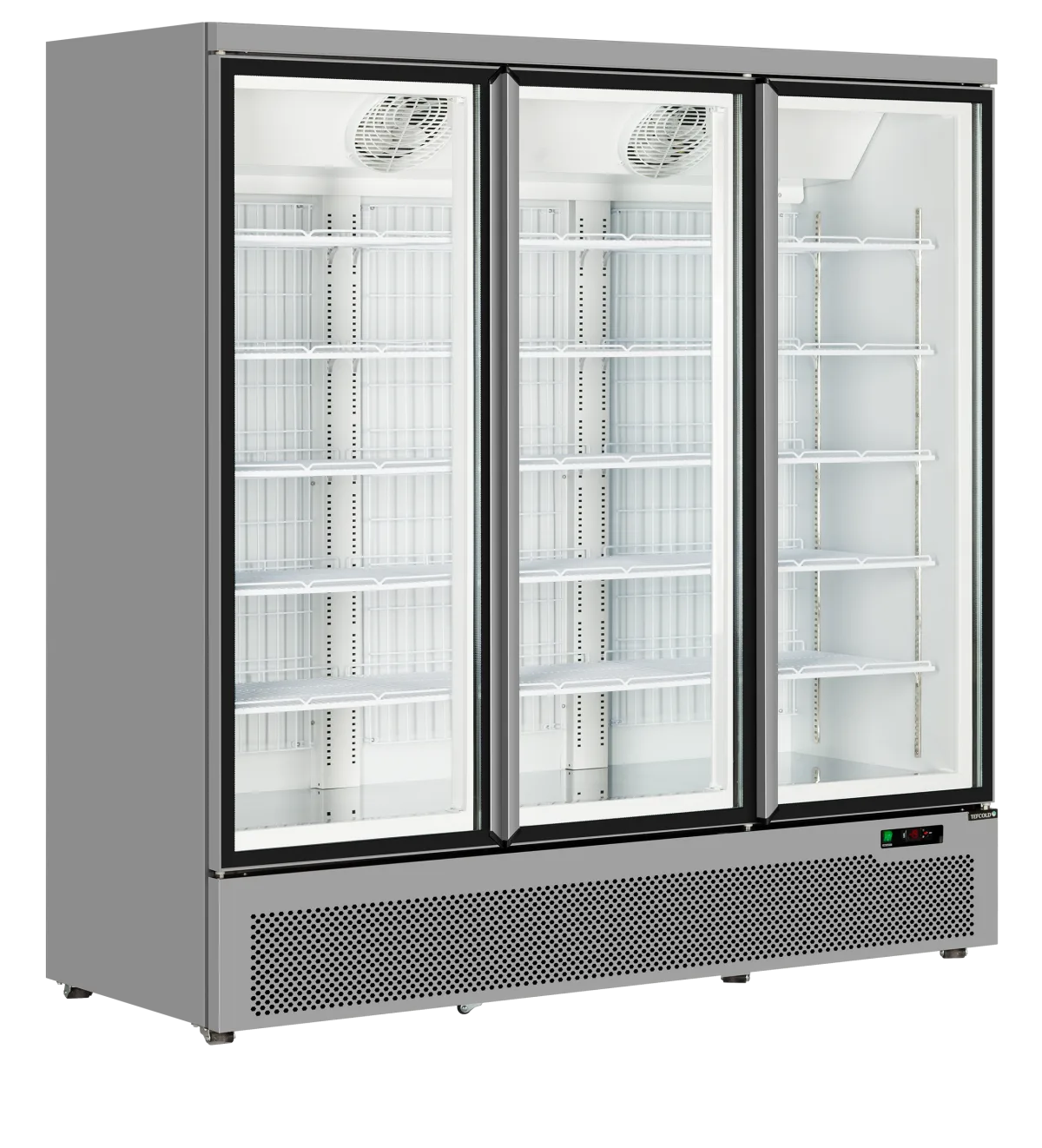

Atom Maxi F3DS
Display Freezer
Item no. 49819
EAN 5708181733445
- Perfect display for frozen foods
- Low energy consumption
- Hinged glass doors
- Heated glass to help prevent condensation
- Triple glazed insulated glass
- Self-closing doors

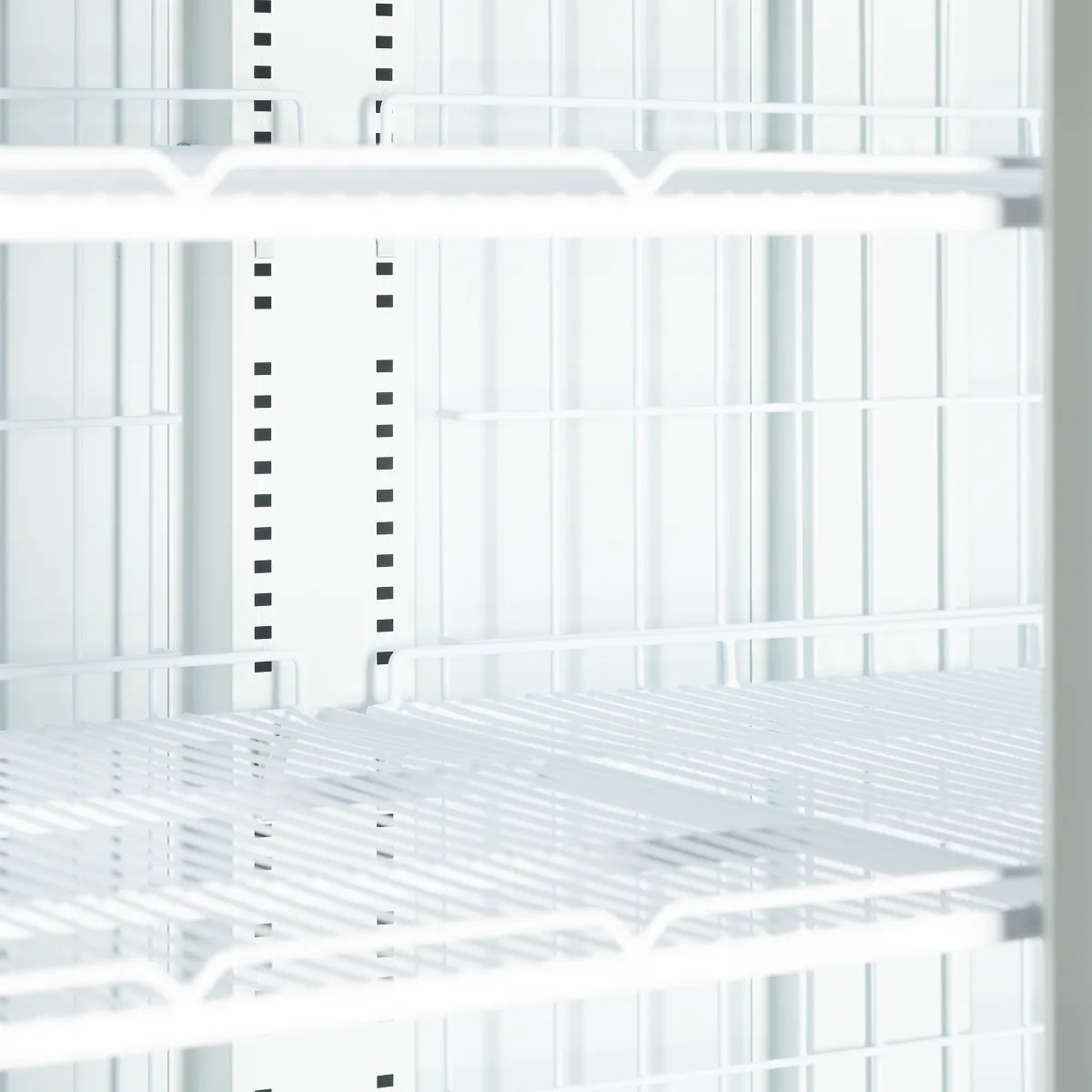

- Adjustable shelves
- Vertical LED interior light with switch
- Ventilated cooling

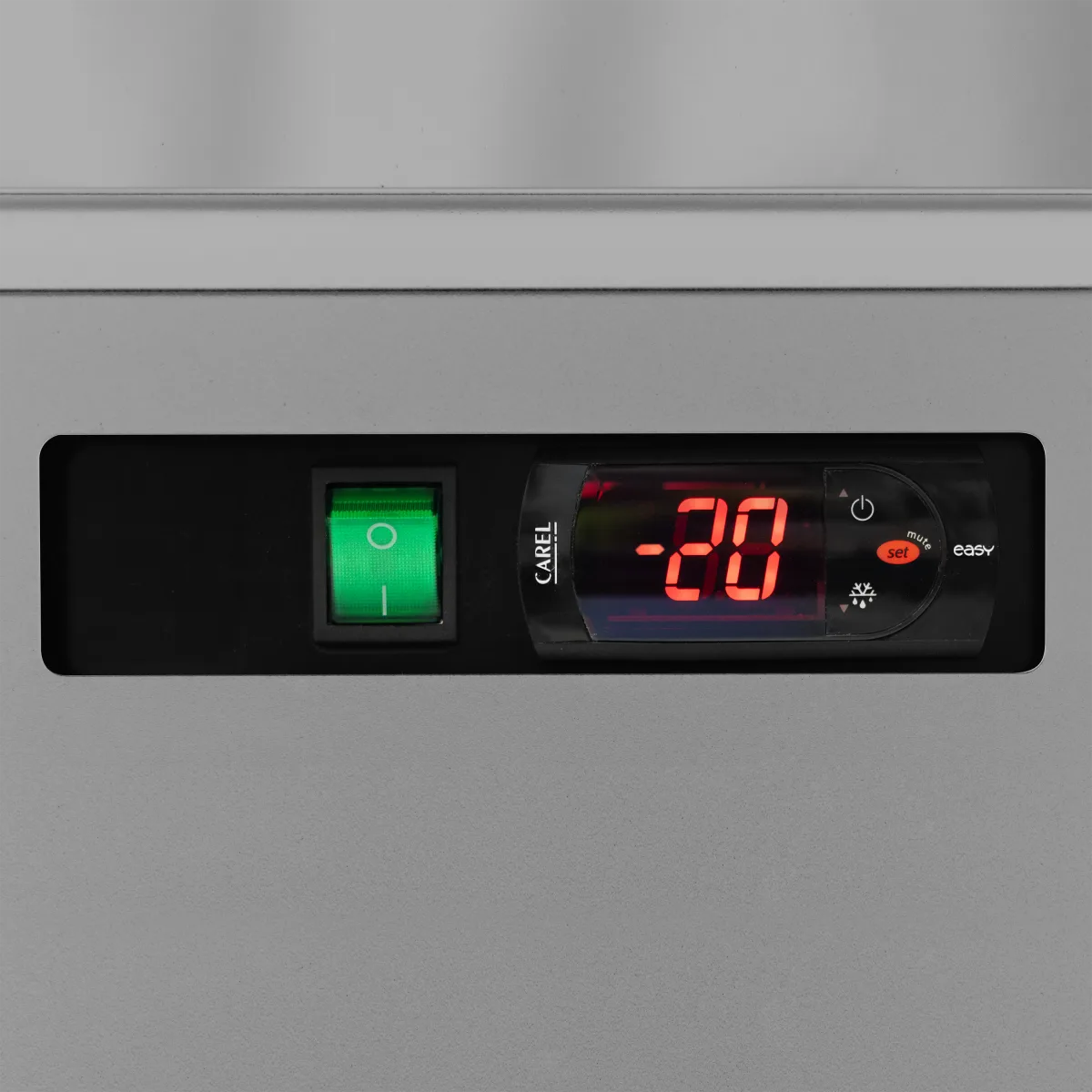

- Digital controller and temperature display
- Castors
- Chiller Option Available
Ordering several units or fitting out a full site? Ask for a volume quote.
Dimensions (W x D x H)1880 x 760 x 2003 mm
Volume gross / net1563 / 1090 l l
Temperature-18 to -22 °C
Weight gross / net355 / 305 kg kg
Energy classD
Specifications
| Gross / Net Weight | 355 / 305 kg |
|---|---|
| Gross / Net Volume | 1563 / 1090 l |
| Temperature Range | -18 to -22 °C |
| Exterior Finish | Silver RAL9006 |
| Interior Finish | White RAL9003 |
| Door Number & Type | 3 hinged glass doors |
| Door Reversible | No |
| Shelves Number & Type | 15 adjustable |
| Shelf Dimensions | 551 x 470 mm ; 624 x 470 mm |
| Max load on Shelves | 140 kg/m² |
| Type of Controller | Electronic |
| Type of Defrost | Automatic |
| Refrigerant | R290 |
| Refrigerant Charge | 2 x 95 g |
| Max Ambient | +25°C, 60% RH |
| Input Power | 1280 W |
| Voltage / Frequency | 220-240/50 V/Hz |
| Noise Level | 70 dB(A) |
| External Dimension (WxDxH) | 1880 x 760 x 2003 mm |
| Internal Dimension (WxDxH) | 1760 x 580 x 1538 mm |
| Packed Dimension (WxDxH) | 1905 x 780 x 2090 mm |
| 40ft Container Load | 18 pcs |
| GTIN / EAN | 5708181733445 |
| Product Group - Delivery services | Group 4 |
| Total Display Area | 2.09 m² |
| Climate Class | 3 |
| Shelf Color | White |
| Castors | 6 castors |
| Lock | Yes |
| Interior Light | LED |
| Type of Cooling | Ventilated |
| Thermometer | Yes |
| Energy Class | D |
| EPREL No | 1556645 |
| Energy Consumption | 23.84 kWh/24h |
| Annual Energy Consumption | 8702 kWh/year |
| EEI | 45.3 % |
| Power | 2 x 13 Amp |

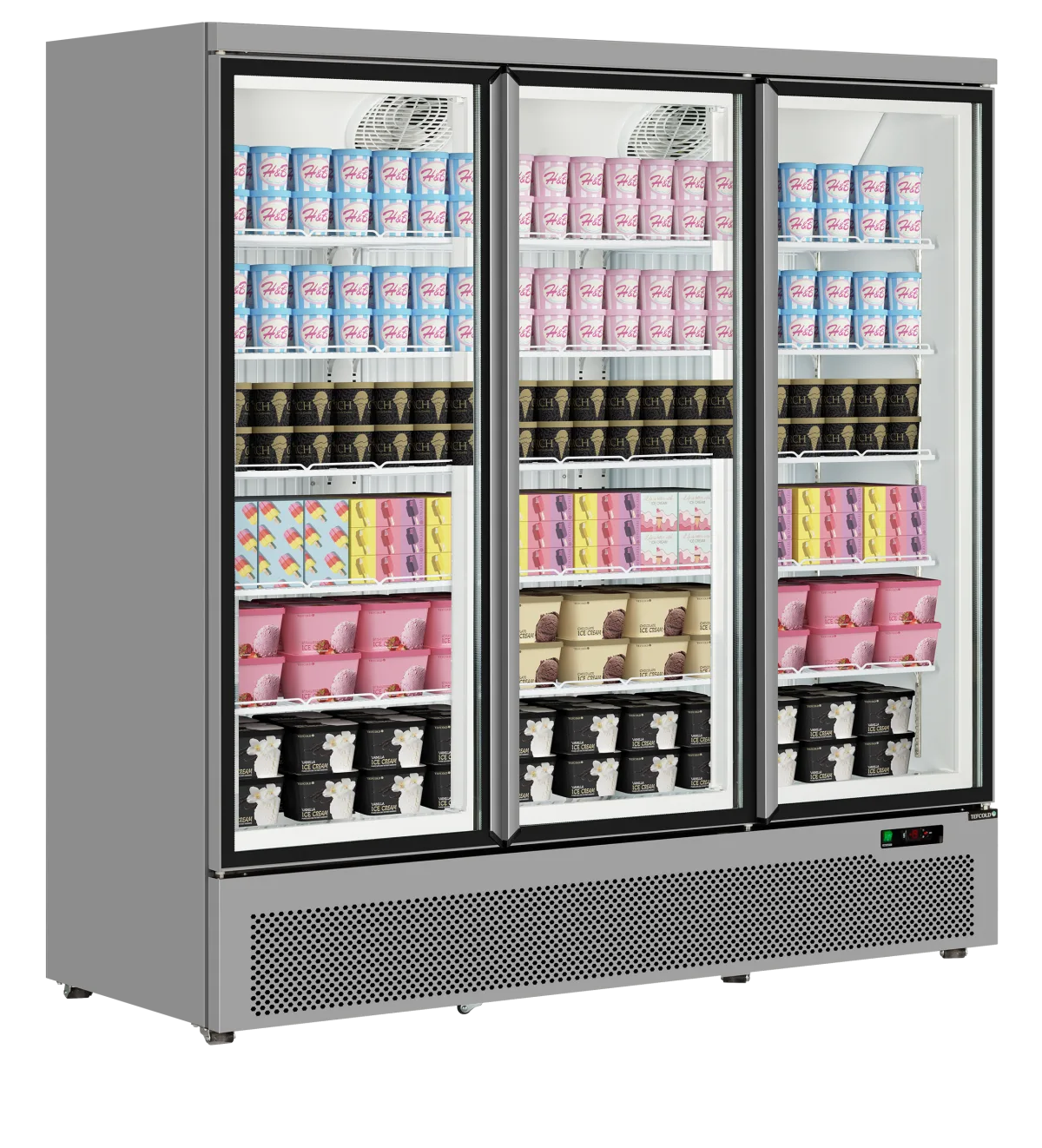

The Atom Maxi range of glass door freezers is available in 1 to 3 door options. Edge to edge "frameless" self closing glass doors together with excellent storage capacity make it ideal for all types of frozen food display. The canopy-less design makes it a favourite choice for shopfitters in convenience stores, delis and butchers where a frozen selection gives customers extra choice. A fully automatic refrigeration system ensures the unit will not ice up under normal conditions, while vertical LED lighting on the interior help present the produce to customers in the best light. The Atom Maxi provides a competitively priced solution to introduce frozen food to your customers. Matching chiller option available .
